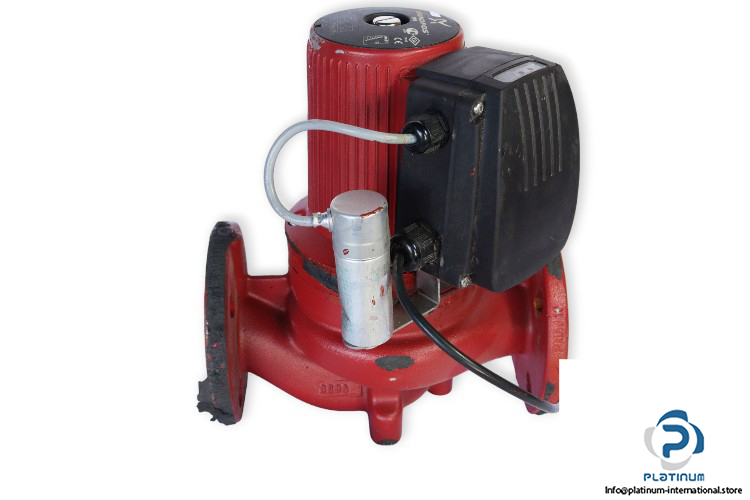

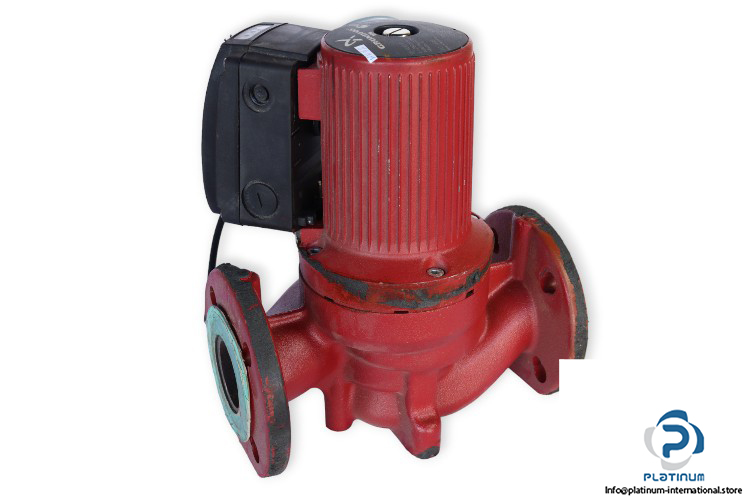

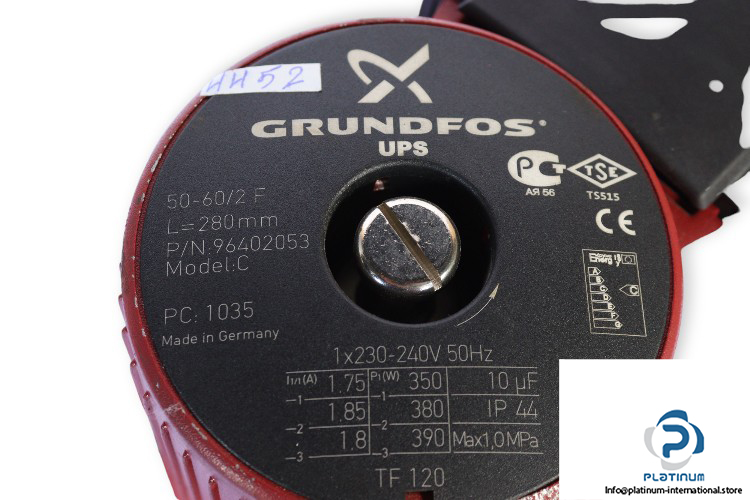

Grundfos UPS 50-60/2 F 280 Circulator Pump

Manufacturer: GRUNDFOS
Type: Circulator Pump
Model: C
Part No.: 96402053
MNR: UPS 50-60/2 F 280

Speed No.: 3
Rated Flow: 14.45 m³/h
Material of Pump housing: Cast iron
Material of Impeller: Stainless steel
Range of ambient temperature: 0 … 40°C
Maximum operating pressure: 10 bar
Type of connection: DIN
Size of connection: 52 mm
Port-to-port length: 280 mm
Pumped liquid: Water
Density: 938.2 kg/m³liquid temperature: -10 … 120°C
Maximum power input – Speed 2: 390 W
Mains frequency: 50 Hz
Rated voltage:1 x 230 -240 V
Current consumption in Speed 1: 1.75 A
Current consumption in Speed 2: 1.85 A
Current consumption in Speed 3: 1.8 A
Capacitor size – run: 10 µF/400 V
No. of Poles: 2
