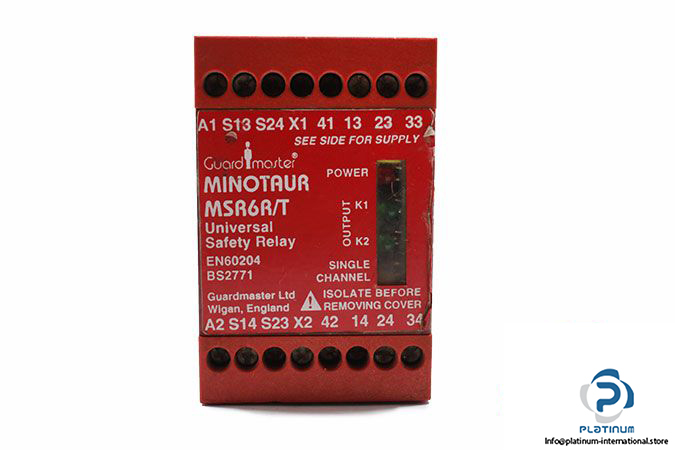

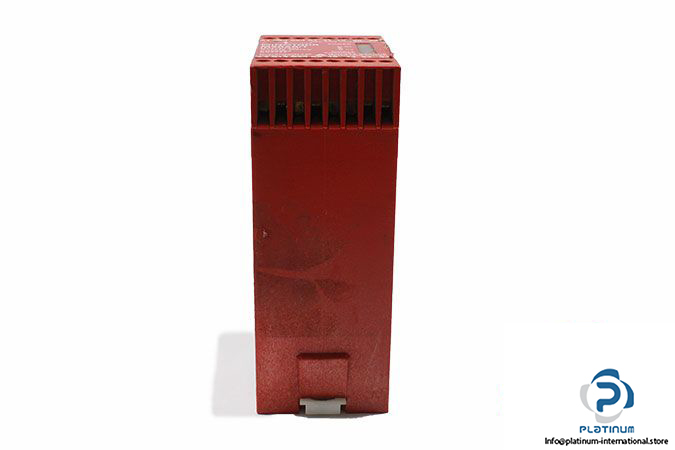

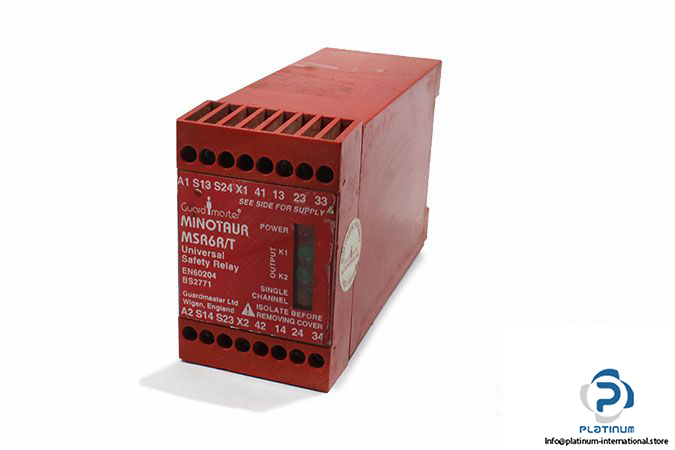

Guardmaster MSR6R/T Monitoring Safety Relay

Manufacturer: GUARDMASTER

Type: Monitoring Safety Relay

Model: MSR6R/T

Power Supply: 24 V AC/DC, 110 V or 230 VAC

Frequency: 50/60Hz

Power Consumption: <4 VA
Safety Inputs: 2 N.C.

Input Simultaneity: 0.5 seconds

Max. Input Resistance: 500 Ω

Reset: Monitored Man. or Auto./Man.

Outputs: 3 NO Safety; 1 NC Auxiliary

Thermal Current: 4 A

Pollution Degree: 3

Min. Switched Current/Voltage: 10 mA / 10 V

Max. Dropout Time: 50 ms

Enclosure / Terminal Protection: IP40 / IP20

Dimensions: 45.5 X 120 X 73 mm

Weight: 0.5 Kg
