Hager HA402 Main Switch
Neu
Auf Lager3 EinheitenVersandbereit
Hager Hauptschalter / Lasttrennschalter HA402 mit 4 Polen, 40 A thermischer Stromstärke und Nennstrom von 40 A @ 400 V (AC22A). Entwickelt zur Einhaltung der IEC947-3 Normen für effizientes Lasttrennen und Schalten.
440aAC22AAC23ABreakBreakerCircuitCurrentElectricalHagerIEC947-3LoadMainPolesProtectionRatedSwitchThermal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

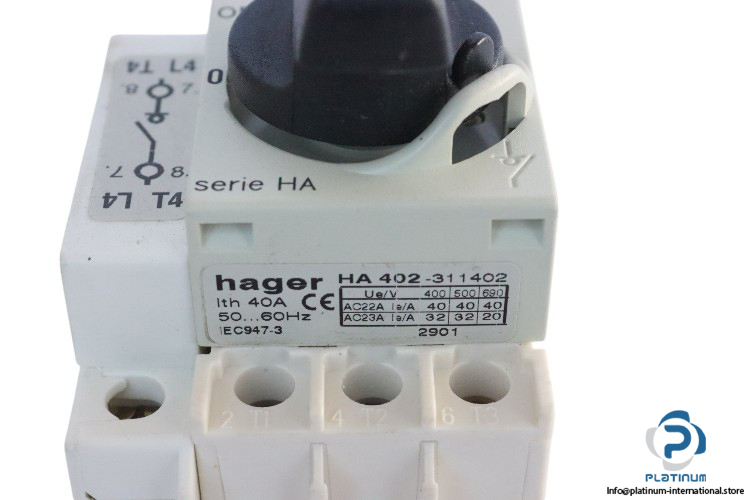

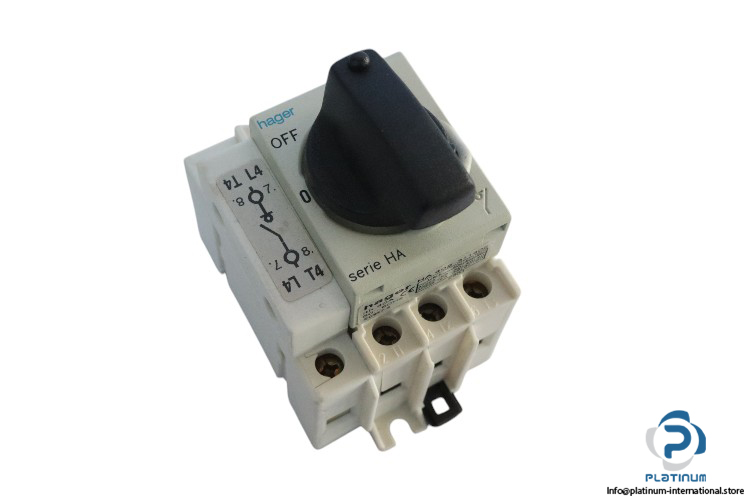

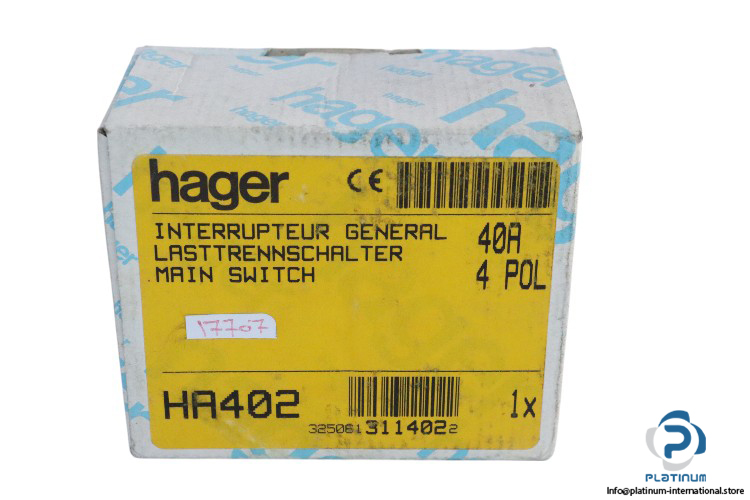

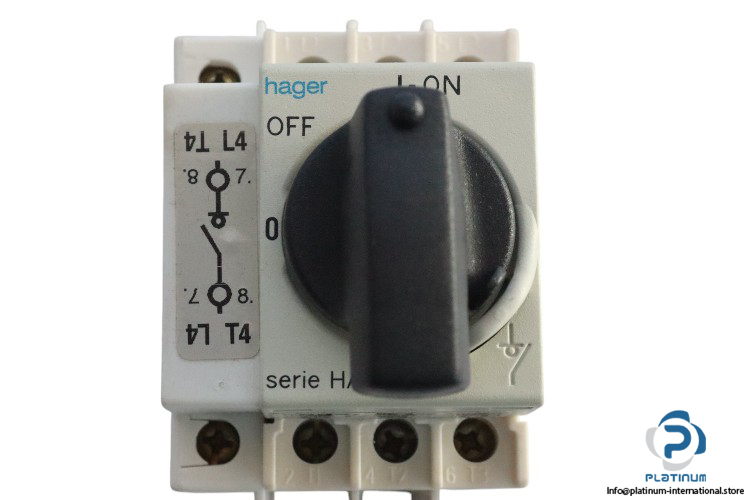

Hager Main Switch / Load Break Switch HA402
Hager Main Switch / Load Break Switch HA402 is a reliable and durable component designed for efficient load breaking and switching in industrial applications. With high current ratings and compliance with IEC947-3 standards, it offers superior protection for electrical circuits in both residential and commercial settings.
- Manufacturer: Hager
- Type: Main Switch / Load Break Switch
- Model: HA402
- Part No.: 311402
- Series: HA
Technical Data:
- Number of Poles: 4
- Thermal Current (Ith): 40 A
- Rated Current Ie (AC22A): 40 A @ 400 V
- Rated Current Ie (AC23A): 32 A @ 400 V
- Frequency: 50 to 60 Hz
- Standard: IEC947-3
