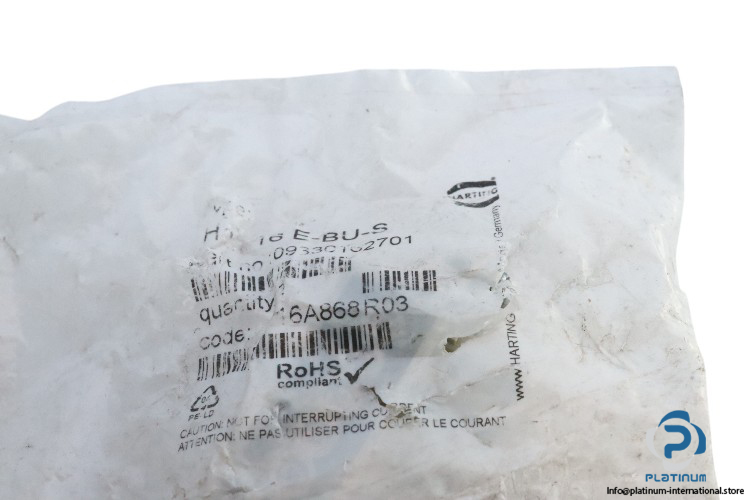

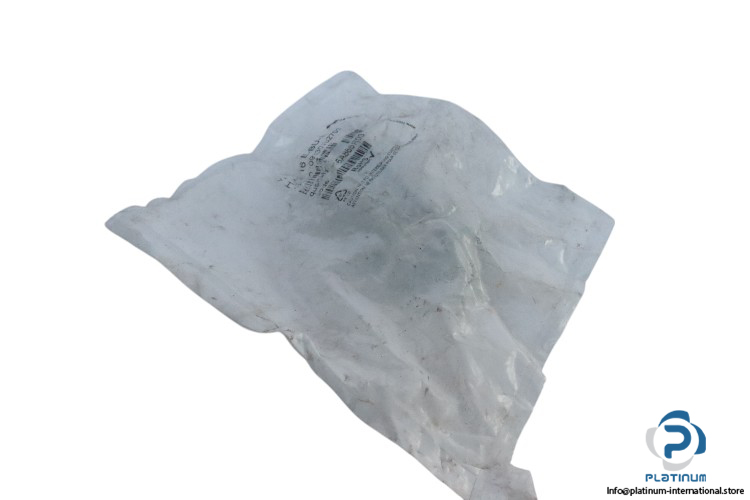

Harting HAN 16 E-BU-S Connector
Der Harting HAN 16 E-BU-S Stecker bietet zuverlässige Verbindungen mit einem Nennstrom von 16 A und einer Nennspannung von 500 V. Er verfügt über einen Polycarbonateinsatz und ist ideal für industrielle Anwendungen.
Product Overview
Manufacturer: Harting
Type: Connector
Model: HAN 16 E-BU-S
The Harting HAN 16 E-BU-S Connector is part of the renowned Han E® series, known for its reliability and durability in various industrial applications. This female connector is designed to withstand high electrical stresses, with a rated current of 16 A and a rated voltage of 500 V. It features a robust polycarbonate insert, ensuring long-lasting performance and excellent insulation properties.
Key Specifications:
- Series: Han E®
- Rated Current: 16 A
- Rated Voltage: 500 V
- Rated Impulse Voltage: 6 kV
- Pollution Degree: 3
- Insulation Resistance: 1010 Ohm
- Contact Resistance: 1 mOhm
- Stripping Length: 7.5 mm
- Tightening Torque: 0.5 Nm
- Termination Method: Screw termination
- Gender: Female
- Size: 16 B
- Number of Contacts: 16
- Conductor Cross-Section: 0.75 … 2.5 mm²
- Material (Insert): Polycarbonate (PC)
- Limiting Temperature: -40 … +125 °C
This high-performance connector is perfect for ensuring safe and efficient power and signal connections in a wide range of industrial environments.
