Hartmann + Lammle WE07-12P100 Directional Control Valve
150,00$
Richtungssteuerventil HARTMANN + LAMMLE WE07-12P100 4/3-Wege-Richtungssteuerventil, NG 4 ISO 4401, elektrisch betätigt mit 24 VDC Magnetspule. Unterstützt einen Betriebsdruck von bis zu 315 bar und verfügt über einen 100% Einschaltdauer für kontinuierlichen hydraulischen Betrieb.

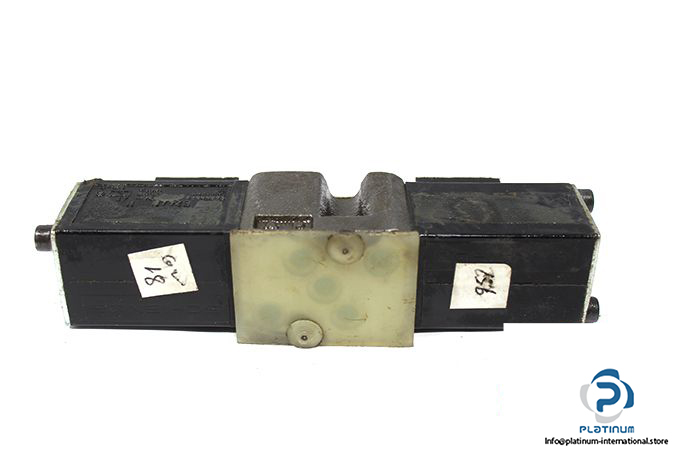

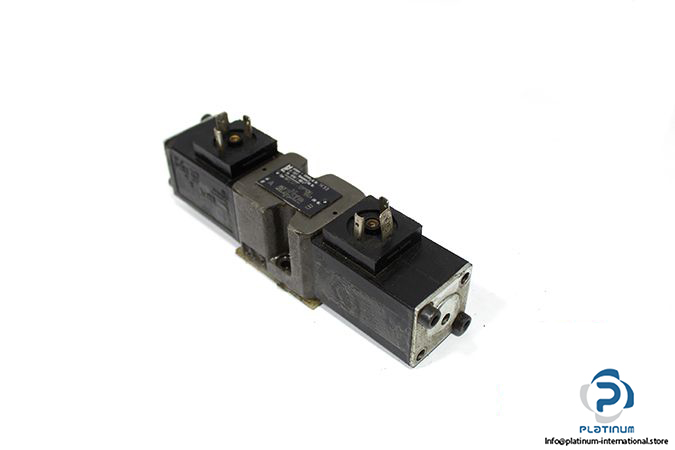

HARTMANN + LAMMLE WE07-12P100 Directional Control Valve
The HARTMANN + LAMMLE WE07-12P100 is an electrically actuated directional control valve designed for hydraulic systems requiring reliable flow control and high-pressure performance. Built to ISO standards, this valve ensures precise switching and stable operation under demanding industrial conditions.
Manufacturer: HARTMANN + LAMMLE
Type: Directional Control Valve
Model: WE07-12P100
Id No.: 1233
Ltd No.: 9950
Solenoid Coil Information
| Valve Size | NG 4 |
| Mounting Standard | ISO 4401 |
| Function | 4 / 3 Way Valve |
| Maximum Pressure Port P, A, B | 315 bar |
| Maximum Pressure Port T | 150 bar |
| Type of Actuation | Electrically |
| Hydraulic Temperature Range | -10 to +70 °C |
| Hydraulic Connection | Mounting Plate |
| Coil Type | HARTMANN + LAMMLE E24/0 H |
| Voltage | 24 VDC |
| Power | 25.5 W |
| Duty Factor | 100% |
