Hydraulic System Hydraulic Valves Pressure Control Valves

Hawe MVE5B Pressure Limiting Valve

Name: HAWE MVE5B PRESSURE LIMITING VALVE
SKU: 1095161
Availability: LimitedAvailability

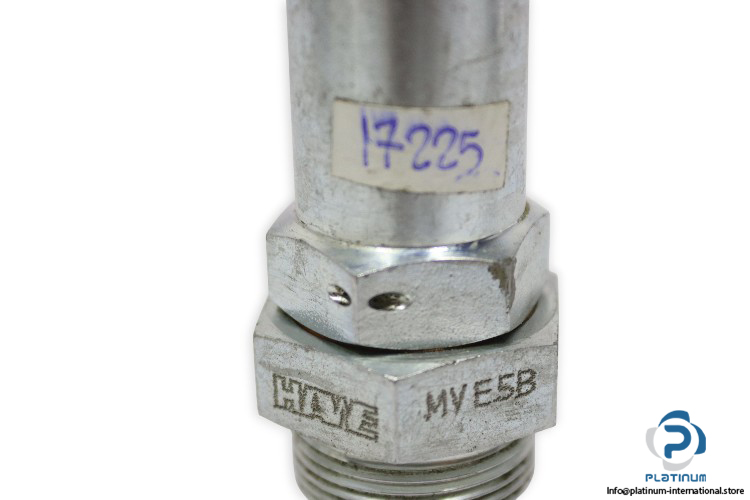

hawe-MVE5B-pressure-limiting-valve(used)

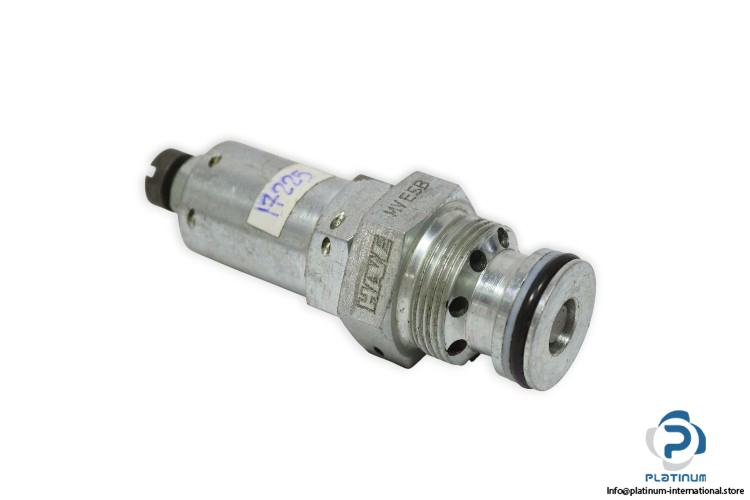

hawe-MVE5B-pressure-limiting-valve(used)-1

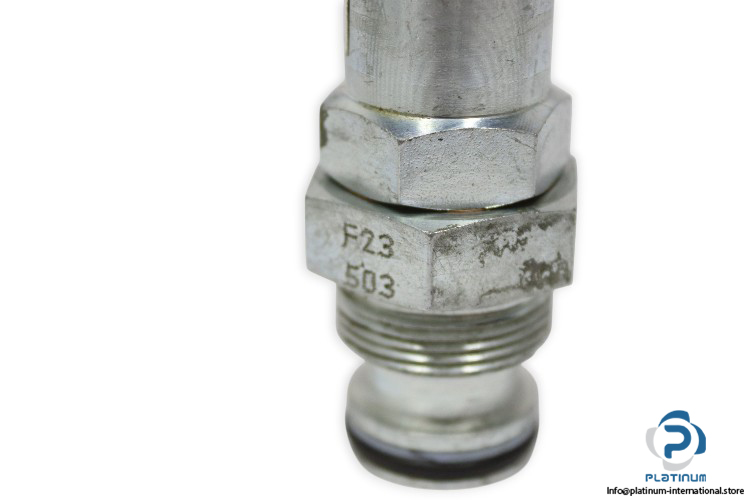

hawe-MVE5B-pressure-limiting-valve(used)-2

Gebraucht

Auf Lager1 EinheitVersandbereit

Druckbegrenzungsventil HAWE MVE 5 B Druckbegrenzungsventil mit konussitzendem Design, Stahlkonstruktion und einem Betriebsdruck von bis zu 700 bar für Hydraulikölsysteme.

Hersteller

HAWE

SKU

1095161

Kategorie

Pressure Control Valves

Zustand

Gebraucht

cone Hawe High Hydraulic Industrial Limiting MVE Pressure Seated Series Steel Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

HAWE MVE 5 B Pressure Limiting Valve

The HAWE MVE 5 B is a high-performance pressure limiting valve designed for hydraulic systems operating under extreme pressure conditions. With a robust steel construction and cone-seated valve design, it ensures precise pressure control, high reliability, and long service life in demanding industrial environments.

Manufacturer: HAWE

Type: Pressure Limiting Valve

Model: MVE 5 B

Code: F23 503

Series	MVE
Fluid	Oil
Size	5
Material	Steel
Design	Cone-Seated Valve
Ambient Temperature Range	approx. -40 to +80 °C
Maximum Operating Pressure (pmax)	700 bar
Maximum Flow Rate (Qmax)	8 lpm
Connection	G3/4
