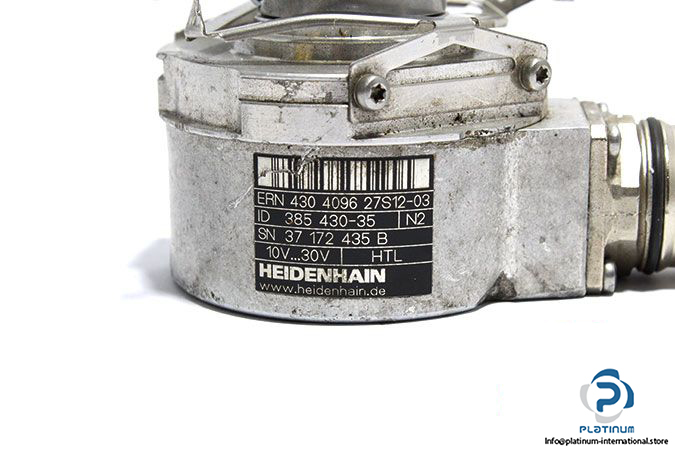

Heidenhain ERN 430 4096 27S12-03 Incremental Rotary Encoder
450,00$
INKREMENTALER DREHGEGEBER Heidenhain ERN 430 4096 27s12-03 bietet hochpräzises Feedback mit 4096 Linienzählungen, einer 10 mm blinden Hohlwelle und HTL-Schnittstelle. Arbeitet bis zu 6000 U/min mit 300 kHz Ausgangsfrequenz.
HEIDENHAIN ERN 430 4096 27s12-03 INCREMENTAL ROTARY ENCODER
The Heidenhain ERN 430 4096 27s12-03 is a precision-engineered incremental rotary encoder designed for accurate position feedback in industrial automation systems. Built for high reliability and performance, this encoder ensures precise signal transmission even at high speeds and demanding conditions.
Manufacturer: Heidenhain
Type: Incremental Rotary Encoder
Model: ERN 430 4096 27s12-03
Part No.: 385 430-35
Serial No.: 37 172 435 B
| Shaft Type | Blind hollow shaft |
| Shaft Diameter | 10 mm |
| Speed | Max. 6000 rpm |
| Line Counts | 4096 |
| Output Frequency | Max. 300 kHz |
| Voltage Supply | 10 V to 30 V DC |

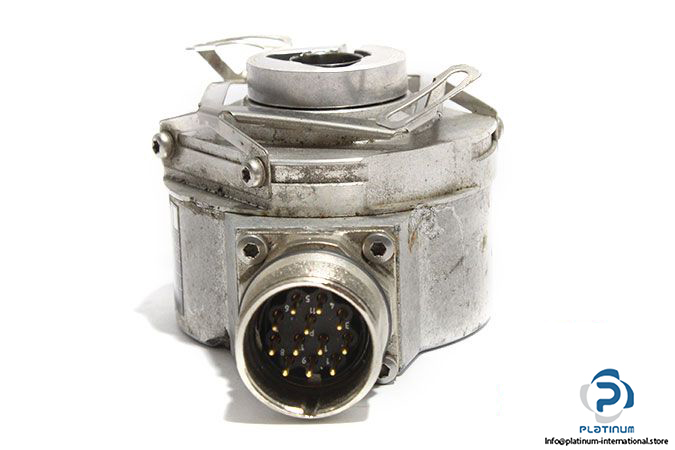

| Electrical Connection | Connector M23 Radial 12-pin |
| Interface | HTL |
| Max Operating Temperature | 100 °C |
