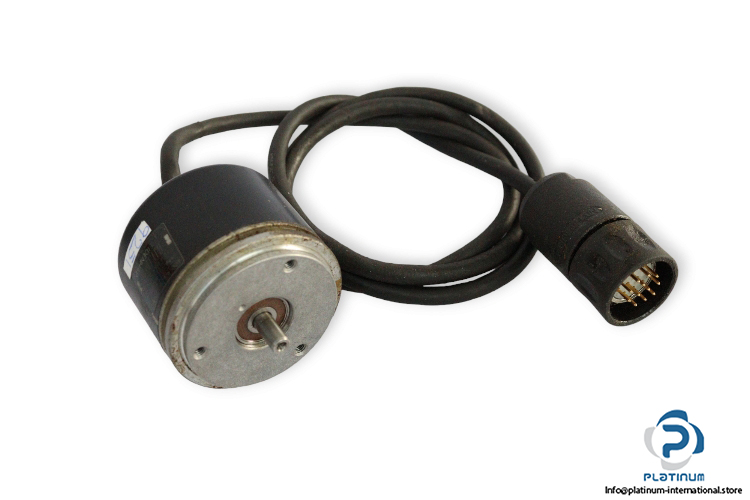

Heidenhain ROD 426.0003-1000 Rotary Incremental Encoder
Rotations-inkrementaler Encoder Heidenhain ROD42600031000 bietet 1000 Impulszählungen mit TTL-Signaltyp, 5 V DC Versorgung und Solid-Welle-Design. Für industrielle Präzision mit IP67-Gehäuseschutz gebaut.
HEIDENHAIN ROD42600031000 ROTARY INCREMENTAL ENCODER
The Heidenhain ROD42600031000 is a precision rotary incremental encoder engineered for demanding automation and positioning applications. Known for its reliability and robust construction, this encoder is ideal for high-performance industrial environments.

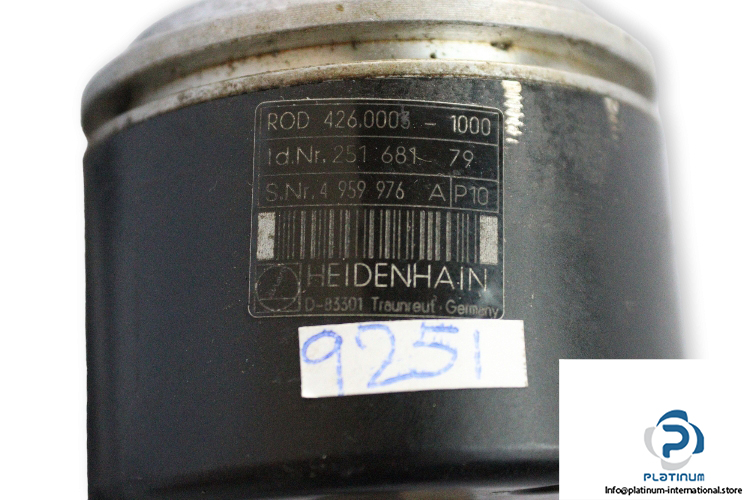

Manufacturer: Heidenhain
Type: Rotary Incremental Encoder
Model: ROD42600031000
ID No.: 251681-79
Serial No.: 4 959 976 A
| Supply Voltage | 5 V DC |
| Current Consumption | 120 mA |
| Electrical Connection | 12 Pin |
| Signal Type | TTL |
| Pulse Counts | 1000 |
| Cable | 1 m without M23 coupling |
| Shaft Type | Solid Shaft |
| Shaft Load | 40 N (Axial), 60 N (Radial) |
| Shaft Diameter | 6 x 12 mm |
| Max. Operating Temperature | 100 °C |
| Protection Degree | IP67 at housing, IP64 at shaft inlet |
