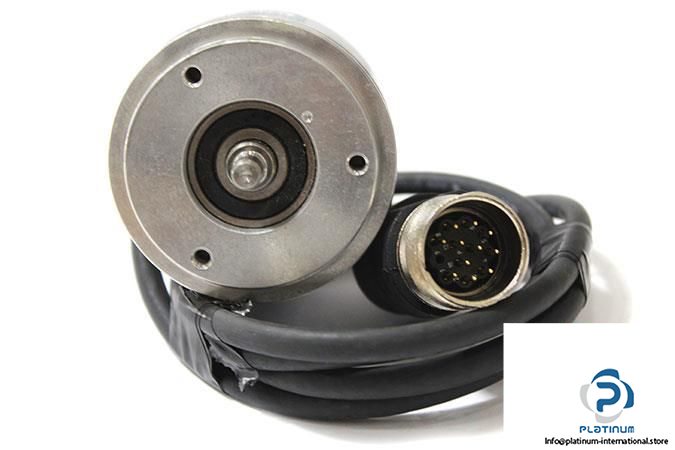

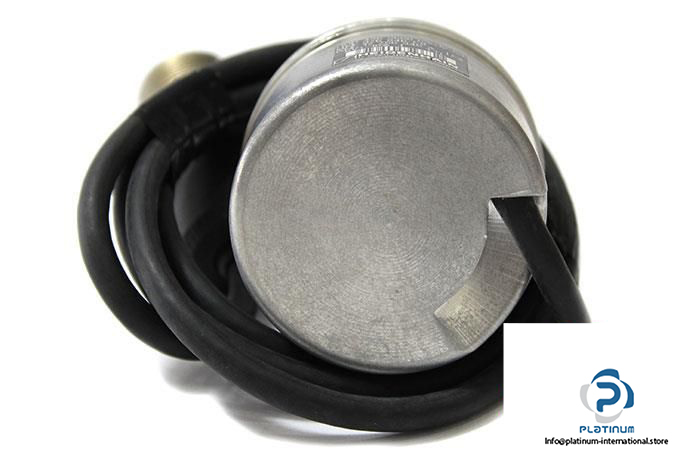

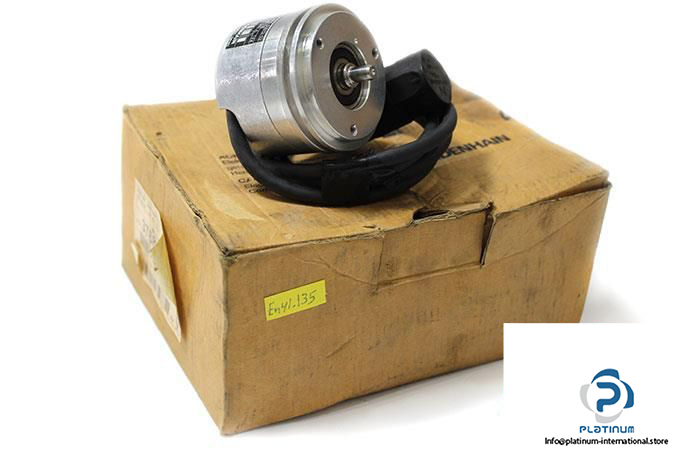

Heidenhain ROD 426 2500 03S12-03 Incremental Encoder

HEIDENHAIN ROD 426 2500 03S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426 is a high-resolution incremental encoder designed for precision motion control systems. With a resolution of 2500 PPR and robust construction, it™s ideal for demanding industrial environments requiring accurate feedback and reliable performance.

Manufacturer: HEIDENHAIN
Type: Incremental Encoder

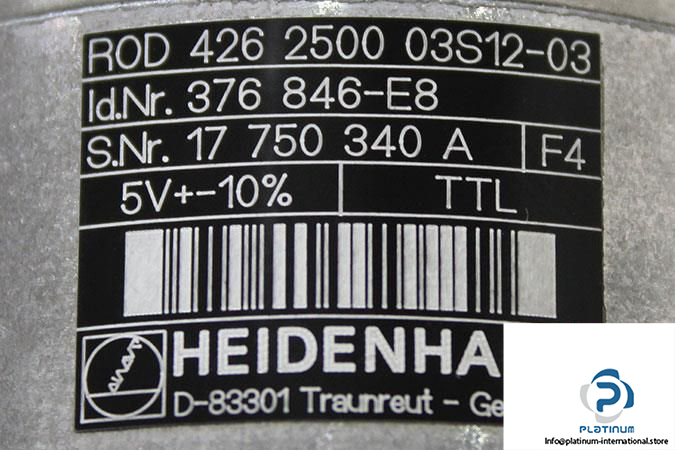

Model: ROD 426 2500 03S12-03
ID No.: 376 846-E8
Serial No.: 17 750 340 A

Technical Specifications

• Flange Design: Synchro flange
• Shaft Design: Solid shaft
• Shaft Diameter: 6 mm
• Voltage Supply: 5 VDC
• Resolution: 2500 Pulse per Revolution (PPR)
• Max. Current Consumption: 120 mA
• Signal Output: TTL (RS 422)
• Max Speed: 16000 rpm
• Max. Pulse Frequency: 300 kHz
• Protection Class: IP 66
• Temperature Range: -40 / 100 °C
