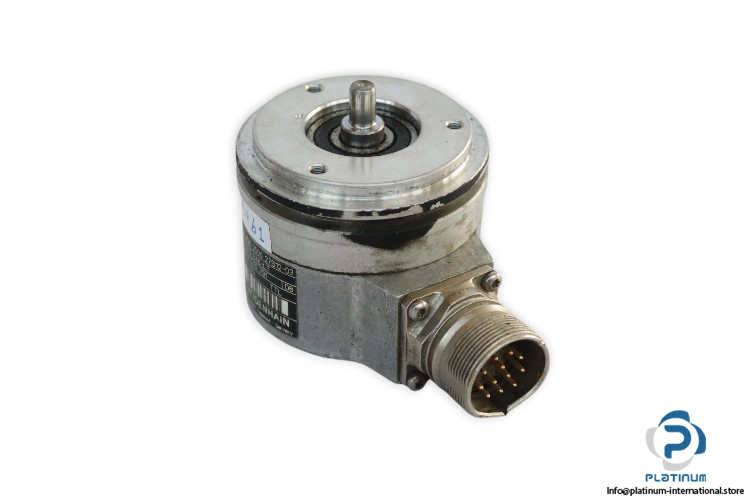

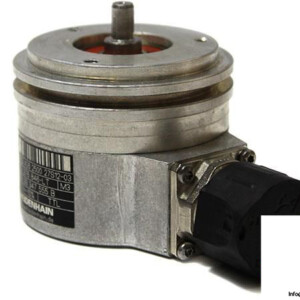

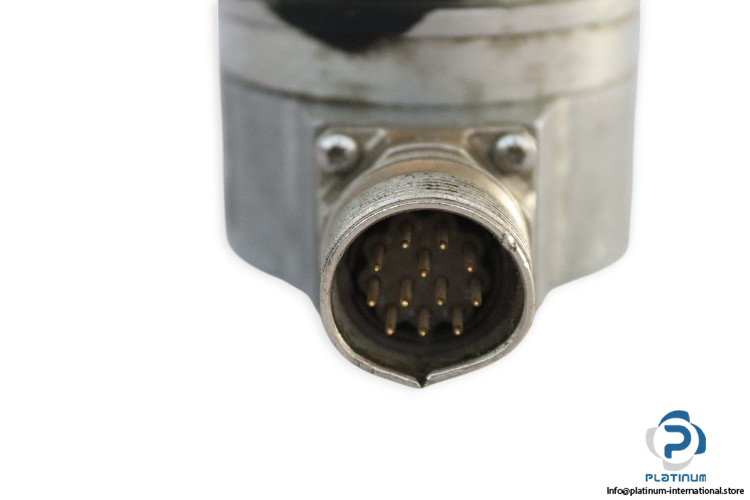

Heidenhain ROD 426 2500 27S12-03 Incremental Encoder
INCREMENTAL ENCODER HEIDENHAIN ROD426250027S1203 liefert 2500 PPR mit TTL (RS 422) Ausgang, IP67 Schutz und einer maximalen Geschwindigkeit von 16000 U/min. Ideale Lösung für industrielle Automatisierungs- und Präzisionssteuerungsanwendungen.
HEIDENHAIN ROD426250027S1203 INCREMENTAL ENCODER
The HEIDENHAIN ROD426250027S1203 is a high-precision incremental encoder built for industrial automation and control systems. With robust construction and excellent signal output, it offers precise position feedback and high-speed performance.

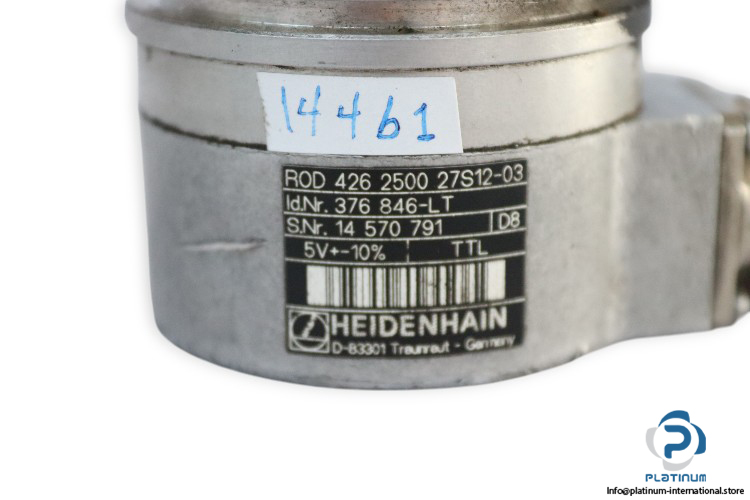

Manufacturer: HEIDENHAIN
Type: Incremental Encoder
Model: ROD426250027S1203
Part No.: 376846LT
Serial No.: 14 570 791
| Flange Design | Synchro Flange |
| Shaft Diameter | 6 mm |
| Shaft Design | Solid Shaft |
| Speed Max | 16000 rpm |
| Resolution | 2500 Pulse Per Revolution (PPR) |
| Signal Output | TTL (RS 422) |
| Voltage Supply | 5 V DC |
| Current Consumption Max. | 120 mA |
| Pulse Frequency Max. | 300 kHz |
| Shaft Load Max. | Axial 40 N / Radial 60 N |
| Protection Class | IP67 |
| Max Temperature | 100 °C |
