Motion Control Rotary Encoders

Heidenhain ROD 426 720 27S12-03 Incremental Encoder

Name: HEIDENHAIN ROD 426 720 27S12-03 INCREMENTAL ENCODER
SKU: 990014
Price: 244.44 USD
Availability: InStock

heidenhain-rod-426-720-27s12-03-incremental-encoder-1

heidenhain-rod-426-720-27s12-03-incremental-encoder-4

heidenhain-rod-426-720-27s12-03-incremental-encoder-3

heidenhain-rod-426-720-27s12-03-incremental-encoder-2

Neu

Auf Lager1 EinheitVersandbereit

244,44$

INKREMENTAL-ENCODER Heidenhain ROD42672027S12-03 Encoder bietet TTL-Ausgang, 5 V DC Betrieb und IP67/IP64 Schutz. Entwickelt mit einem Massivwellen- und Synchro-Flansch für präzise industrielle Rückmeldeanwendungen.

Hersteller

HEIDENHAIN

SKU

990014

Kategorie

Rotary Encoders

Zustand

Neu

5V Connector dc Encoder Feedback Flange Heidenhain High Incremental Industrial IP67 M23 ROD42672027S12-03 Sensor shaft Speed Synchro TTL

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

HEIDENHAIN ROD42672027S12-03 INCREMENTAL ENCODER

The Heidenhain ROD42672027S12-03 is a high-precision incremental encoder designed for industrial automation systems that demand accurate position feedback and robust mechanical reliability. With TTL interface and IP-rated protection, it is ideal for harsh environments and high-speed applications.

Manufacturer: Heidenhain

Type: Incremental Encoder

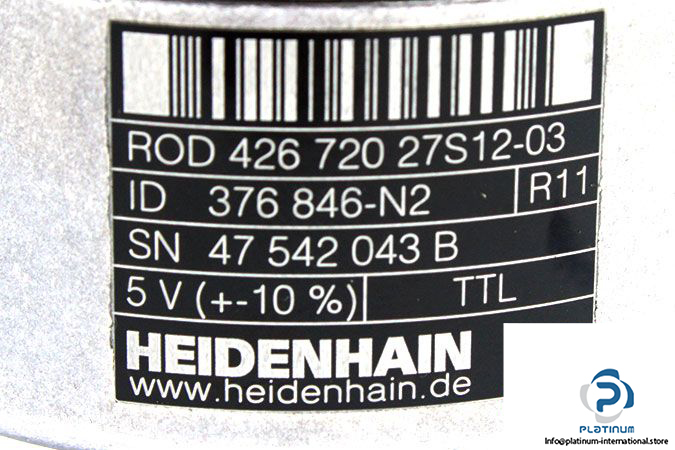

Model: ROD42672027S12-03

Part No.: 376846-N2

Serial No.: 47 542 043 B

Shaft Type	Solid
Mounting	Synchro Flange
Shaft Diameter	6 mm
Mechanical Permissible Speed	16000 rpm
Voltage	5 V DC
Current Consumption Without Load	120 mA
Interface	TTL
Housing Diameter	56 mm
Protection (EN 60 529)	IP67 at housing, IP64 at shaft inlet
Electrical Connection	Connector M23
Max. Operating Temperature	100 °C
