Heidenhain ROQ 424 512 03S17-58 Absolute Encoder
Gebraucht
Auf Anfrage verfügbar
200,00$
INKREMENTALER ENCODER HEIDENHAIN ROQ 424-512-03S17-58 inkrementeller Encoder mit 12-Bit-Auflösung, Solidshaft-Design und Multiturn-SSI-Schnittstelle. IP67/IP64 bewertet und geeignet für Hochgeschwindigkeits-Industrieanwendungen bis 10.000 U/min.
12-bit424-512-03S17-58EncoderHeidenhainHigh-SpeedIncrementalIndustrialIP67MultiturnResolutionROQshaftSolidSSI
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

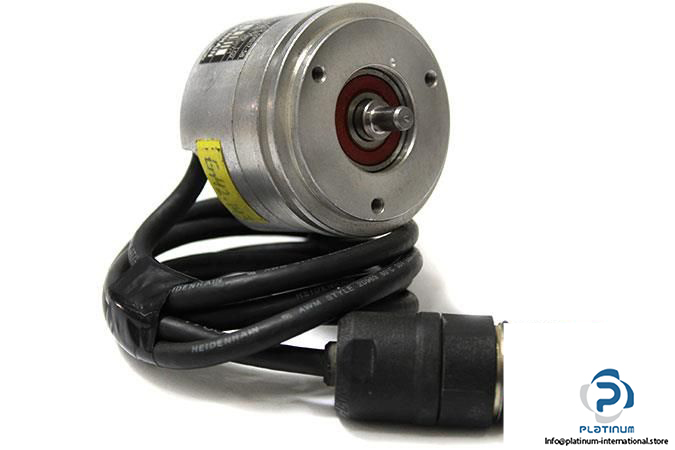

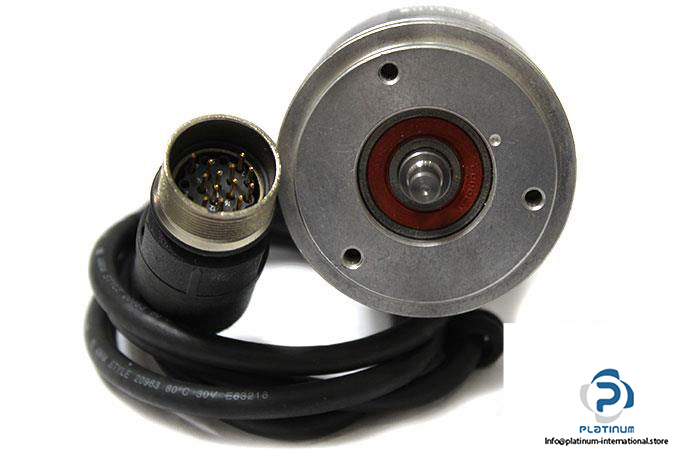

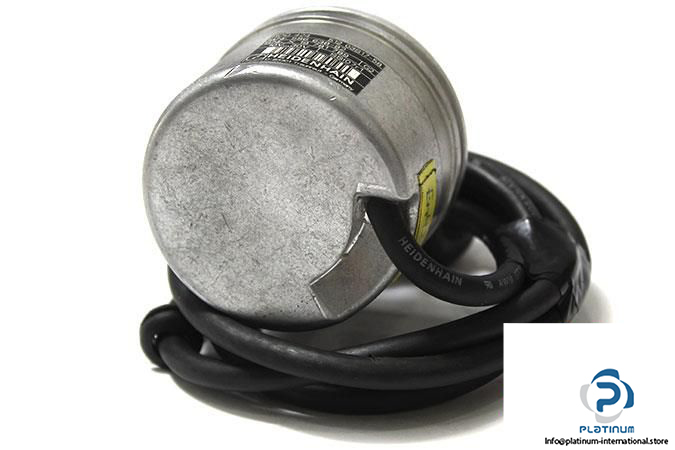

HEIDENHAIN ROQ 424-512-03S17-58 INCREMENTAL ENCODER
This high-resolution incremental encoder by HEIDENHAIN is engineered for precision motion control in demanding industrial environments. With a multiturn SSI interface and robust protection ratings, it ensures accurate performance even under harsh conditions.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

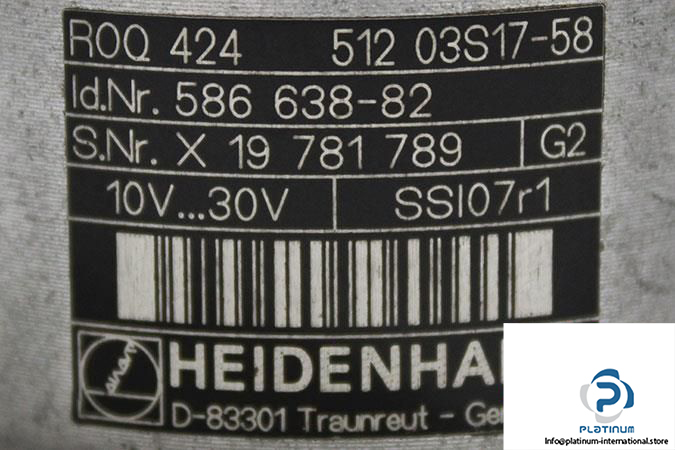

Model: ROQ 424-512-03S17-58
ID No.: 586 638-82
Serial No.: X 19 781 789
| Flange Design | Synchro flange |
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Voltage Supply | 10 / 30 VDC |
| Resolution | 4096 revolutions (12 bits) |
| Interface | Multiturn (SSI) |
| Code | Gray |
| Maximum Speed | 10 000 rpm |
| Clock Frequency | 8 MHz |
| Protection Class | IP67 at housing; IP64 at shaft end |
| Maximum Temperature | 85°C |
