Motion Control Rotary Encoders

Hengstler AC58/1213EK.42DPZ Absolute Encoder

Name: HENGSTLER AC58/1213EK.42DPZ ABSOLUTE ENCODER
SKU: 1002435
Price: 666.66 USD
Availability: InStock

hengstler-ac58_1213ek-42dpz-absolute-encoder-1

hengstler-ac58_1213ek-42dpz-absolute-encoder-2

hengstler-ac58_1213ek-42dpz-absolute-encoder-3

Neu

Auf Lager1 EinheitVersandbereit

666,66$

ABSOLUTER ENCODER Hengstler AC58/1213EK.42DPZ bietet 13-Bit-Auflösung und EtherCAT-Kommunikation mit einer robusten Welle aus Edelstahl, ideal für Hochgeschwindigkeits- und hochpräzise Industriesysteme.

Hersteller

HENGSTLER

SKU

1002435

Kategorie

Rotary Encoders

Zustand

Neu

13 Absolute AC58/1213EK.42DPZ Bit Clamping Encoder EtherCAT Feedback Flange Hengstler High Industrial IP65 Resolution Sensor shaft Speed stainless Steel

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

HENGSTLER AC58/1213EK.42DPZ ABSOLUTE ENCODER

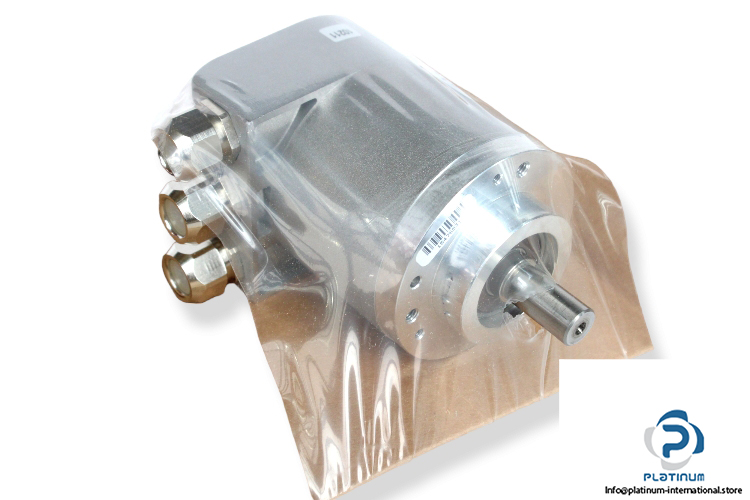

The Hengstler AC58/1213EK.42DPZ is a high-resolution absolute encoder built for precision feedback in demanding industrial automation environments. With EtherCAT interface and rugged stainless steel shaft, it ensures reliable performance even in extreme conditions.

Manufacturer: Hengstler

Type: Absolute Encoder

Model: AC58/1213EK.42DPZ

Part No.: 0566082

S No.: 358693/001/0214

Ref No.: 9820097

Supply Voltage	10 / 30 VDC
Current	0.2 A
Flange Type	Clamping flange
Shaft Type	Solid Shaft
Shaft Diameter	10 mm
Resolution	13 Bit ST
Cycle Time	62.5 Î¼s min
Material Shaft	Stainless Steel
Output Code	Binary
Interface	EtherCAT
Connection Type	Bus cover with 3x M12 connectors Profibus
Operating Speed (Max)	10,000 rpm
Protection Class	IP65
Operating Temperature	-40 / +85°C
