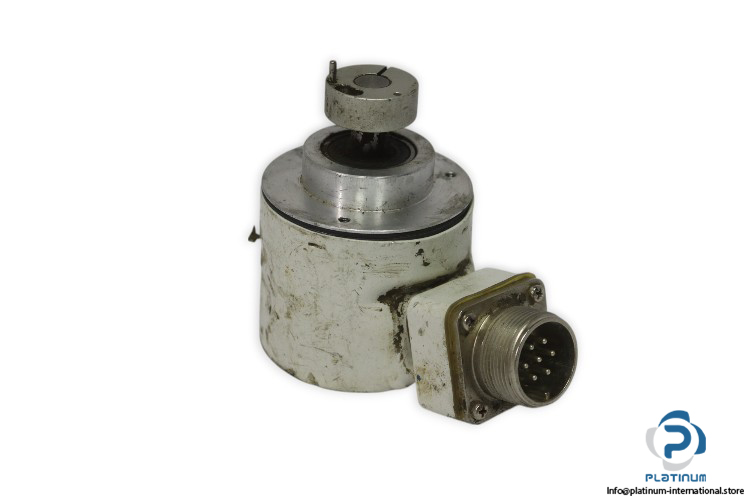

Hengstler RI58-O/ 230EK.42KL Encoder

Manufacturer: Hengstler

Type: Encoder

Model: RI58-O/ 230EK.42KL

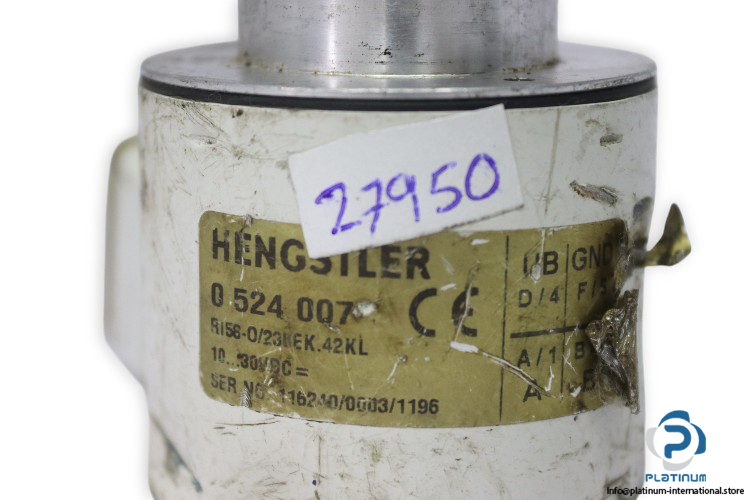

Part No.: 0524007

Serial No.: 116240/0003/1196

• Number of Pulses: 1 / 10 000
• Maximum Speed: 10 000 min^-1
• Supply Voltage: 10 – 30V DC
• Housing: Aluminium Ø 58 mm
• Connection: 1.5 m cable or connector, axial or radial
• Torque: 0.5 Ncm
• Protection Class: IP67
• Operating Temperature: -10 / 70 °C

The Hengstler RI58-O/ 230EK.42KL encoder is a robust and precise rotary encoder designed for industrial environments requiring high-resolution feedback. With a compact aluminium housing and IP67 protection, it offers reliable performance under harsh conditions. Ideal for automation, motion control, and positioning systems, it supports up to 10,000 pulses with stable output and minimal torque resistance.
