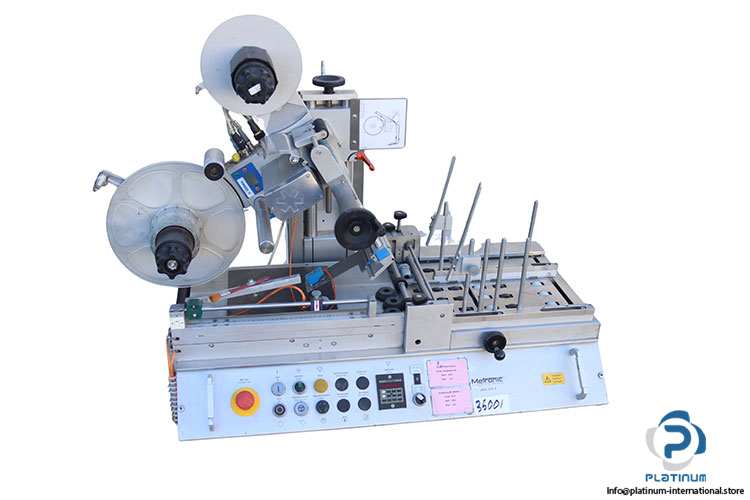

Herma H400 8R Label Machine
1 999,99$
Label Applicator
The WEBER HERMA H400 8R is a high-speed industrial label applicator with servo-driven precision, wide label support, and integrated printing and sensing systems. Ideal for automated production lines requiring reliability and accuracy.WEBER HERMA H400 8R Label Applicator / Label Machine
The WEBER HERMA H400 8R is a high-performance industrial label applicator designed for precision, speed, and reliability in automated labeling lines. Part of the advanced H400 series, this machine supports both standard and wide-format labeling, making it ideal for packaging, logistics, manufacturing, and printing operations. With servo-driven motors, multi-device integration, and extensive compatibility with printing and sensing modules, it delivers outstanding efficiency and labeling accuracy.
Manufacturer: WEBER HERMA
Type: Label Applicator / Label Machine

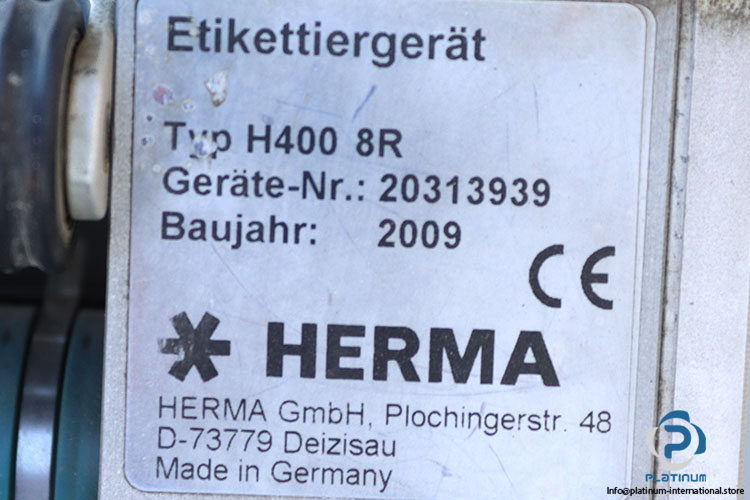

Model: H400 8R
Series: H400
Device No.: 20313939

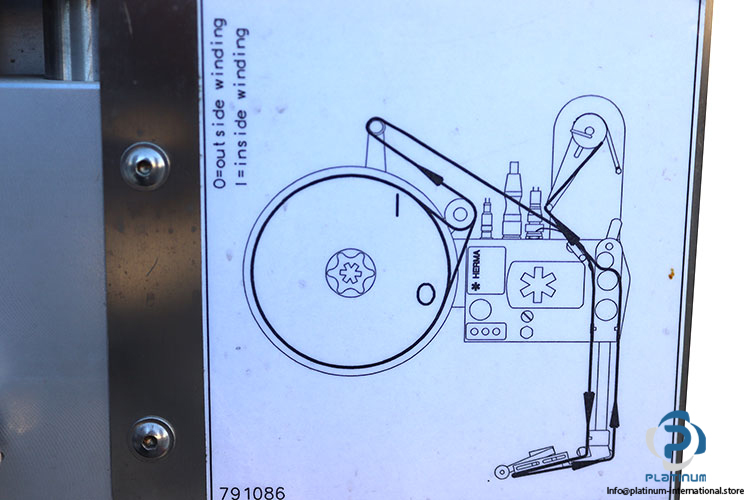

Code: 791086
Additional Notes
This machine offers a complete labeling solution”integrating application, printing, coding, and sensing capabilities into one powerful system”making it an outstanding choice for businesses seeking maximum throughput and long-term reliability.
| Label Width (Standard) | Up to 6.3 |
| Label Width (Optional) | Up to 12.6 |
| Motor Type | Servo-driven |
| Electrical Input | Universal 100“240 VAC, 50/60 Hz |

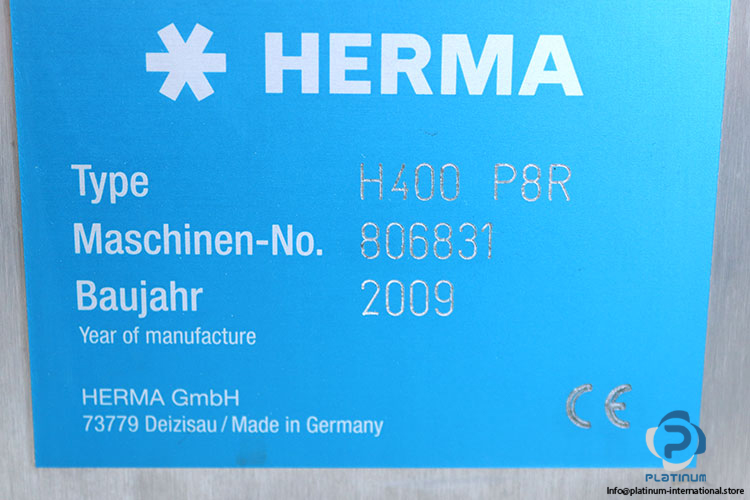

| Attachment | HERMA H400 P8R Label Applicator |
| Machine No. | 806831 |

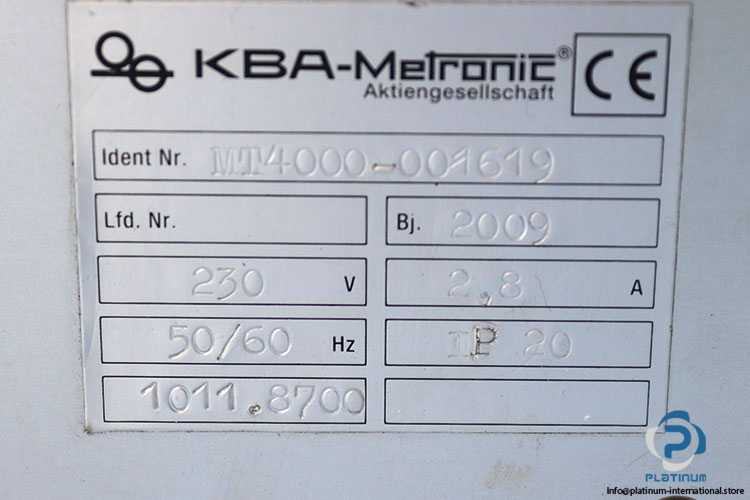

| Attachment | KBA-Metronic MT4000-001619 Printing System |
| Code | 1011.8700 |
| Voltage | 230 V |
| Current | 2.8 A |
| Frequency | 50/60 Hz |
| Protection Class | IP20 |

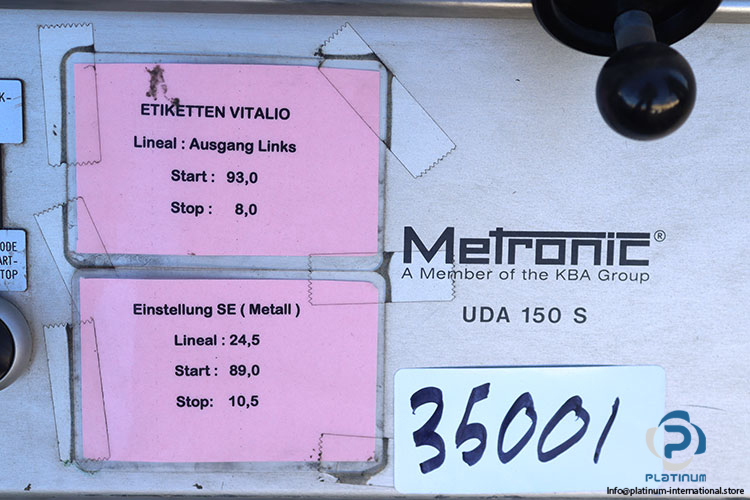

| Attachment | Metronic UDA 150 S Coding & Printing System |
| Brand | Metronic |
| Lineal Scale (Exit Left) | Start 93.0 / Stop 8.0 |
| Metall Lineal | 24.5 / Start 89.0 / Stop 10.5 |
| Dimensions | L 1350 mm, H 600 mm, D 510 mm |
| Material Dimensions | Min. 30 × 60 mm, Max. 300 × 400 mm |
| Material Thickness | Min. 60 g/sqm, Max. 4 mm |
| Output Speed | Up to 180 prints/min. (depending on material & system) |
| Power Connection | 230 V (115 V optional) |
| Attachment | HERMA FS03 Label Sensor |
| Type Code | FP 0549024 / 680297 |
| Voltage | 24 V |
| Rated Current Consumption | 25 mA |
| Output Current | Max. 20 mA |
| Output Voltage (Low/High) | 2.5 V / UB “ 3.5 V |
| Protection Class | IP20 |
| Temperature Range (Operation/Storage) | 0“50°C / -20 to +80°C |

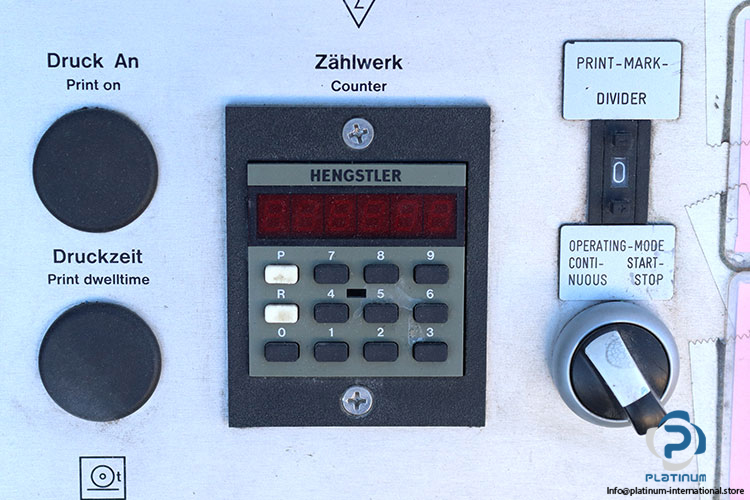

| Attachment | Hengstler Panel Counter Unit |
| Brand | Hengstler |
| Ideal Application | High-speed automated labeling and printing |
| Features | Modular design, integrated printing, advanced sensing, servo precision |
| Customer Benefit | Increased labeling accuracy, reduced downtime, and adaptable configuration for multiple production lines |
