Hiwin EGH20SA Linear Guideway Block
Neu
Auf Lager34 EinheitenVersandbereit
64,44$
Quadratischer Linearführungsblock von Hiwin, 20 mm Größe mit mittlerer Tragfähigkeit, topmontierte Konfiguration und präzise Lastverteilung für stabile industrielle Bewegungssysteme.
0G046-320BlockEGH20SACGuideGuidewayHiwinIndustrialLinearLoadM5MediummmMotionmountrailSquareThreadTop
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

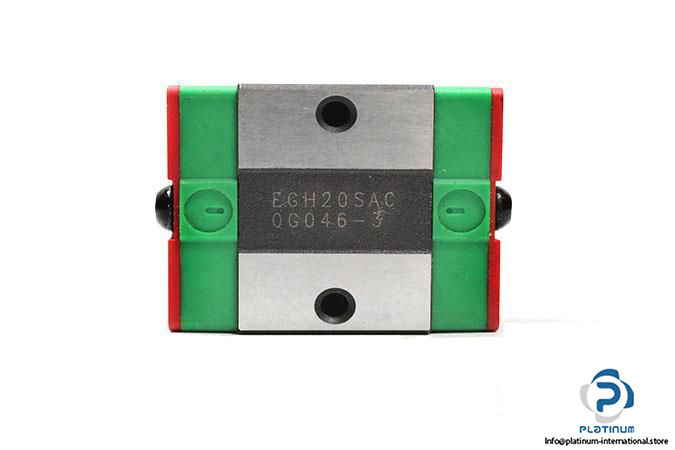

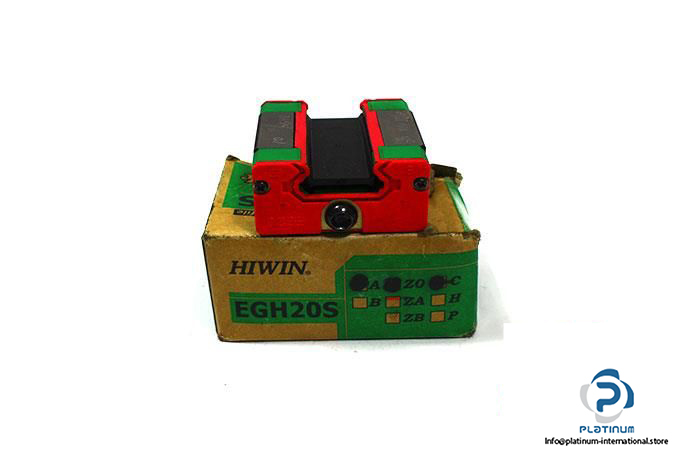

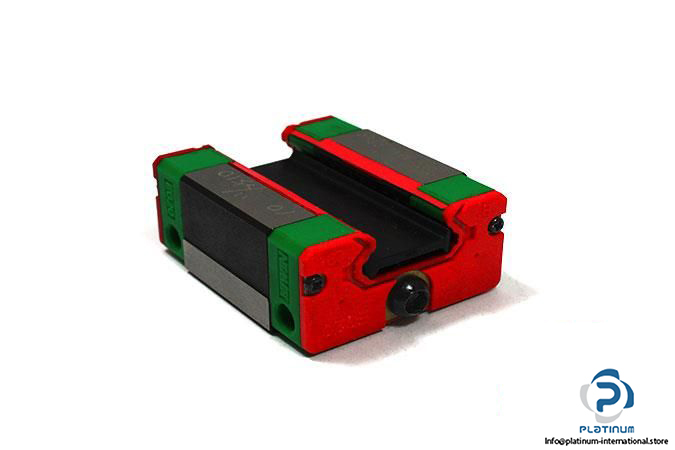

HIWIN EGH20SAC 0G046-3 LINEAR GUIDEWAY BLOCK
The Hiwin EGH20SAC 0G046-3 is a compact square-type linear guideway block designed for medium-load applications. It ensures precise linear motion and stability in demanding industrial setups, with high rigidity and optimal load distribution.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH20SAC 0G046-3
| Size | 20 mm |
| Block Height | 22 mm |
| Block Width | 42 mm |
| Block Length | 50 mm |
| System Height | 28 mm |
| Distance Between Holes | 32 mm |
| Thread Size | M5 x16 |
| Block Type | Square |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 7.23 kN |
| Basic Static Load Rating | 12.74 kN |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
