Hiwin EGH25CA Linear Guideway Block
Neu
Auf Lager18 EinheitenVersandbereit
65,49$
LINEARER FÜHRUNGSBLOCK Schwerlast-quadratischer linearer Führungsblock von Hiwin mit 25 mm Größe, Top-Montage-Design und hohen Tragfähigkeiten, ideal für anspruchsvolle industrielle Bewegungssysteme.
1807XV-30P002525CA9AutomationbearingBlockEGHGuideGuidewayHeavyHiwinIndustrialLinearLoadM6mmMountingrailSquareTopx
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

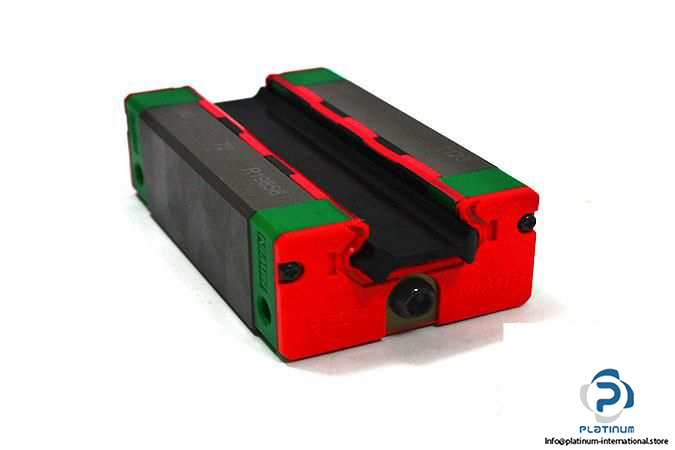

HIWIN EGH 25CA 1807XV-30P00 LINEAR GUIDEWAY BLOCK
This heavy-load linear guideway block from Hiwin delivers high rigidity and smooth linear motion in industrial automation systems. Engineered with top-mounting design and square-type configuration, it ensures precise positioning and long service life in demanding environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH 25CA 1807XV-30P00
| Size | 25 mm |
| Total Height H | 33 mm |
| Block Width W | 48 mm |
| Block Length L | 82.6 mm |
| Block System | 26 mm |
| Distances Between Holes | 35, 35 mm |
| Thread Size | M6 x 9 |
| Basic Dynamic Load Rating | 16.27 kN |
| Basic Static Load Rating | 32.40 kN |
| Rail Width | 23 mm |
| Rail Height | 18 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
