Hiwin EGH30SA Linear Guideway Block
Neu
Auf Lager12 EinheitenVersandbereit
LINEARER FÜHRUNGSBLOCK Hiwin EGH30SA quadratischer Linearblock, 30 mm Größe, mittlere Tragfähigkeit, Top-Mount, ausgelegt für kompakte Bewegungssysteme, die präzise Ausrichtung und robuste Unterstützung benötigen.
1706ZV-503002530BlockEGH30SAGuideGuidewayHiwinIndustrialLinearLoadM6MediummmMotionmountPrecisionrailSlideSquareTopx
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

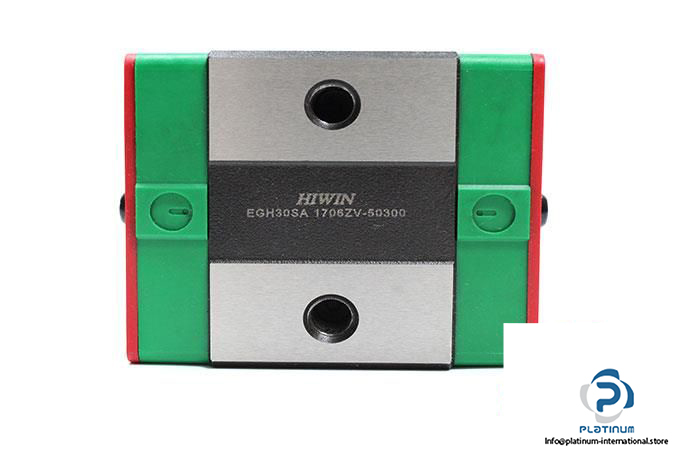

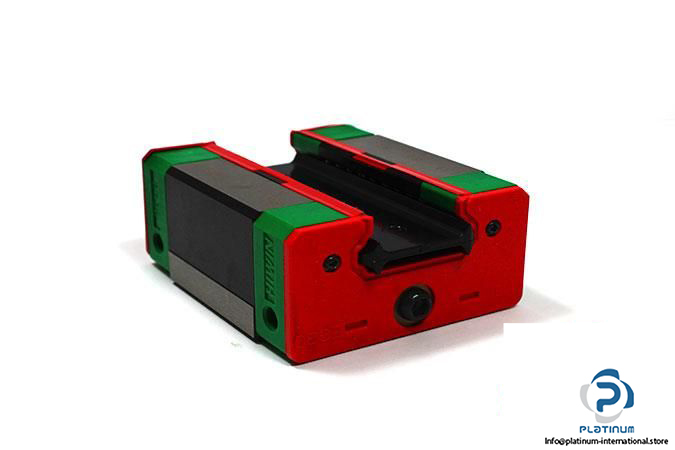

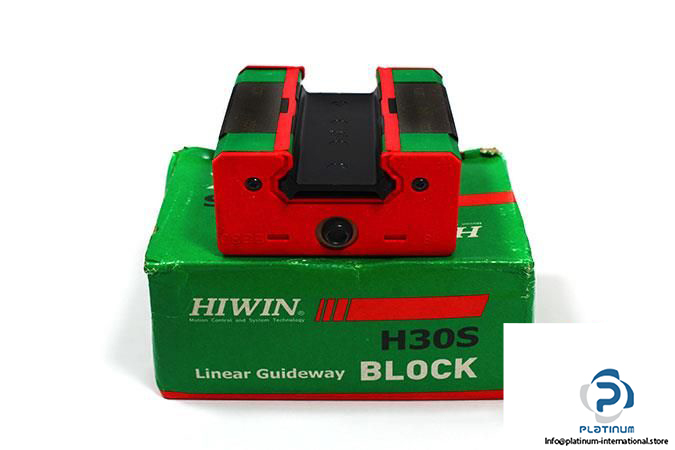

HIWIN EGH30SA LINEAR GUIDEWAY BLOCK
Designed for precision motion applications, this Hiwin square-type linear guideway block supports medium loads with high stiffness and accuracy. Its top-mount configuration and compact design make it ideal for industrial automation and positioning systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH30SA 1706ZV-50300
Size: 30 mm
| Block Height | 32 mm |
| System Height | 42 mm |
| Block Width | 60 mm |
| Block Length | 69.5 mm |
| Distance Between Holes | 40 mm |
| Thread Size | M6 x 25 |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Block Type | Square |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 16.42 kN |
| Basic Static Load Rating | 28.10 kN |
