Hiwin EGW25SC Linear Guideway Block
Neu
Auf Lager32 EinheitenVersandbereit
83,45$
LINEAR GUIDEWAY BLOCK Hiwin EGW25SC Flanschtyp Linearführung Block für 25 mm Schiene, ideal für durchschnittliche Last-Bewegungssysteme, die zuverlässige lineare Positionierung und präzise Unterstützung erfordern.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

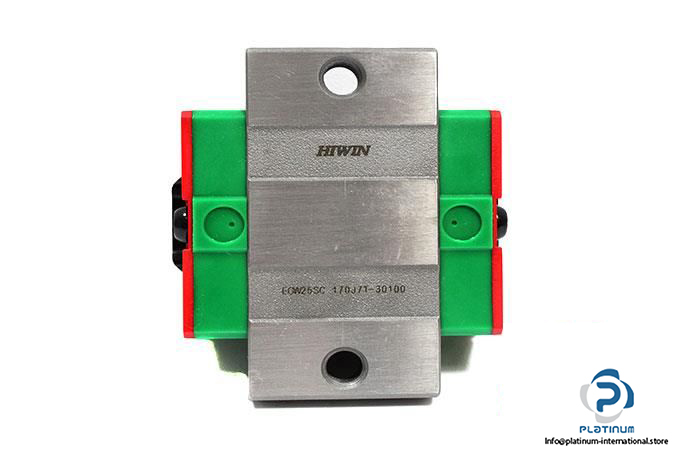

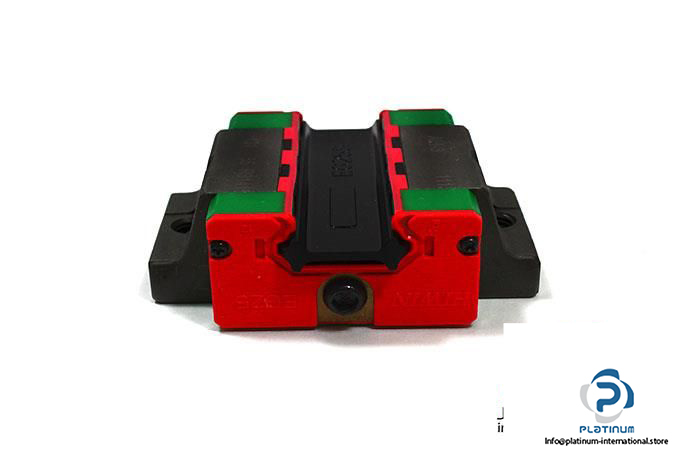

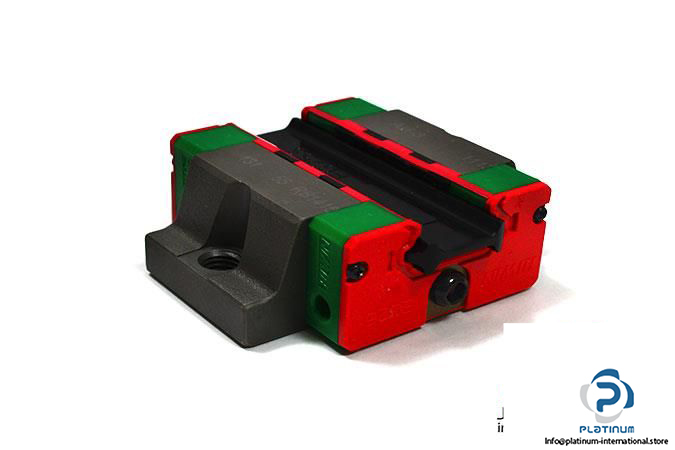

HIWIN EGW25SC LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is designed for stable and precise linear motion in automation systems. Built with a 25 mm rail size and flange-type block, it supports average load applications with high accuracy and smooth travel.
Manufacturer: Hiwin
Type: Linear Guideway Block

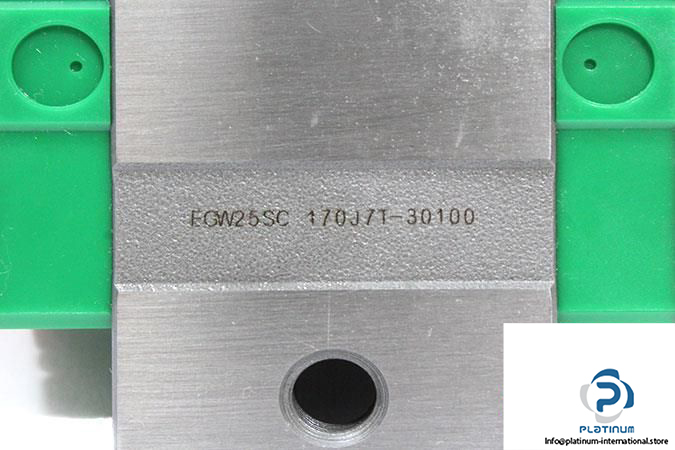

MNR: EGW25SC 170071-30100
Size: 25 mm
| Block Height | 26 mm |
| System Height | 33 mm |
| Block Width (W) | 73 mm |
| Block Length (L) | 59.1 mm |
| Distances Between Holes | 60 mm |
| Thread Size | M8 |
| Rail Width | 23 mm |
| Rail Height | 18 mm |
| Block Type | Flange |
| Load Type | Average Load |
| Block Mounting Type | From Above |
| Basic Dynamic Load Rating | 11400 N |
| Basic Static Load Rating | 19500 N |
