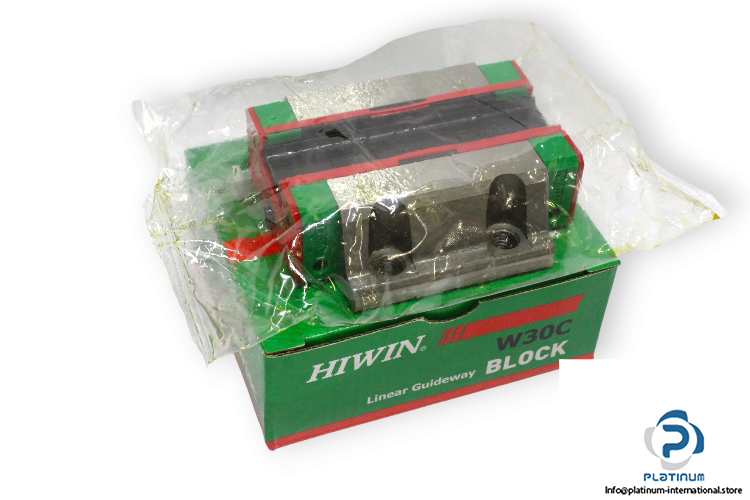

Hiwin EGW30CB Linear Guideway Block
Neu
Auf Lager7 EinheitenVersandbereit
Schwerlast linearer Führungsblock von Hiwin mit Flanschbefestigung und Z0 Voreinstellung, ausgelegt für 30 mm Schienen mit hoher Tragfähigkeit und Bodenmontagekonfiguration.
2530BlockBottomCarriageCBEGWFlangeGuideGuidewayHeavyHiwinLinearLoadM6mmmountPrecisionPreloadrailTypexZ0
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

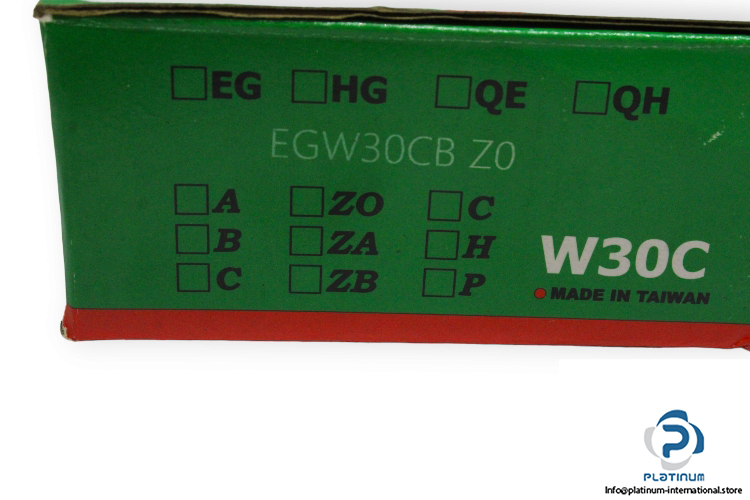

HIWIN EGW 30 CB Z0 LINEAR GUIDEWAY BLOCK
This heavy-load linear guideway block from Hiwin delivers high precision, rigidity, and load capacity, making it ideal for demanding motion systems. With flange type mounting and Z0 preload, it ensures stability under complex load conditions.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 30 CB Z0
| Size | 30 mm |
| Total Height H | 42 mm |
| Block Height | 32 mm |
| Block Width W | 90 mm |
| Block Length L | 98.1 mm |
| Distance Between Holes | 72 mm, 40 mm |
| Thread Size | M6 x 25 |
| Block Type | Flange |
| Load Type | Heavy Load |
| Preload | Z0 |
| Block Mounting Type | From Bottom |
| Basic Dynamic Load Rating C | 23.7 kN |
| Basic Static Load Rating C0 | 47.46 kN |
