Hiwin EGW30SA Linear Guideway Block
Neu
Auf Lager35 EinheitenVersandbereit
98,59$
LINEARER FÜHRUNGSBLOCK Flanschtyp Hiwin Linearblock mit 30 mm Größe, mittlerer Tragfähigkeit und M6 x 25 oberes Montage-Design. Ideal für ruhige, stabile lineare Bewegungen in industriellen Automatisierungssystemen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

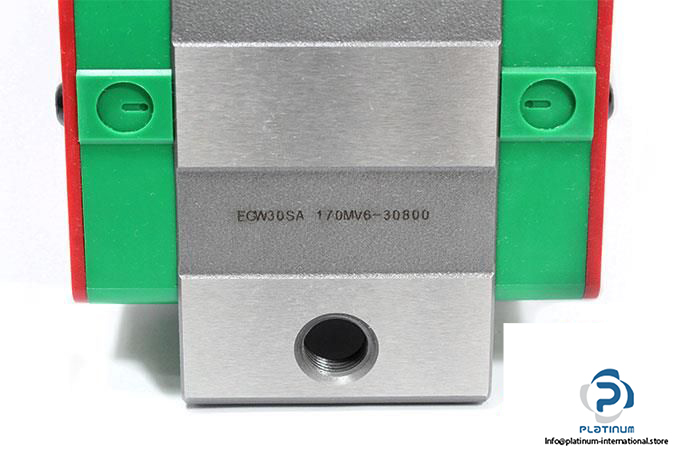

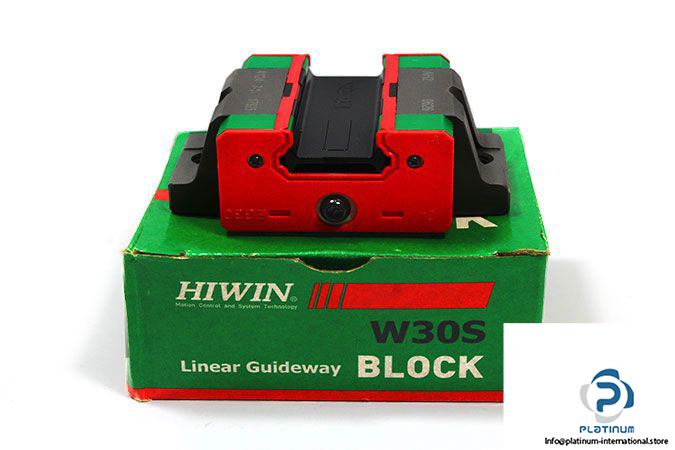

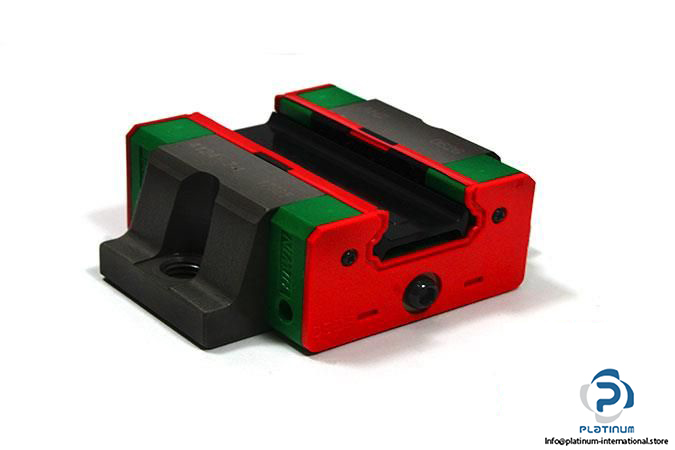

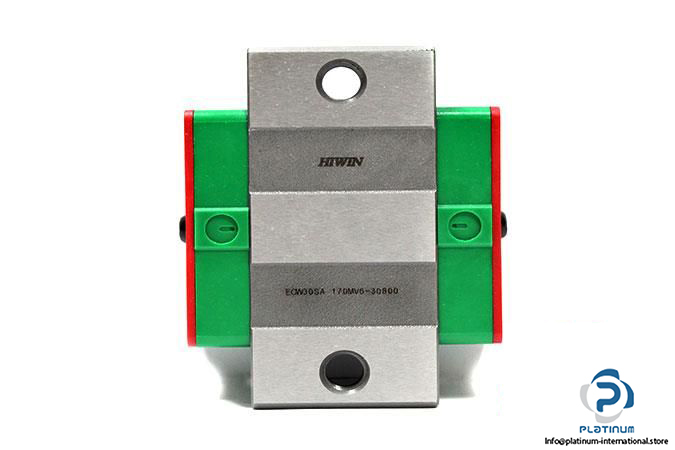

HIWIN EGW30SA 17MV6-30800 LINEAR GUIDEWAY BLOCK
This Hiwin linear guideway block is engineered for precise linear motion in medium-load applications. With a robust flange-type design, it offers high load capacity and rigidity, ideal for industrial automation, machinery, and motion systems requiring stable and smooth guidance.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW30SA 17MV6-30800
| Size | 30 mm |
| Block Height | 32 mm |
| Block Width | 90 mm |
| Block Length | 69.5 mm |
| System Height | 42 mm |
| Distances Between Holes | 72 mm |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Thread Size | M6 x 25 |
| Basic Dynamic Load Rating | 16.42 kN |
| Basic Static Load Rating | 28.10 kN |
| Block Type | Flange |
| Load Type | Medium Load |
| Block Mounting Type | From Top |
