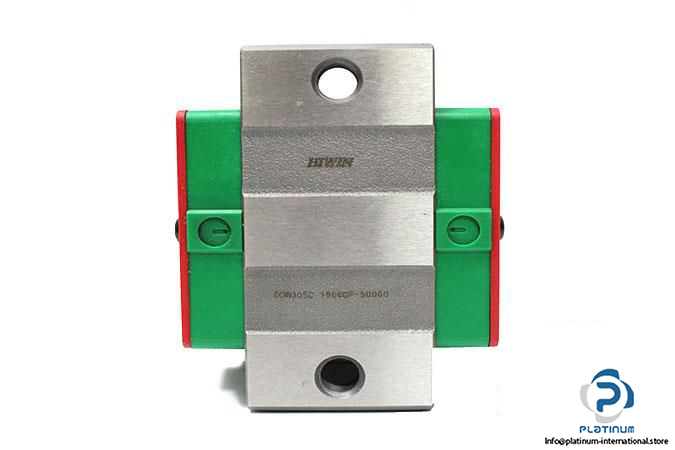

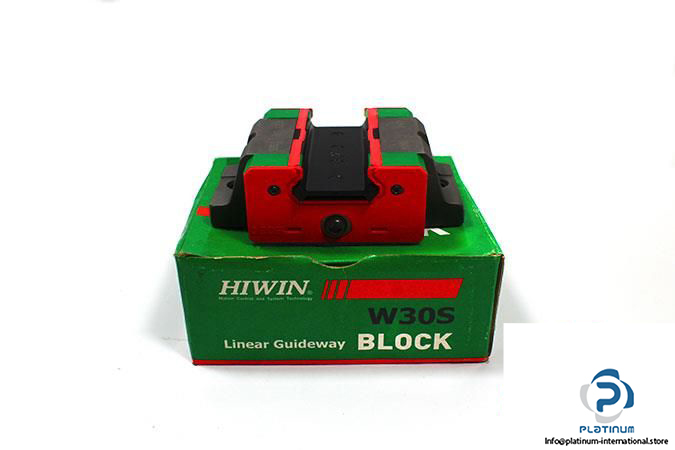

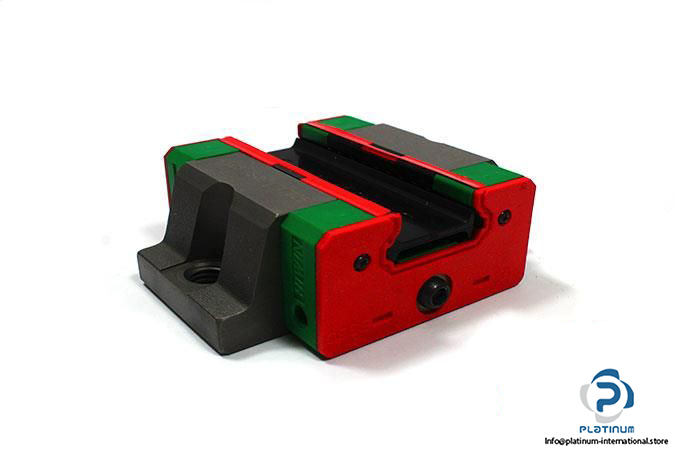

Hiwin EGW30SC Linear Guideway Block
Neu
Auf Lager1 EinheitVersandbereit
98,59$
Flanschtyp Linearführungsblock von Hiwin, 30 mm Größe mit 90 mm Breite und 69,5 mm Länge, konzipiert für mittelbelastete Präzisionssysteme mit einer dynamischen Belastbarkeit von 16420 N und M6 × 25 Oberseiten-Gewindebefestigung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN EGW30SC LINEAR GUIDEWAY BLOCK
Hiwin's EGW30SC linear guideway block is engineered for medium-load precision motion systems, offering stable performance and high rigidity. With a 30 mm size and flange-type mounting, it is ideal for various industrial automation applications where accuracy and structural support are essential.
Manufacturer: Hiwin
Type: Linear Guideway Block

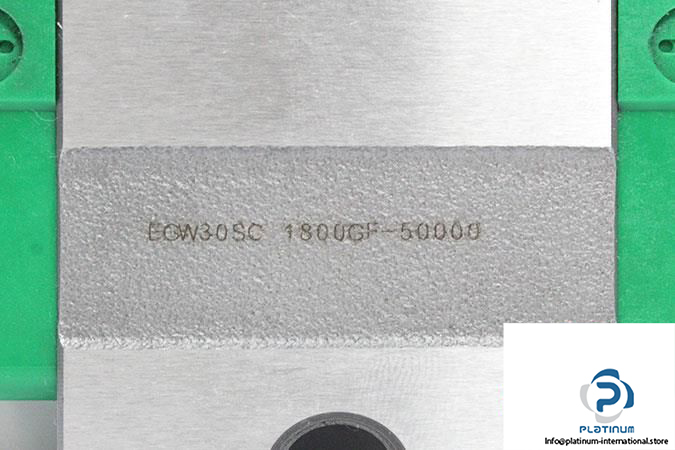

MNR: EGW30SC 1800GF-50000
Size: 30 mm
| Block Height | 32 mm |
| System Height | 42 mm |
| Block Width (W) | 90 mm |
| Block Length (L) | 69.5 mm |
| Thread Size | M6 x 25 |
| Distance Between Holes | 72 mm |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Block Type | Flange |
| Load Type | Average Load |
| Block Mounting Type | From Above |
| Basic Dynamic Load Rating | 16420 N |
| Basic Static Load Rating | 28100 N |
