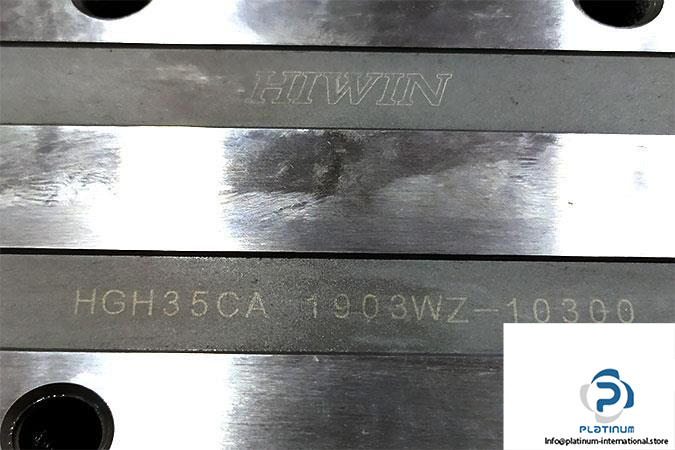

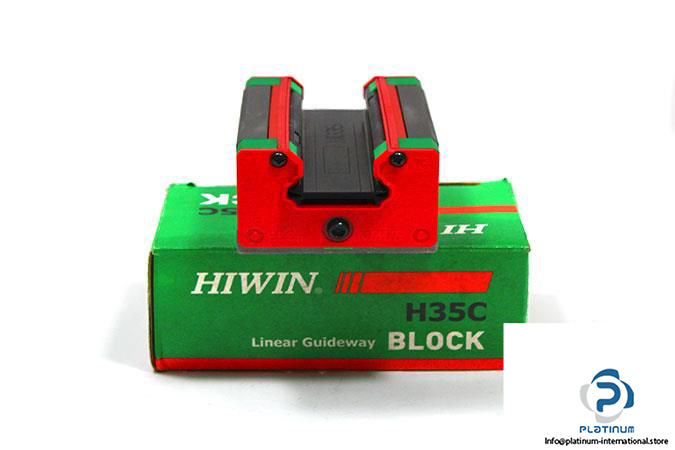

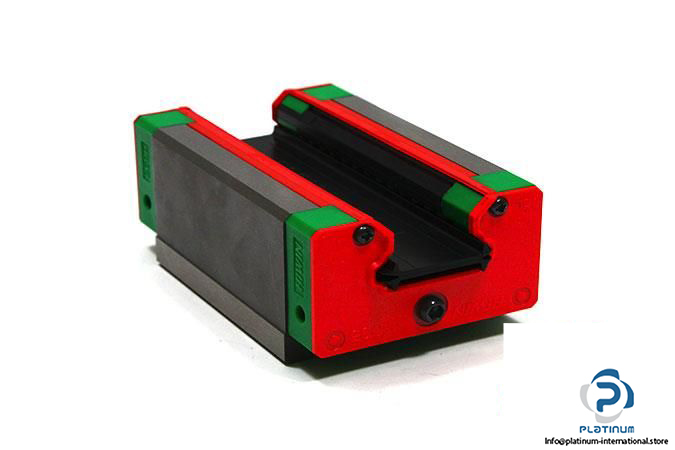

HIWIN HGH35CA 1903WZ-10300 LINEAR GUIDEWAY BLOCK
This high-precision square-type linear guideway block from Hiwin is engineered for heavy load applications requiring rigid support and smooth linear motion. Ideal for machine tools, automation systems, and demanding mechanical assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH35CA 1903WZ-10300
| Size | 35 mm |
| Block Height | 47.5 mm |
| System Height | 55 mm |
| Block Width (W) | 70 mm |
| Block Length (L) | 112.4 mm |
| Thread Size | M8x12 |
| Distance Between Holes | 50, 50 mm |
| Rail Width | 34 mm |
| Rail Height | 29 mm |
| Block Type | Square |
| Load Type | Heavy load |
| Block Mounting Type | From Top |
| Preload Code | ZA |
| Basic Dynamic Load Rating | 64.6 kN |
| Basic Static Load Rating | 93.88 kN |
