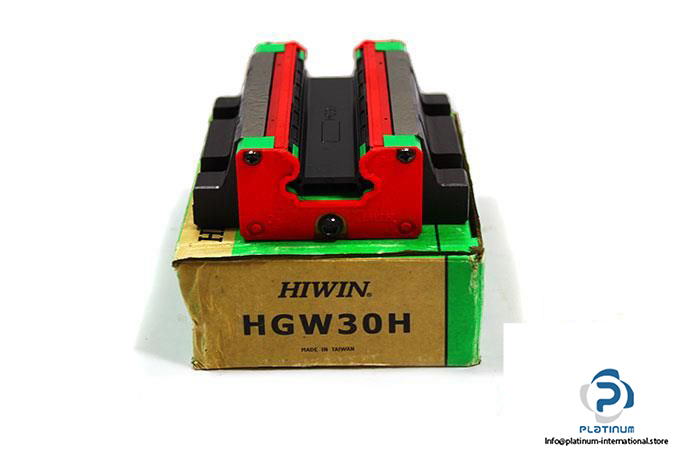

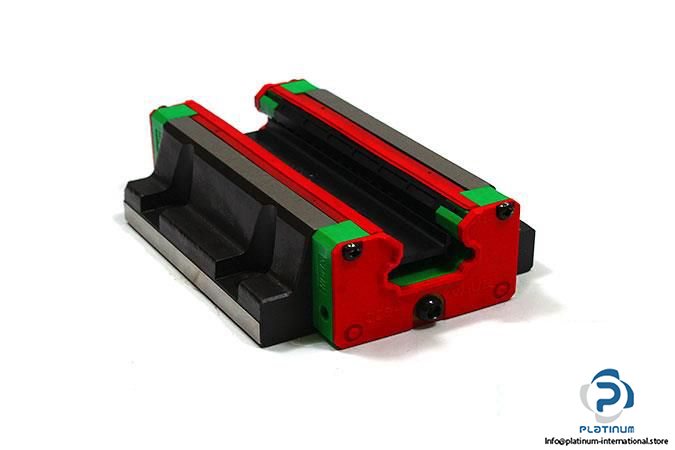

Hiwin HGW30HC Linear Guideway Block
Neu
Auf Lager23 EinheitenVersandbereit
119,01$
LINEAR GUIDEWAY BLOCK Hiwin HGW30HCC Linearführungsblock mit 30 mm Größe und quadratischem Design, ideal für Anwendungen mit sehr hoher Last, die hohe Präzision und strukturelle Festigkeit in Bewegungssystemen erfordern.
3064553-4BlockGuideGuidewayHeavyHGW30HCCHiwinIndustrialLinearLoadM8x25mmMotionPrecisionrailSquareSuperSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN HGW30HCC LINEAR GUIDEWAY BLOCK
This super heavy-load linear guideway block from Hiwin is engineered for high-precision motion systems, offering maximum rigidity and stability in demanding industrial environments. Its square-type design and dual mounting options support flexibility in mechanical layout and robust load handling.
Manufacturer: Hiwin
Type: Linear Guideway Block

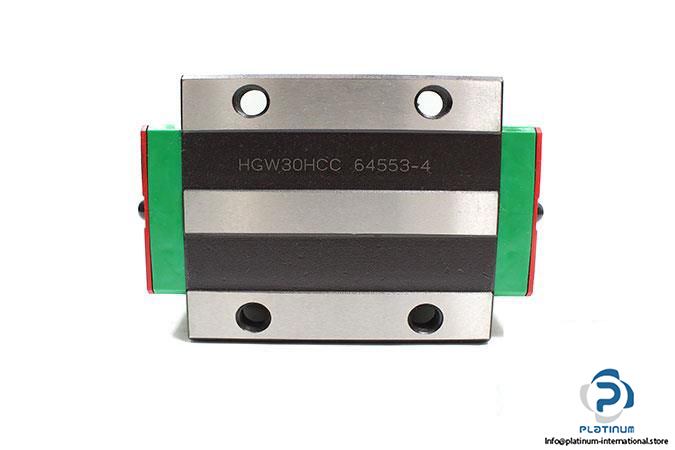

MNR: HGW30HCC 64553-4
| Size | 30 mm |
| Block Height | 36 mm |
| System Height | 42 mm |
| Block Width (W) | 90 mm |
| Block Length (L) | 120.4 mm |
| Thread Size | M8x25 |
| Distance Between Holes | 72 mm, 52 mm |
| Rail Width | 28 mm |
| Rail Height | 26 mm |
| Block Type | Square |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Basic Dynamic Load Rating | 58.6 kN |
| Basic Static Load Rating | 93.99 kN |
