Hiwin HGW35CC Linear Guideway Block
Neu
Auf Lager37 EinheitenVersandbereit
125,00$
Schwerlast-Linearschlittenblock von Hiwin mit 35 mm Größe, Flanschtyp und Montageoptionen oben oder unten, ideal für hochpräzise Bewegungsanwendungen.
35BlockCNCFlangeGuideGuidewayHeavyHGW35CCCHiwinLinearLoadM8x25mmMotionmountPrecisionrailSystemThreadTop
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

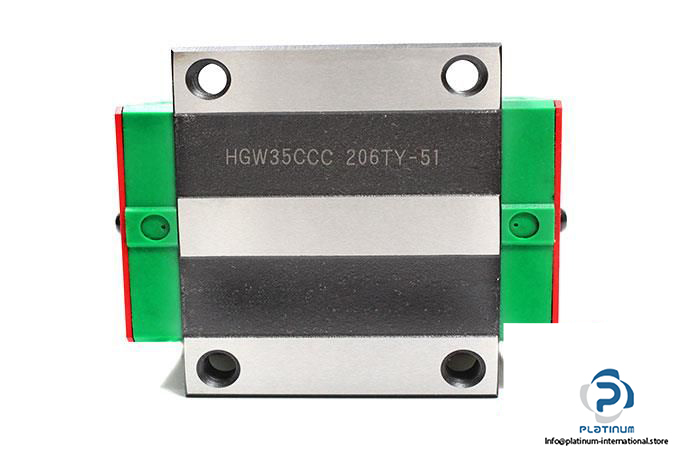

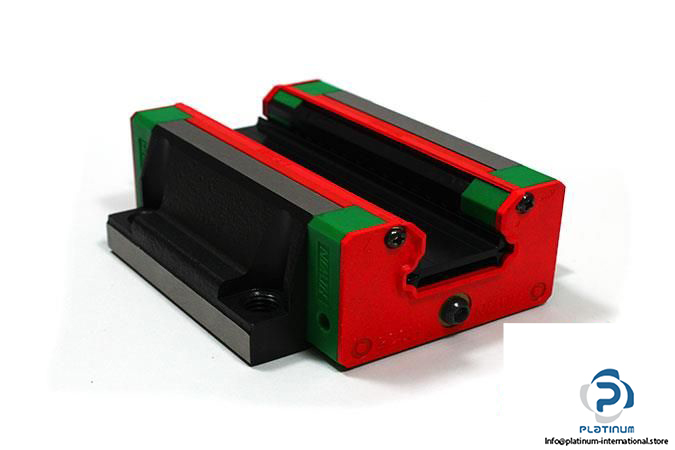

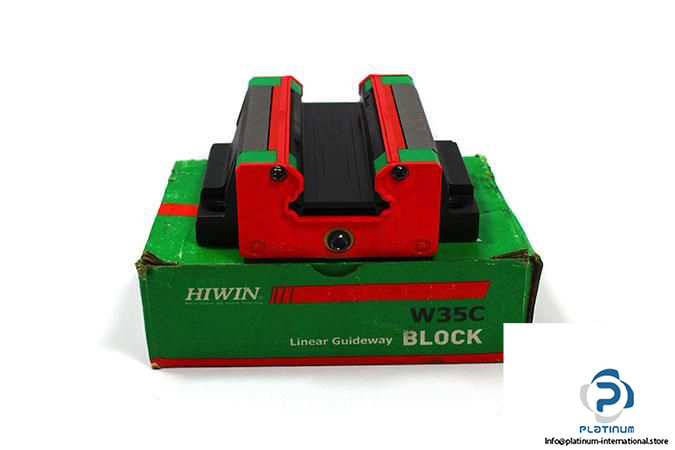

HIWIN HGW35CCC 206TY-51 LINEAR GUIDEWAY BLOCK
This high-performance linear guideway block from Hiwin is designed for heavy-load precision motion systems. Its flange-type design, robust construction, and top or bottom mounting versatility make it ideal for demanding industrial automation and CNC environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW35CCC 206TY-51
| Size | 35 mm |
| Block Height | 40.5 mm |
| System Height | 48 mm |
| Block Width (W) | 100 mm |
| Block Length (L) | 112.4 mm |
| Thread Size | M8x25 |
| Distance Between Holes | 82 mm, 62 mm |
| Rail Width | 34 mm |
| Rail Height | 29 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
| Basic Dynamic Load Rating | 64.6 kN |
| Basic Static Load Rating | 93.88 kN |
