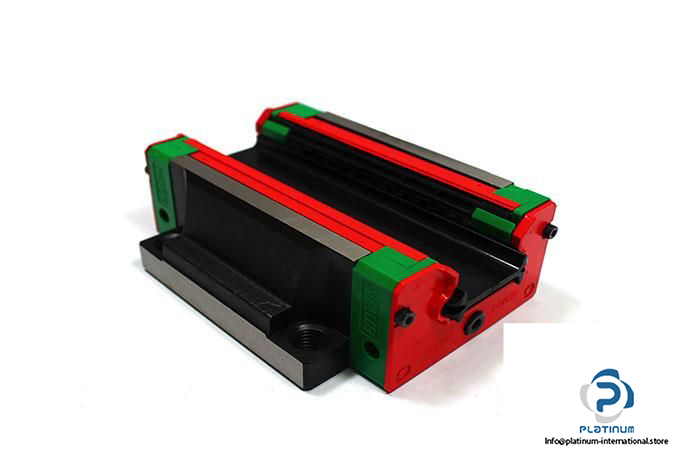

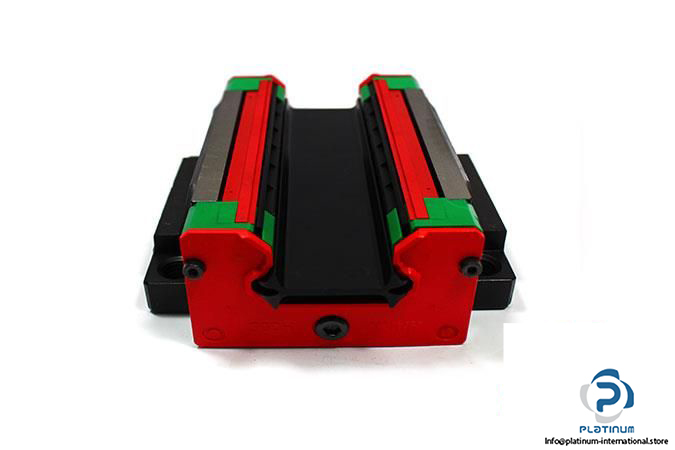

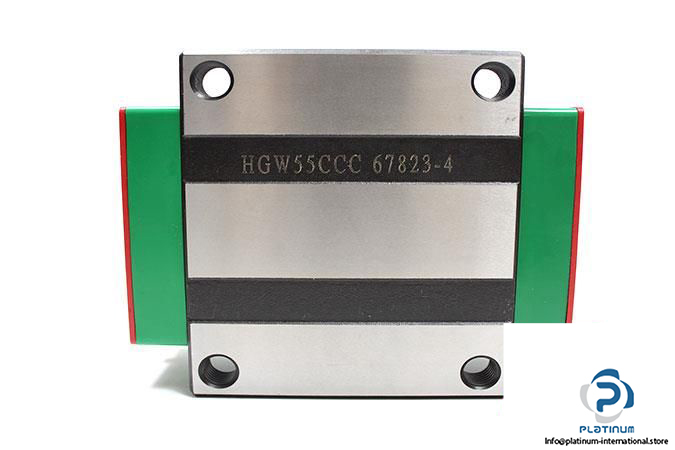

Hiwin HGW55CC Linear Guideway Block
Neu
Auf Lager2 EinheitenVersandbereit
175,00$
LINEAR GUIDEWAY BLOCK Hiwin Linearführungsblock für 55 mm Schienen, schwerlastausführung mit Flanschmontage und Top-Load-Konfiguration. Bietet hohe dynamische und statische Tragfähigkeit für Präzisionsanwendungen.
455567823-4BlockFlangeGuideGuidewayHeavyHGW55CCCHiwinIndustrialLinearLoadM14mmMotionMountingrailSystemTopx
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN HGW55CCC LINEAR GUIDEWAY BLOCK
The HGW55CCC linear guideway block from Hiwin is engineered for high-load and high-precision applications. With its heavy-duty flange design and robust dynamic/static load ratings, this block is ideal for demanding industrial automation and motion systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW55CCC 67823-4
| Size | 55 mm |
| Block Height | 57 mm |
| System Height | 70 mm |
| Block Width (W) | 140 mm |
| Block Length (L) | 166.7 mm |
| Thread Size | M14 x 45 |
| Distance Between Mounting Holes | 116 mm, 95 mm |
| Rail Width | 53 mm |
| Rail Height | 44 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 153.2 kN |
| Basic Static Load Rating | 211.23 kN |
