Hiwin LGW30CCC Linear Guideway Block
Gebraucht
Auf Lager4 EinheitenVersandbereit
150,00$
LINEARFÜHRUNGSBLOCK Schwere Flansch-Linearführungsblock von Hiwin, Modell LGW 30CCC, Größe 30 mm und hohe Lastkapazität, entwickelt für präzise Bewegungssteuerung in Industriesystemen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

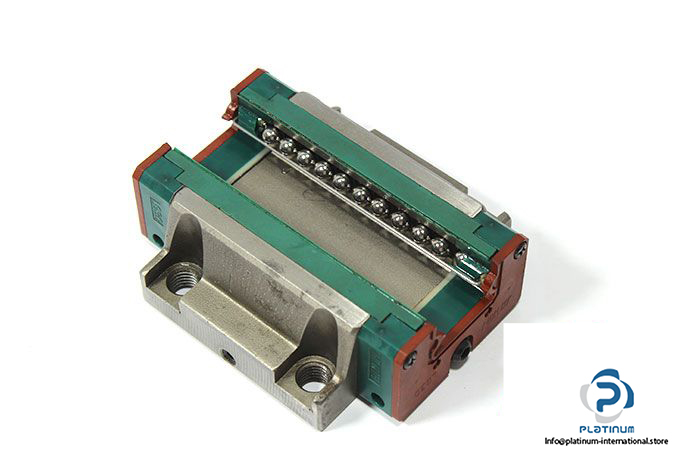

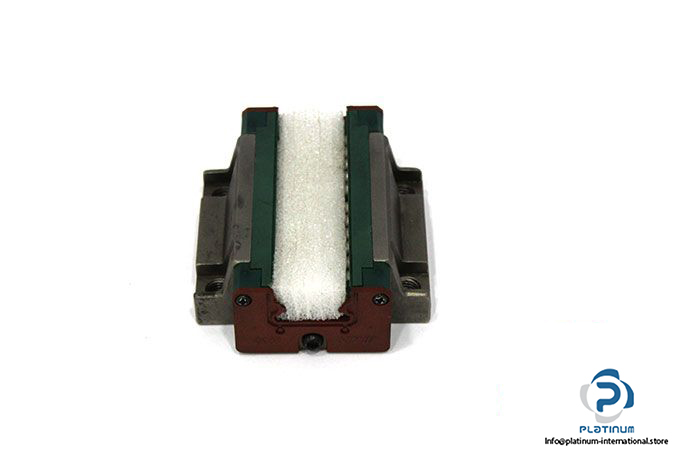

HIWIN LGW 30CCC LINEAR GUIDEWAY BLOCK
The Hiwin LGW 30CCC is a heavy-duty flange-type linear guideway block engineered for high-load applications in precision motion systems. With a robust 30 mm size and high load ratings, it ensures stability and smooth linear motion under demanding industrial conditions.
Manufacturer: Hiwin
Type: Linear Guideway Block

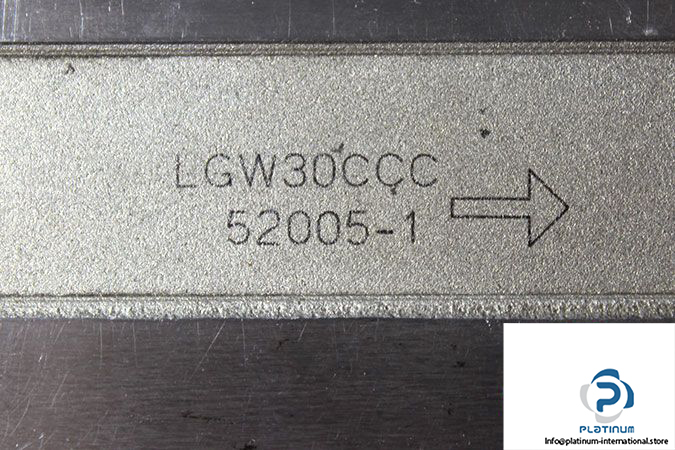

Model: LGW 30CCC
MPN: 52005-1
| Size | 30 mm |
| Total Height H | 42 mm |
| Block Width W | 90 mm |
| Block Length L | 104.4 mm |
| Block Height | 35 mm |
| Distance Between Holes | 72 mm, 52 mm |
| Dynamic Load Rating (Cr) | 3380 kgf |
| Static Load Rating (C0r) | 5460 kgf |
| Series | LGW |
| Block Type | W (Flange Type) |
| Load Type | C (Heavy Load) |
