Hiwin MGN12H Linear Guideway Block
Neu
Auf Lager30 EinheitenVersandbereit
31,23$
LINEAR GUIDEWAY BLOCK Hiwin MGN 12HH langer Block Linearführung mit 12 mm Schiene, hohe H-Klasse Präzision und 3,72 kN dynamischer Tragfähigkeit, ideal für präzise und kompakte Bewegungssysteme.
10991-501212HH3.72AccuracyBlockCompactGuideGuidewayHHighHiwinkNLinearLoadlongMGNmmMotionPrecisionrail
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

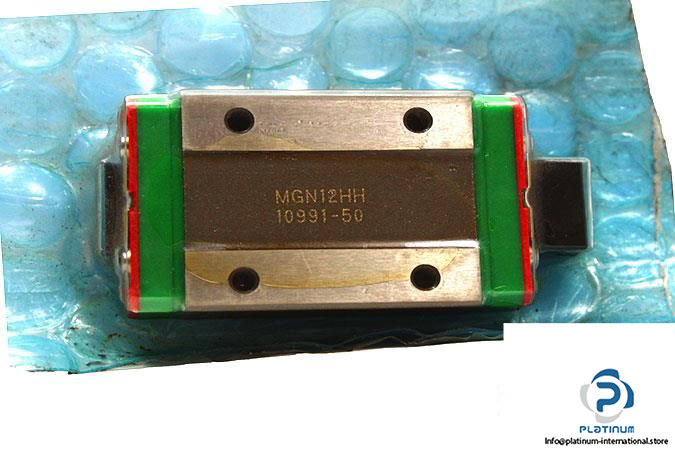

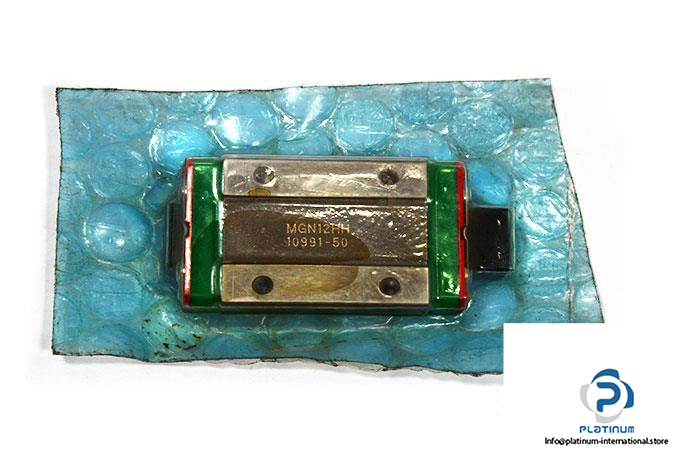

HIWIN MGN 12HH LINEAR GUIDEWAY BLOCK
The Hiwin MGN 12HH is a compact long-type linear guideway block, engineered for high-precision motion control applications. Built for smooth linear movement and reliable load handling, this block is ideal for compact automation systems, 3D printers, and CNC assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN 12HH 10991-50
Size: 12 mm
| Block Height | 10 mm |
| System Height | 13 mm |
| Block Width (W) | 27 mm |
| Block Length (L) | 45.4 mm |
| Distance Between Holes | 20, 20 mm |
| Thread Size | M3 × 8 |
| Rail Width | 12 mm |
| Rail Height | 8 mm |
| Block Type | Long |
| Precision Code | H |
| Basic Dynamic Load Rating | 3.72 kN |
| Basic Static Load Rating | 5.88 kN |
