Hiwin MGNR15R390 Rail Guide
Neu
Auf Lager150 EinheitenVersandbereit
Linear Guideway Rail
High-precision linear guideway rail, 15 mm size, 390 mm length, 40 mm pitch, and MGN15H block compatibility. Ideal for smooth linear motion in automation and machinery systems.AutomationbearingComponentsGuideGuidewayHiwinIndustrialLinearMachineMGN15HMGNR15R390MotionPrecisionrailSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

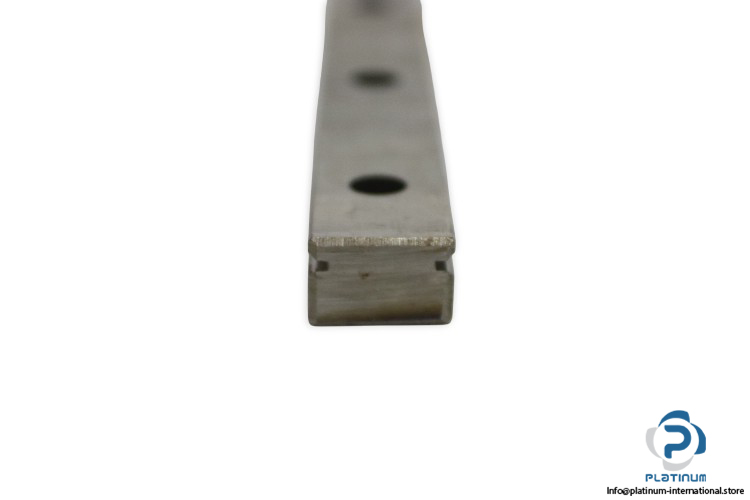

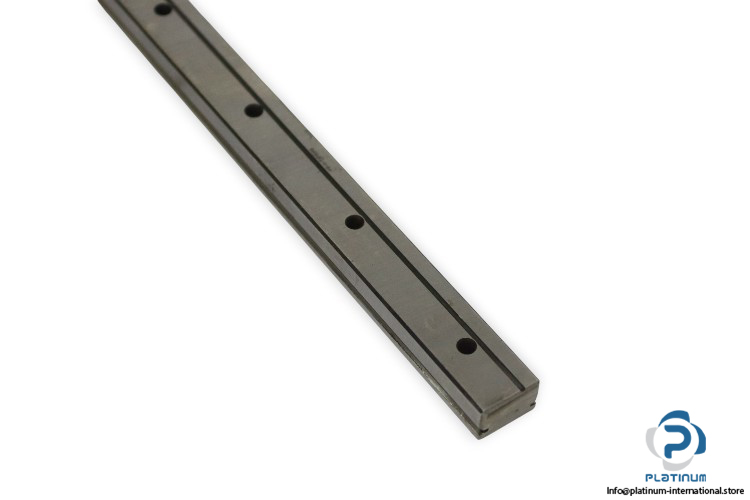

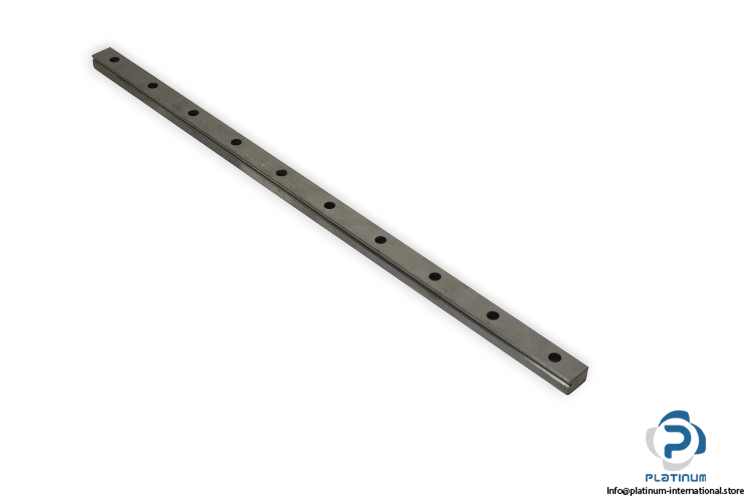

Hiwin MGNR15R390 Linear Guideway Rail
The Hiwin MGNR15R390 Linear Guideway Rail offers precise motion control and stable linear guidance for a variety of industrial automation and machinery applications. Built with high-quality materials and precision engineering, it ensures smooth operation and long service life.
Manufacturer: Hiwin
Type: Linear Guideway Rail
Model: MGNR15R390 / MGN 15 R 0390
Linear Guide Model: MGN15H

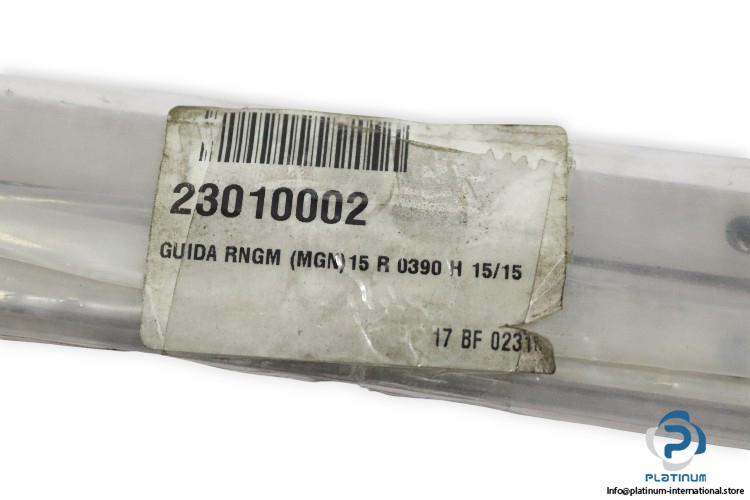

Code: 23010002 - H 15/15

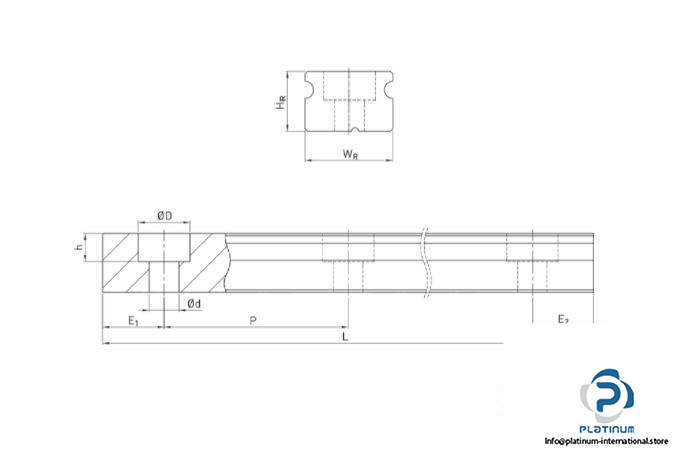

| Size | 15 mm |
| Rail Height (HR) | 10 mm |
| Rail Width (WR) | 15 mm |
| Rail Length (L) | 390 mm |
| Hole Pitch (P) | 40 mm |
| D | 6 mm |
| h | 4.5 mm |
| d | 3.5 mm |
| Note | We also provide the corresponding Linear Guideway Blocks in a wide range of dimensions “ please ask us if you need Linear Guideway Blocks to match your rails. |
