Hiwin QHH20CA Linear Guideway Block
Neu
Auf Lager10 EinheitenVersandbereit
59,01$
Schwerlast-Linearschlittenblock von Hiwin mit 20 mm Größe, quadratischem Design und oberer Montagefähigkeit, entwickelt für hochpräzise und langlebige Bewegungskontrollsysteme.
20BlockCNCComponentGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionmountPrecisionQHH20CArailSquareTop
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

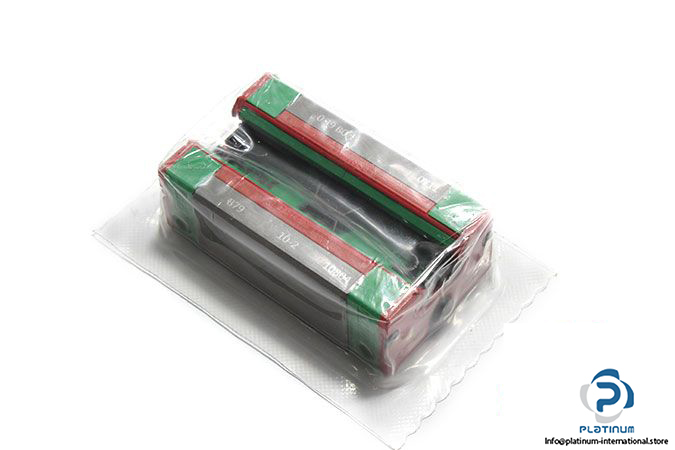

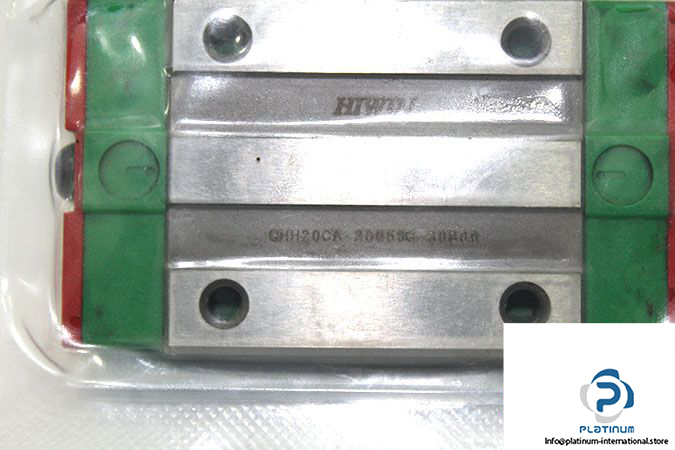

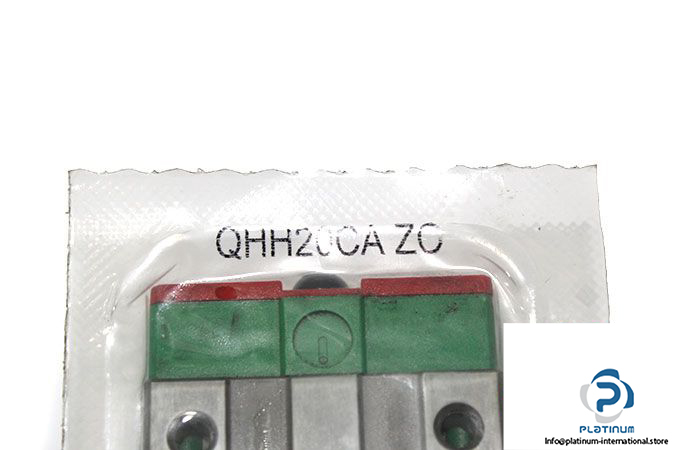

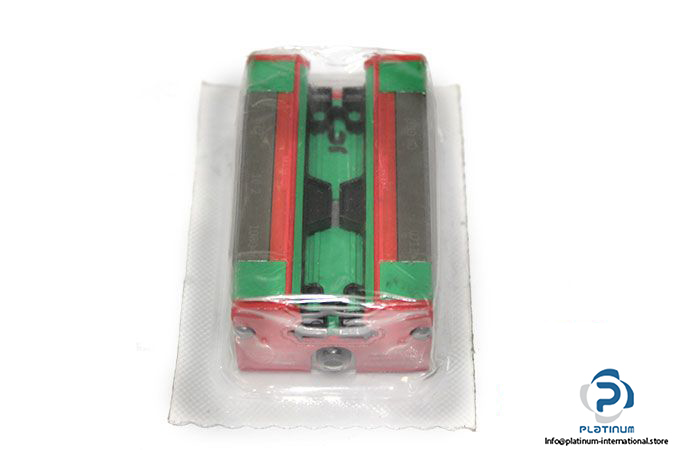

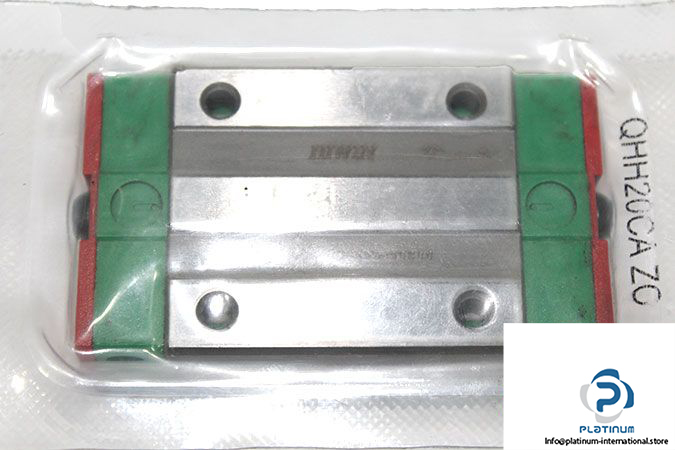

HIWIN QHH20CA LINEAR GUIDEWAY BLOCK
The Hiwin QHH20CA is a heavy-load linear guideway block designed for precise motion control in demanding industrial applications. With square-type geometry and top-mount design, it offers high rigidity, excellent load capacity, and reliable linear guidance.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH20CA
MRN: QHH20CA 200592-30B00
| Size | 20 mm |
| Total Height H | 30 mm |
| Block Width W | 44 mm |
| Block Length L | 76.7 mm |
| Block Height | 25.4 mm |
| Distance Between Holes | 32 mm, 36 mm |
| Basic Load Rating, Dynamic Cr | 30 kN |
| Basic Load Rating, Static C‚r | 33.86 kN |
| Block Type | H (Square Type) |
| Load Type | C (Heavy Load) |
| Block Mounting | A (Mounting from Top) |
