Hiwin QHW25CA Linear Guideway Block
Neu
Auf Lager4 EinheitenVersandbereit
LINEAR GUIDEWAY BLOCK Flanschtyp linearer Führungsblock von Hiwin, Modell QHW25CA, ausgelegt für schwere Lasten mit SynchMotion-Technologie, bietet hohe Präzision, sanfte Bewegung und erhöhte Haltbarkeit.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN QHW25CA LINEAR GUIDEWAY BLOCK
Engineered for high-load and high-precision linear motion, the Hiwin QHW25CA is a flange-type linear guideway block featuring SynchMotion„¢ Technology. Ideal for demanding industrial automation systems, it offers smooth movement, reduced friction, and high rigidity for long-term performance.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHW25CA

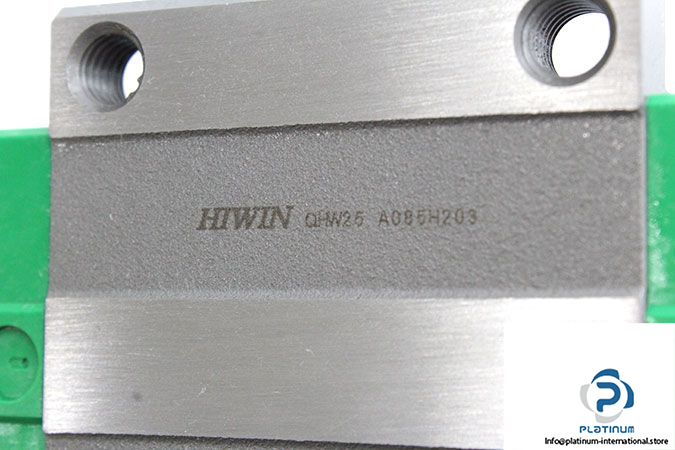

MRN: QHW25 A085H203
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 83.4 mm |
| Block Height | 30.5 mm |
| Distance Between Holes | 57 mm, 45 mm |
| Basic Load Rating - Dynamic (Cr) | 41.9 kN |
| Basic Load Rating - Static (C0r) | 48.7 kN |
| Series | QH Series; Heavy Load Type Linear Guideway with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
| Block Mounting | A; Mounting from Top |
