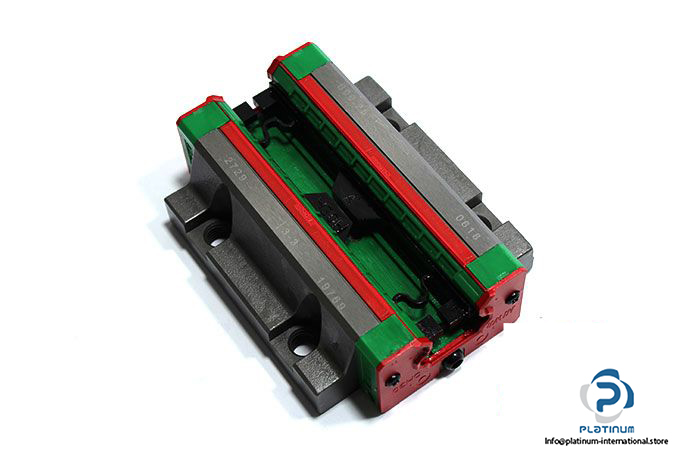

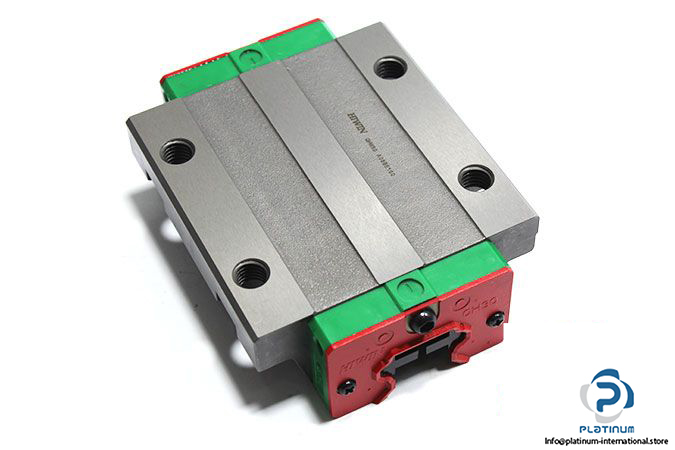

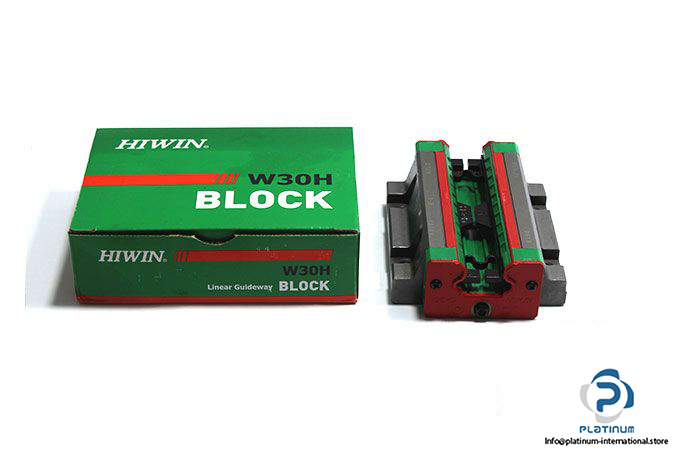

Hiwin QHW30HC Linear Guideway Block
Neu
Auf Lager10 EinheitenVersandbereit
142,96$
Schwerlast-Linearlagerblock aus der QH-Serie von Hiwin mit SynchMotion-Technologie, 30 mm Größe, quadratischer Typ und hoher Tragfähigkeit für präzise Automationssysteme.
30A08BE100BlockGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionQHQHW30QHW30HCSeriesSquareSynchMotiontechnologyType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN QHW30HC LINEAR GUIDEWAY BLOCK
The Hiwin QHW30HC is a heavy-load, square-type linear guideway block from the QH Series, engineered with SynchMotion Technology for smooth movement, reduced friction, and precise load distribution. Ideal for demanding automation and motion systems requiring consistent linear accuracy and long service life.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHW30HC

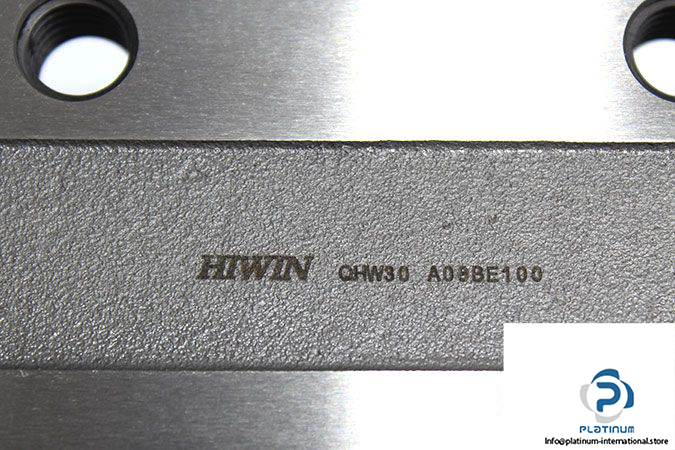

MRN: QHW30 A08BE100
Basic Load Ratings, Linear:
| Size | 30 mm |
| Total Height (H) | 42 mm |
| Block Width (W) | 90 mm |
| Block Length (L) | 120.4 mm |
| Block Height | 36 mm |
| Distance Between Holes | 72 mm, 52 mm |
| Dynamic Cr | 56.7 kN |
| Static C‚r | 65 kN |
| Series | QH Series; Heavy Load Type with SynchMotion Technology |
| Block Type | H (Square Type) |
| Load Type | C (Heavy Load) |
