Hiwin RGH20HA Linear Guideway Block
Neu
Auf Lager13 EinheitenVersandbereit
95,46$
LINEARER FÜHRUNGSBLOCK HIWIN RG-Serie Block mit quadratischem Design und Rollentyp für hohe Steifigkeit. Modell RGH20HA bewältigt super schwere Lasten mit präziser Top-Montage für fortschrittliche lineare Bewegungsanwendungen.
19005K-1080020BlockGuideGuidewayHeavyHighHiwinLinearLoadmmMountingrailRGRGH20HARGH20HAHrigidityRollerSeriesSquareTopType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

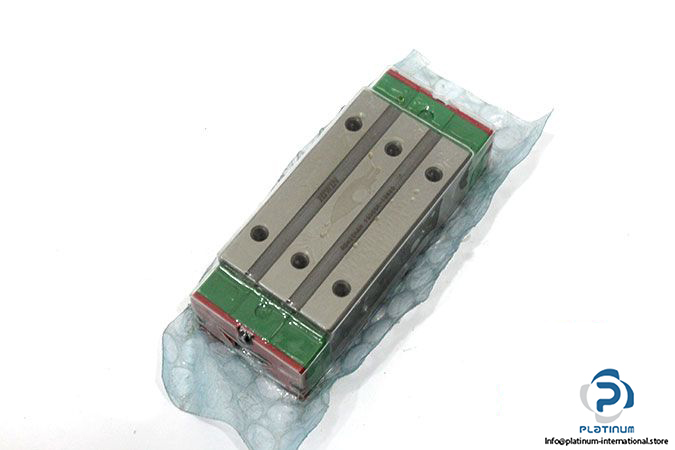

HIWIN RGH20HA LINEAR GUIDEWAY BLOCK
This high-rigidity linear guideway block from HIWIN's RG Series features a roller-type design optimized for super heavy loads. With top-mounting and a square block structure, it ensures superior stability and precision in demanding automation and machine-building environments.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: RGH20HA

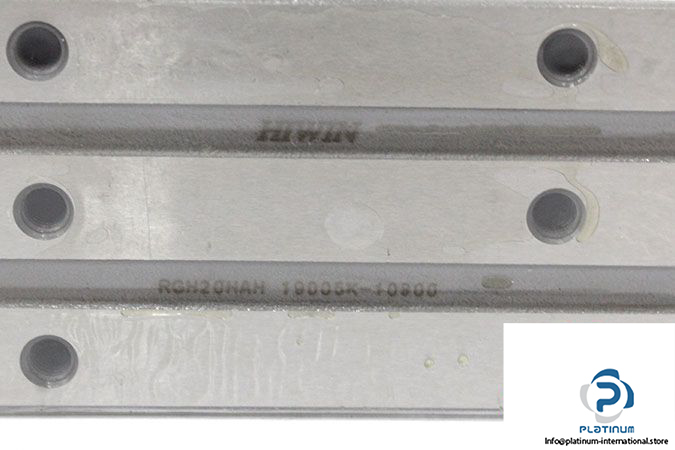

MRN: RGH20HAH 19005K-10800
| Size | 20 mm |
| Total Height H | 34 mm |
| Block Width W | 44 mm |
| Block Length L | 106 mm |
| Block Height | 29 mm |
| Distance Between Holes | 32, 50 mm |
| Dynamic Load Rating Cr | 26.9 kN |
| Static Load Rating C0r | 63 kN |
| Series | RG Series; High Rigidity Roller Type Linear Guideway |
| Block Type | H; Square Type |
| Load Type | H; Super Heavy Load |
| Block Mounting Type | A; Mounting from Top |
