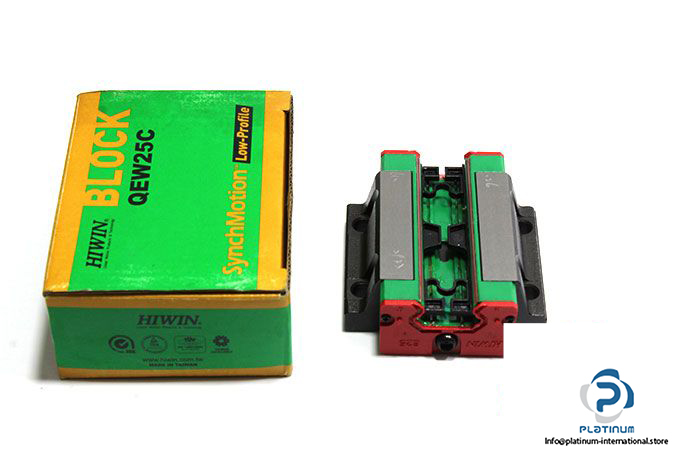

Hiwin QEW25CB Linear Guideway Block
Neu
Auf Lager4 EinheitenVersandbereit
LINEAR GUIDEWAY BLOCK Hiwin QEW25CBH ist ein flaches Linearführungselement mit Flanschmontage und SynchMotion™-Technologie, entwickelt für hohe Lasten und leise, gleichmäßige Bewegung in Präzisionsautomationssystemen.
25BlockBottomFlangeGuideGuidewayHeavyHiwinLinearLoadlowmmMotionmountPrecisionProfileQEQEW25CBHrailSeriesSynchMotionType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

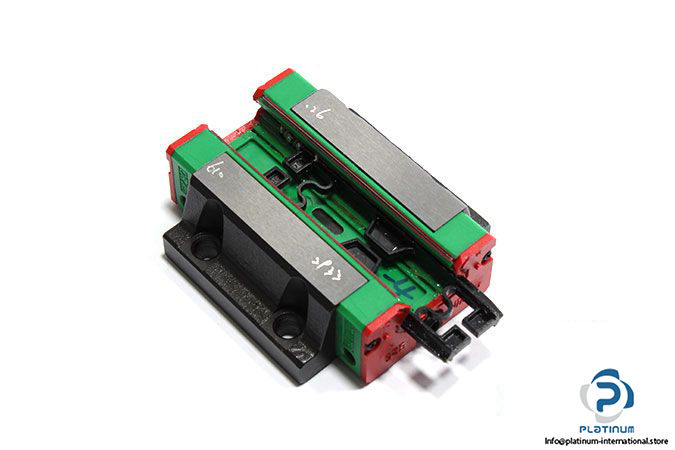

HIWIN QEW25CBH LINEAR GUIDEWAY BLOCK
The Hiwin QEW25CBH is a precision-engineered, low-profile linear guideway block designed for high-performance motion systems. With SynchMotion„¢ Technology and heavy load capability, it provides smooth, quiet movement with superior load ratings and rigidity in compact assemblies.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QEW25CBH

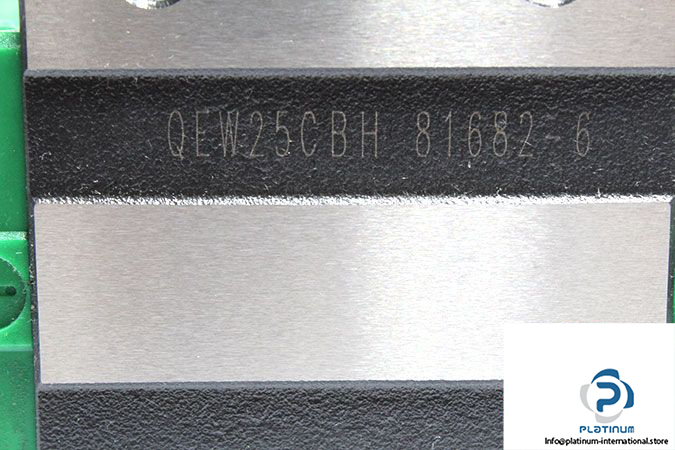

MRN: QEW25CBH 81682-6
Basic Load Ratings, Linear:
| Size | 25 mm |
| Total Height H | 33 mm |
| Block Width W | 73 mm |
| Block Length L | 83.6 mm |
| Block Height | 26.8 mm |
| Distance Between Holes | 60 mm, 35 mm |
| Dynamic Cr | 26 kN |
| Static C0r | 31.49 kN |
| Series | QE Series; Low Profile Linear Guideway with SynchMotion Technology |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
| Block Mounting | B; Bottom |
