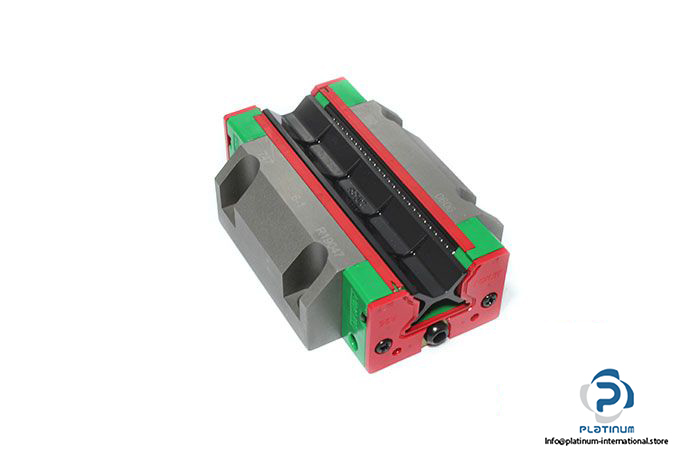

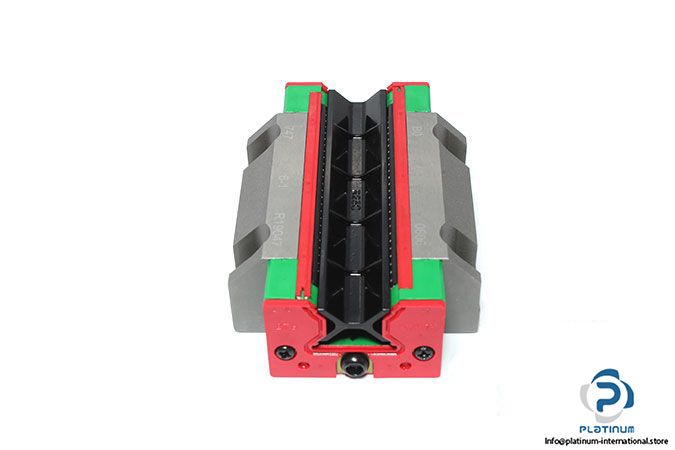

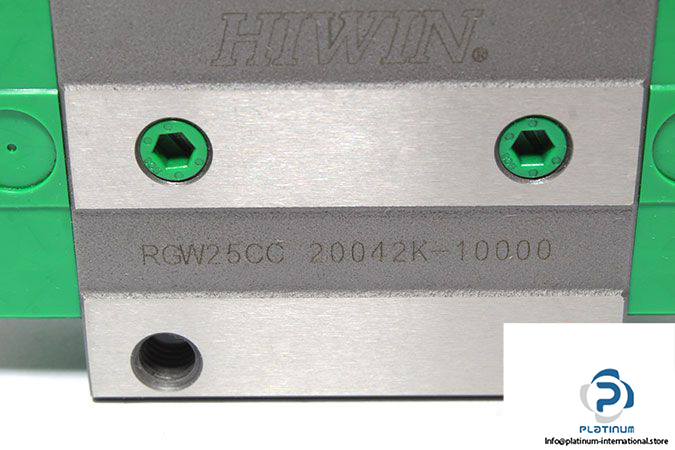

Hiwin RGW25CC Linear Guideway Block
Neu
Auf Lager38 EinheitenVersandbereit
145,78$
Schwere Linearführungsschiene Hiwin RGW 25CC Linearführungsschienenblock mit 25 mm Größe, Flanschgehäuse und Rollendesign für hohe Steifigkeit und Genauigkeit in oben oder unten montierten Systemen.
2525CCBlockBottomComponentFlangeGuideGuidewayHeavyHiwinIndustrialLinearLoadM8mmMotionmountrailRGWRollerSystemTopType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN RGW 25CC LINEAR GUIDEWAY BLOCK
The Hiwin RGW 25CC is a heavy-load linear guideway block featuring roller-type motion for high rigidity and precision. Designed for demanding industrial applications, it supports both top and bottom mounting with a flange-style structure, delivering enhanced load-bearing capacity and accuracy.
Manufacturer: Hiwin
Type: Linear Guideway Block Roller Type
Model: RGW 25CC
| Size | 25 mm |
| Total Height H | 36 mm |
| Block Width W | 70 mm |
| Block Length L | 97.9 mm |
| Block Height | 30.5 mm |
| Thread Size | M8 |
| Distances Between Holes | 57 mm, 45 mm |
| Basic Dynamic Load Rating C | 27.7 kN |
| Basic Static Load Rating C‚ | 57.1 kN |
| Rail Width | 23 mm |
| Rail Height | 23.6 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
