Hiwin RGW45 HC Linear Guideway Block
Neu
Auf Lager12 EinheitenVersandbereit
248,73$
LINEAR GUIDEWAY BLOCK HIWIN RGW45-HC Flanschtyp Linearführungsblock mit 45 mm Größe, super schwerer Lastauslegung und hoher Steifigkeit für anspruchsvolle industrielle Linearbewegungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
HIWIN RGW45-HC LINEAR GUIDEWAY BLOCK
The HIWIN RGW45-HC is a high-performance linear guideway block designed for demanding industrial applications. Featuring super heavy load capacity, high rigidity, and a flange-type design, it is ideal for precision linear motion systems in automation, CNC, and heavy-duty equipment.
Manufacturer: HIWIN
Type: LINEAR GUIDEWAY BLOCK
Model: RGW45-HC

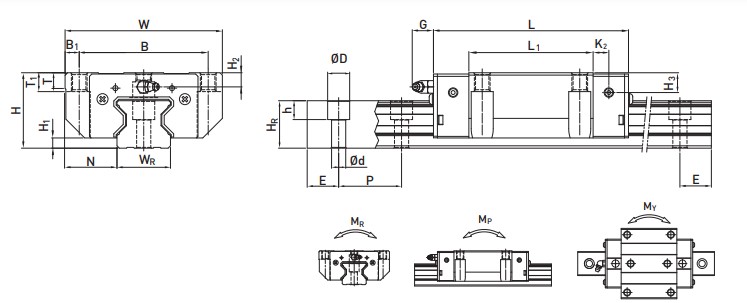

| Size | 45 mm |
| Total Height H | 60 mm |
| Block Width W | 120 mm |
| Block Length L | 187 mm |
| Block Height | 52 mm |
| B | 100 mm |
| C | 80 mm |
| Dynamic Load Rating Cr | 116 kN |
| Static Load Rating C0r | 230.9 kN |
| Series | RG Series; High Rigidity Roller Type |
| Block Type | W (Flange Type) |
| Load Type | H (Super Heavy Load) |
| Block Mounting Type | C (Top or Bottom Mount) |
