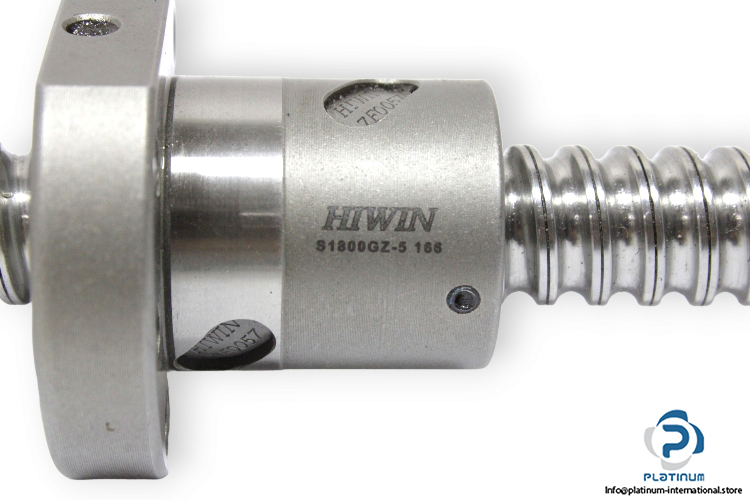

Hiwin S1800GZ-5 Ball Screw
Gebraucht
Auf Lager1 EinheitVersandbereit
Flanschmutter-Kugelgewindetrieb Hiwin R16-05T3-FSIDIN Präzisions-Kugelgewindetrieb mit 16 mm Durchmesser und 5 mm Steigung, entwickelt für präzise und hochbelastbare Linearbewegungen in CNC- und Automatisierungsanwendungen.
1616055BallCNCflangedHighHiwinleadLinearLoadmmMotionnutPitchPrecisionR16-05T3-FSIDINRight-HandscrewThread
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

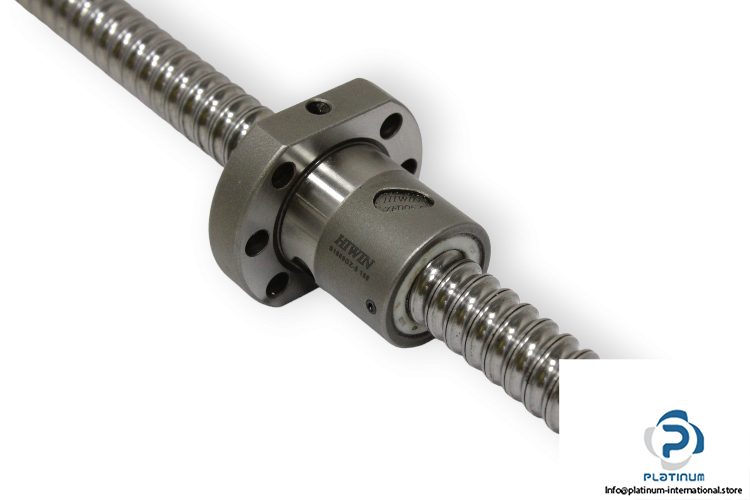

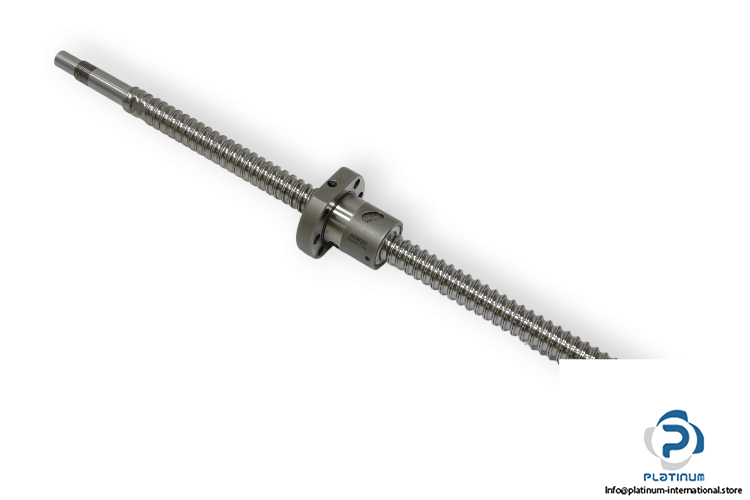

HIWIN R16-05T3-FSIDIN FLANGED NUT BALL SCREW
This precision-engineered flanged nut ball screw from Hiwin is designed for high-accuracy linear motion applications. With a 16 mm nominal diameter, 5 mm lead, and right-hand thread, it delivers reliable performance and high load capacities for CNC and automation systems.
Manufacturer: Hiwin
Type: Flanged Nut Ball Screw
Model: R16-05T3-FSIDIN
Size: 1605R
Nut Dimensions
| Nominal Diameter | 16 mm |
| Lead | 5 mm |
| Direction of Lead | Right-Hand Thread |
| Dynamic Load Rating | 8100 N |
| Static Load Rating | 11700 N |
| Shaft Path Length | 310 mm |
| Shaft Total Length | 380 mm |
| Flange Diameter D1 | 48 mm |
| Nut Diameter D | 28 mm |
| Nut Length L | 40 mm |
| Flange Thickness L1 | 10 mm |
| L2 | 10 mm |
| B | 48 mm |
| D2 | 38 mm |
| D3 | 5.5 mm |
