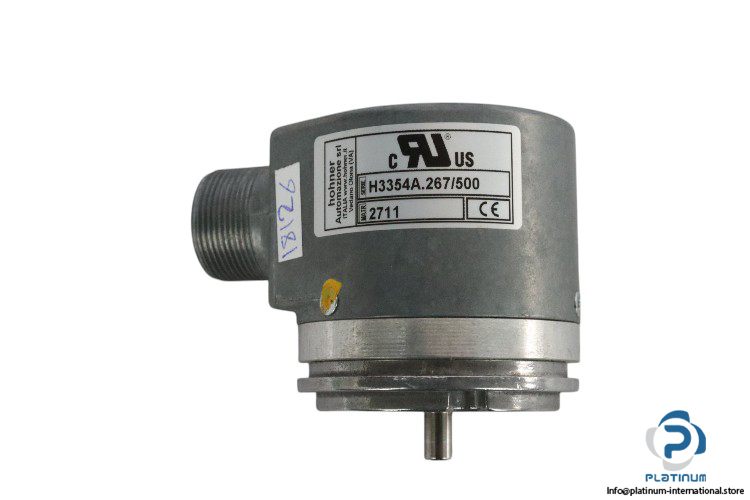

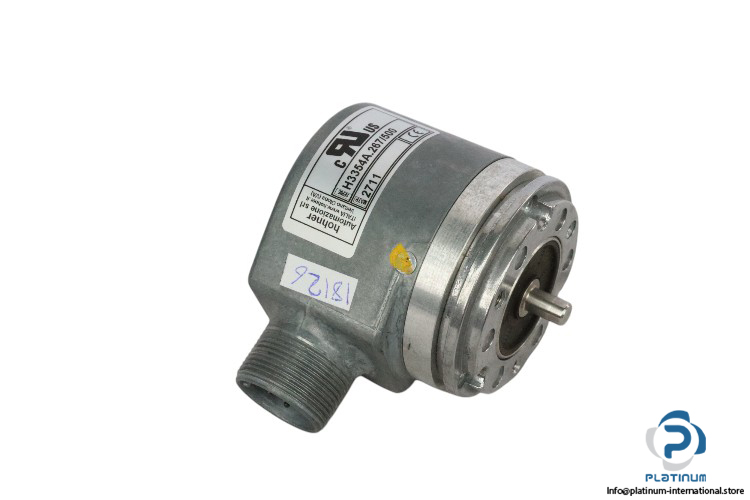

Hohner H3354A.267/500 Incremental Encoder
Hochleistungs-Inkrementalgeber mit massivem Wellenzapfen, 500 PPR Auflösung und IP65 Schutz. Entwickelt für präzise Bewegungssteuerung in der Industrieautomation.
Hohner H3354A.267/500 Incremental Encoder
The Hohner H3354A.267/500 is a high-precision incremental encoder designed for accurate position and speed feedback in industrial automation applications. It features a solid shaft design, high-resolution output, and durable construction, making it ideal for demanding environments.
Key Details:
Manufacturer: Hohner
Type: Incremental Encoder
Model: H3354A.267/500
Part No.: 2711
With its rugged IP65 protection rating and high-speed pulse output, the Hohner H3354A.267/500 is a reliable choice for motion control systems, ensuring precise positioning and feedback for automation, robotics, and CNC applications.
| Shaft Type | Solid Shaft |
| Operating Voltage | 5 to 24 V DC |
| Current Consumption | Max. 90 mA |
| Max. Pulse Frequency | Max. 150 kHz |
| Shaft Diameter | 6 mm |
| Resolution | 500 PPR (Pulses per Revolution) |
| Flange | 58 mm round flange with 3 x M4 mm holes |
| Protection Degree | IP65 |
| Signal Output | A B + A B |
| Connection | Connector 7-pins |
| Starting Torque | 5 N.cm |
| Shaft Material | Stainless Steel |
| Housing Material | Aluminum |
| Operating Temperature | -20 to +60 °C |
