Hollmuller HTP2 0.55/50 Semi-Submersible Chemical Pump
Gebraucht
Auf Lager1 EinheitVersandbereit

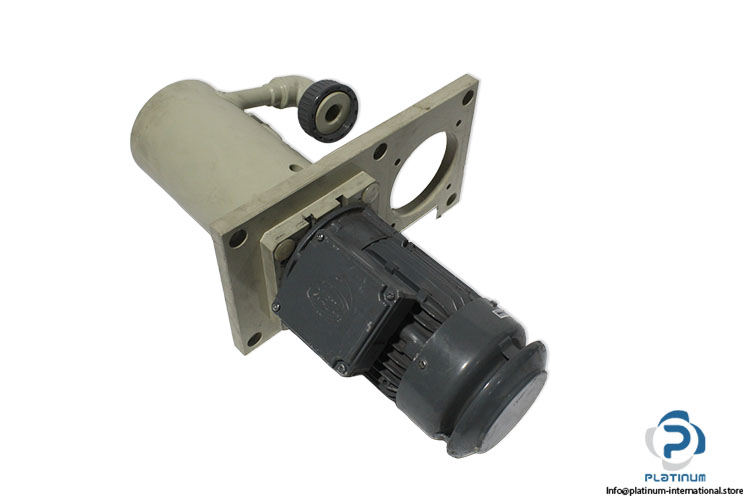

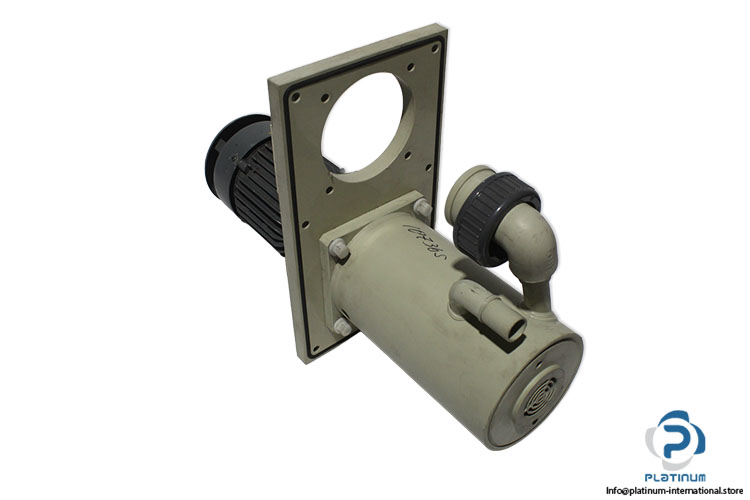

Semi-Submersible Chemical Pump The Hollmuller HTP2 0.55/50 is a semi-submersible chemical pump with a 0.55 kW DIETZ-MOTOREN electric motor, engineered for reliable chemical transfer and continuous industrial operation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

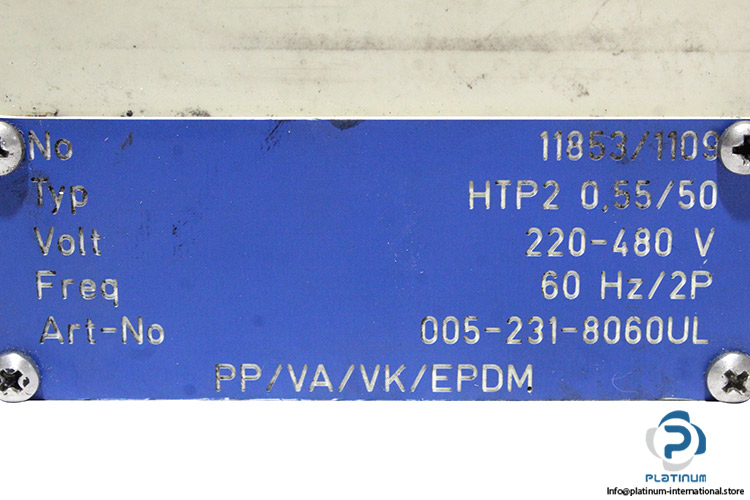

| Art no. | 005-231-8060UL |
| Part No. | 11853/1109 |
| Rated Voltage [V] | 220-480 |
| Rated Frequency [Hz] | 60 |
| Materials Composition | PP / VA / VK / EPDM |

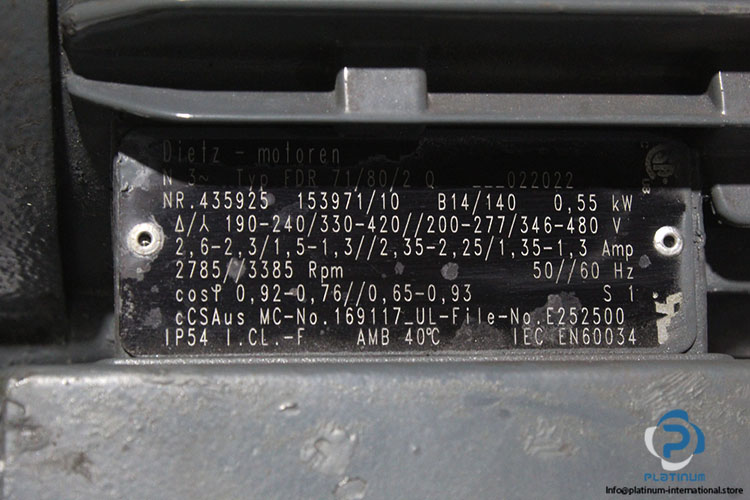

| Attached with | DIETZ-MOTOREN FDR 71/80/2 Q ELECTRIC MOTOR |
| Mounting / Frame Size | B14 / 140 |
| Operation Speed At 50 Hz | 2785 Rpm |
| Power Factor At 50 Hz | 0.92 – 0.76 |
| Voltage At 50 Hz Delta Connection | 190 – 240 V |
| Current At 50 Hz Delta Connection | 2.6 – 2.3 A |
| Voltage At 50 Hz star Connection | 330 – 420 V |
| Current At 50 Hz star Connection | 1.5 – 1.3 Amp |
| Operation Speed At 60 Hz | 3385 Rpm |
| Power Factor At 60 Hz | 0.65 – 0.93 |
| Voltage At 60 Hz Delta Connection | 200 – 277 V |
| Current At 60 Hz Delta Connection | 2.35 – 2.25 A |
| Voltage At 60 Hz star Connection | 346 – 480 V |
| Current At 60 Hz star Connection | 1.35 – 1.3 Amp |
| Power Output | 0.55 kW |
| Duty Cycle | S1 (Continuous duty) |
| Insulation Class | I.Cl. - F (Up to 155°C) |
| Enclosure Rating | IP54 (Dust and splash protection) |
| Ambient Temperature | AMB 40°C (Maximum standard operating temperature) |
| Standards | IEC EN60034 |
| Certifications | cCSAus, UL File No. E252500 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100542 |
| Weight | 14,55 |
