Honeywell 1LS19-4PG Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
19,99$
Limit Switch
Honeywell 1LS19-4PG LS Series limit switch with SPDT double break circuitry, 250 Vac / 125 Vdc max supply, 10 A contact rating, side rotary actuator 38.1 mm, and -30 °C to 70 °C operating range.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

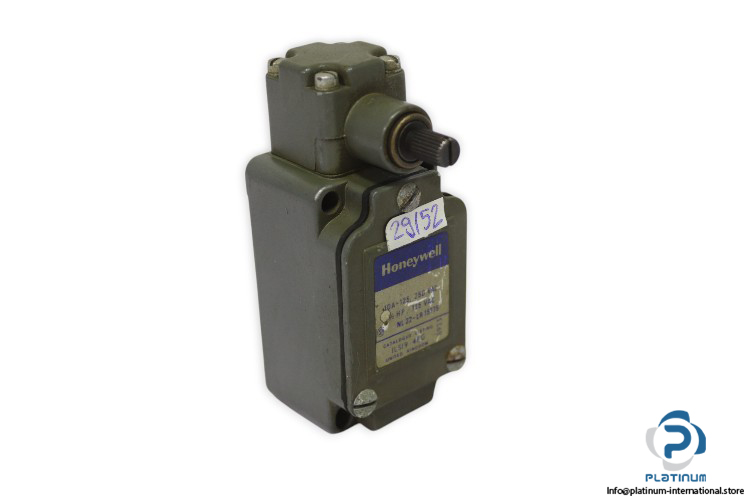

Honeywell 1LS19-4PG Limit Switch
The Honeywell 1LS19-4PG is a durable limit switch from the LS Series, designed for reliable position sensing and control in industrial environments. Built with robust housing and precise actuation, it ensures consistent performance under demanding conditions.
Manufacturer: HONEYWELL
Type: Limit Switch
Model: 1LS19-4PG
Series: LS

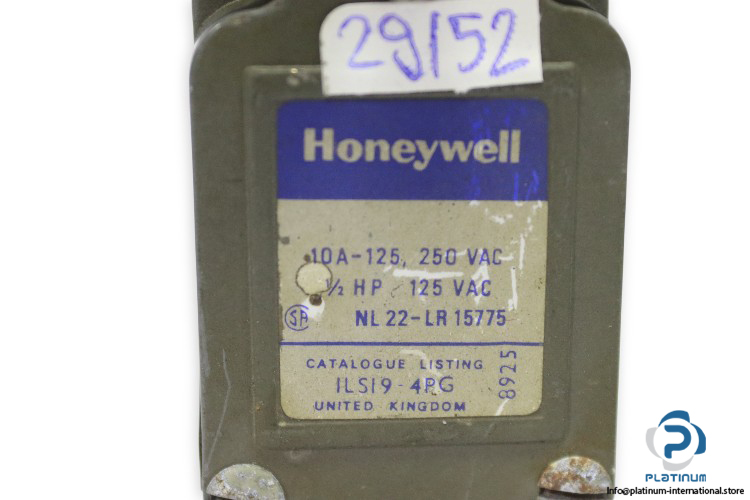

Ref No.: NL22-LR 15775 / 8925
| Circuitry | Single Pole Double Throw (SPDT) Double Break |
| Supply Voltage | 250 Vac max. / 125 Vdc max. |
| Housing Material | - |
| Actuator Type | Side Rotary w/ 38.1 mm |
| Switching Voltage (Max) | 250 V AC |
| Contact Current (Max) | 10 A |
| Connection | Cable Entry |
| Operating Temperature Range | -30 °C to 70 °C |
