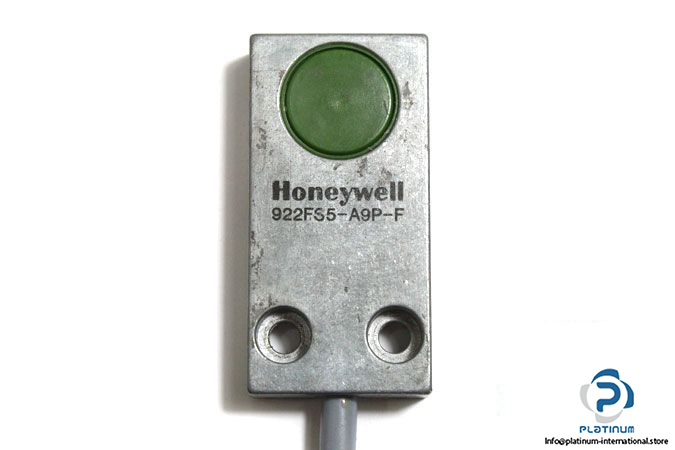

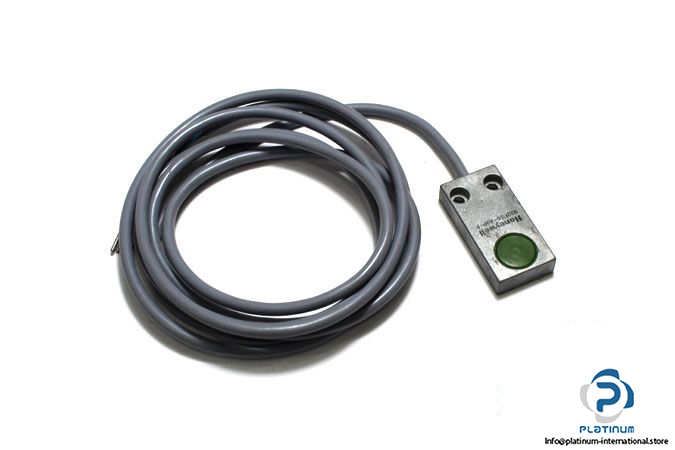

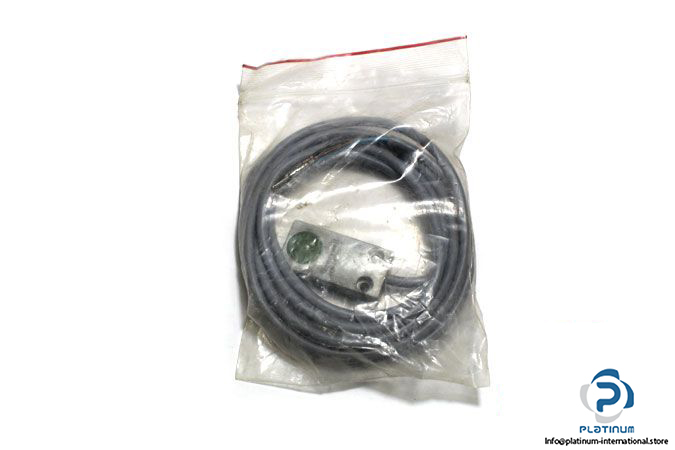

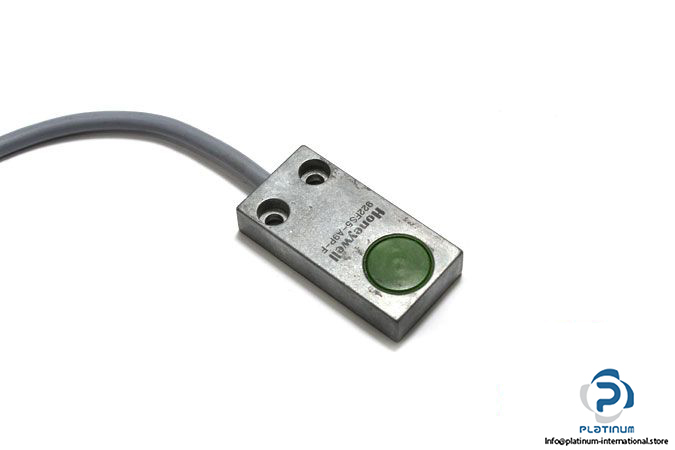

Honeywell 22FS5-A9P-F Inductive Proximity Sensor

Manufacturer: HONEYWELL

Type: INDUCTIVE PROXIMITY SENSOR

Model: 22FS5-A9P-F

Sensing Range: 5 mm

Operating Voltage: 9.6 … 55 V DC

Load Current: 0 … 200 mA

Electrical Design: PNP

Switching Output: Normally open

Connector Type: Cable

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 85°C

Dimensions: 25 x 10 x 50 mm

Weight: 120 g

Housing Material: Pressure-cast zinc

Sensing Face Material: Polyamide
