Honeywell 8LS1-4PG Limit Switch
Neu
Auf Anfrage verfügbar
50,00$
Limit Switch
Honeywell 8LS1-4PG limit switch with DPDT contacts, wobble coil spring actuator, IP67 protection, and die-cast zinc housing for industrial reliability.8LS1-4PGActuatorcoilContactdie-castDpdtHighHoneywellIndustrialIP67LimitspringSwitchvoltageWobbleZinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

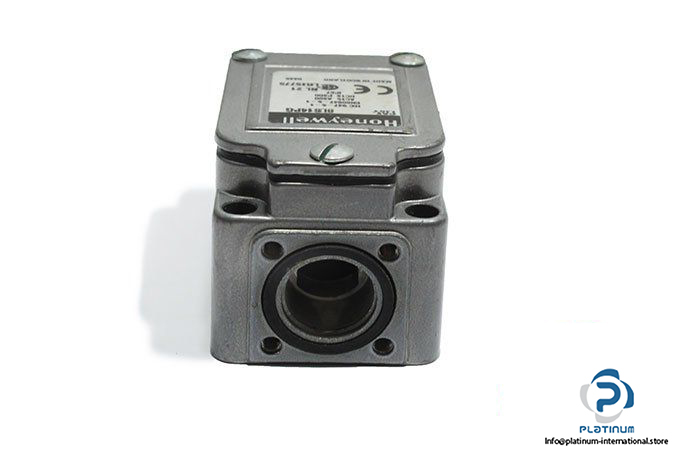

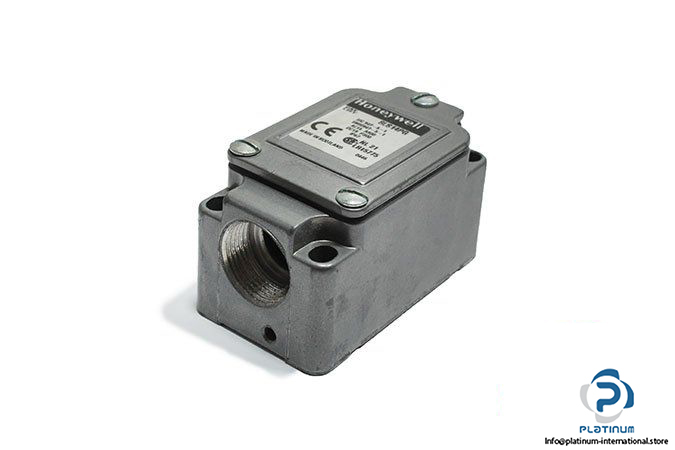

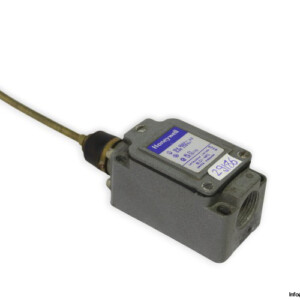

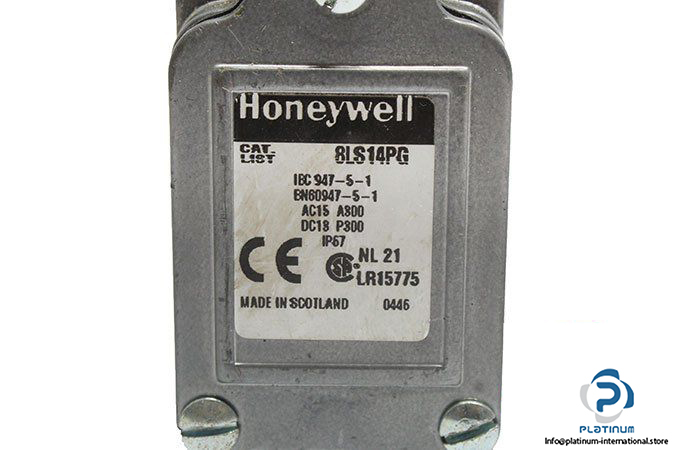

Honeywell 8LS1-4PG Limit Switch
The Honeywell 8LS14PG is a rugged industrial limit switch designed for reliable operation in demanding environments. With a durable die-cast zinc body, wobble coil spring actuator, and IP67 protection, it ensures precision and long service life in automation and control systems.
Manufacturer: HONEYWELL
Type: Limit Switch
Model: 8LS1-4PG
| Rated Voltage | 500 V AC / 230 V DC |
| Rated Current | 10 / 0.4 A |
| Frequency | 50 / 60 Hz |
| Contact | DPDT 2 Changeover (CO) |
| Actuator Type | Wobble Coil Spring (141 mm) |
| Material | Die-Cast Zinc |
| Protection Class | IP67 |
| Temperature Range | -30 / 70 °C |
| Dimensions | 204.4 x 40 x 35.05 mm |
