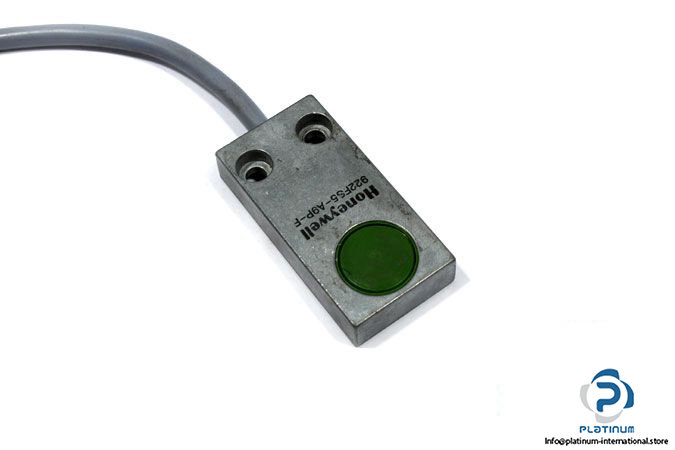

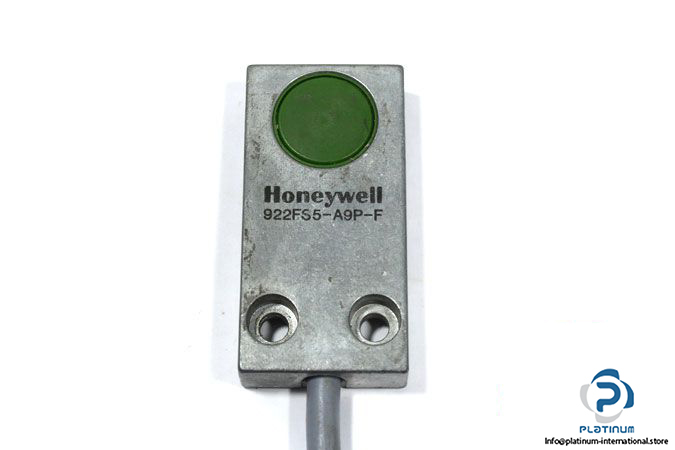

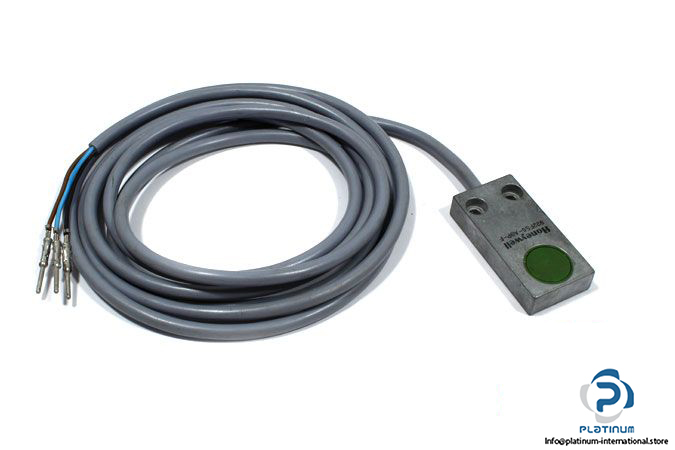

Honeywell 922FS5-A9P-F Inductive Proximity Sensor

Manufacturer: HONEYWELL

Type: INDUCTIVE PROXIMITY SENSOR

Model: 922FS5-A9P-F

Sensor type: 3-wire DC

Sensing range: 5 mm

Operating Voltage: 9.6 … 55 V DC

Load current: 0 … 200 mA

Electrical design: PNP

Switching output: Normally open

Connector type: 3-wire DC

Enclosure rating: IP67

Ambient Operating temperature: -25 … 85°C

Dimensions: 25 x 10 x 50 mm

Weight: 115 g

Housing material: Pressure-cast zinc

Sensing face material: Polyamide
