Honeywell C6045D 1043 1 Pressure Switch
Neu
Auf Anfrage verfügbar
188,88$
Druckschalter Honeywell C6045D 1043-1 Druckschalter für Luft und neutrale Gase mit einstellbarem Niederdruckbereich und Netzspannungs-SPDT-Kontakt.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

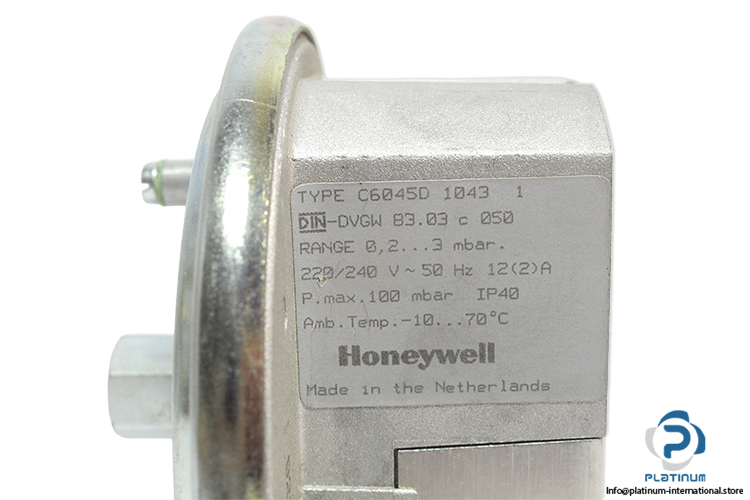

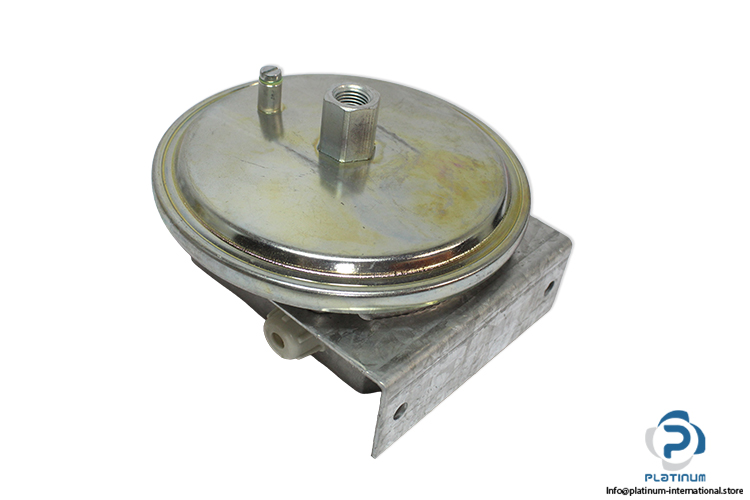

Honeywell C6045D 1043-1 Pressure Switch
The Honeywell C6045D 1043-1 is a reliable pressure switch designed for monitoring air and neutral gases in industrial control systems. It provides accurate pressure switching within a defined low-pressure range and is suitable for line-voltage applications.
Manufacturer: Honeywell
Type: Pressure Switch
Model: C6045D 1043-1
| Medium | Air and Neutral Gases |

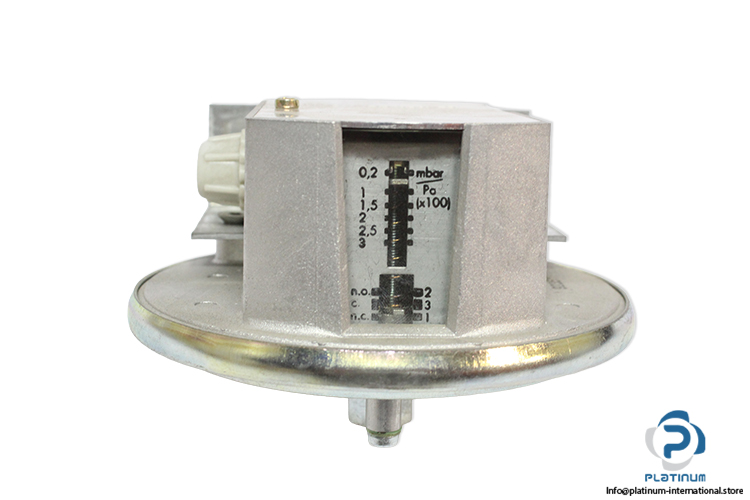

| Set Point Range | 0.2 / 3 mbar |
| Maximum Operating Pressure | 100 mbar |
| Rated Voltage | 220 / 240 V AC |
| Rated Current | 12 (2) A |
| Frequency | 50 Hz |
| Contact Type | SPDT |
| Electrical Connection | 3-Wire Line Voltage |
| Pneumatic Connection | G 1/4, G 1/8 |
| Protection Class | IP40 |
| Temperature Range | -10 / +70 °C |
| Standard | DIN-DVGW 83.03 c 050 |
