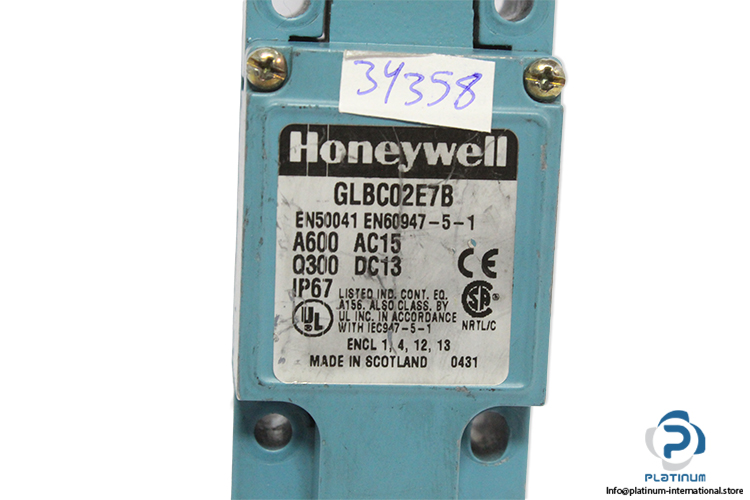

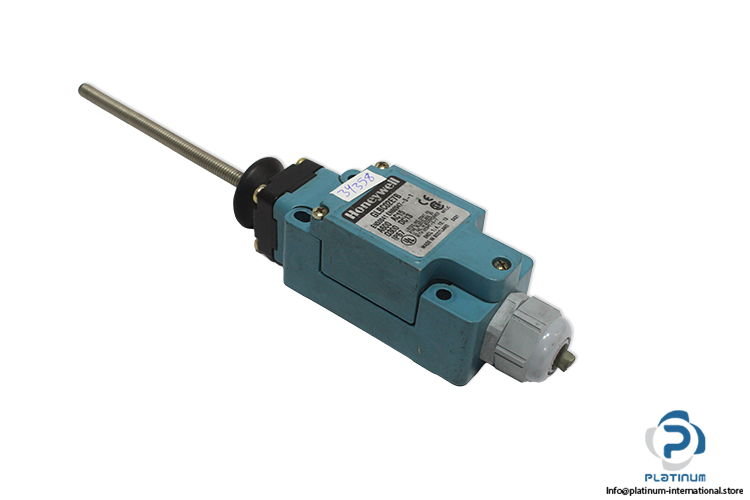

Honeywell GLBC02E7B Coil Spring Limit Switch
Globaler Grenzschalter HONEYWELL GLBC02E7B EN50041/47 globaler Grenzschalter mit SPDT-Kippschalter, Gehäuse aus Zinkdruckguss, IP67 Abdichtung und großem Betriebstemperaturbereich für industrielle Automatisierungsanwendungen.
HONEYWELL GLBC02E7B Global Limit Switch
The HONEYWELL GLBC02E7B is a robust EN50041/47 global limit switch designed for precise position detection and reliable switching performance in industrial automation environments. Built with a zinc die-cast housing and high sealing protection, it ensures durability under demanding operating conditions.
Manufacturer: HONEYWELL
Type: Global Limit Switch
Model: GLBC02E7B
Product Type: EN50041/47 Global Limit Switch
Series Name: GLS DIN
Housing Type: EN 50041 + Plug-in
Housing Material: Zinc Die-Cast
Termination Type: 20 mm
Actuator: Wobble - Coil Spring
Circuitry: 1NC 1NO SPDT Snap Action
| Operating Force (O.F.) | 0,1 N [0.90 in lb] |
| Pretravel (P.T.) | 18° |
| Differential Travel (D.T.) | 8° |
| Ampere Rating | 10 A (Thermal) |
| Supply Voltage | 600 Vac and 250 Vdc max. |
| Shock | 50 g per IEC 68-2-27c (w/o Actuator) |
| Vibration | 10 g per IEC 68-2-6 (w/o Actuator) |
| Sealing | NEMA 1, 4, 12, 13 IP67 |
| Operating Temperature Range | -25 °C to 85 °C |
| Standard | EN50041 EN50047-5-1 |
| Approvals | UL, CSA, CE |
