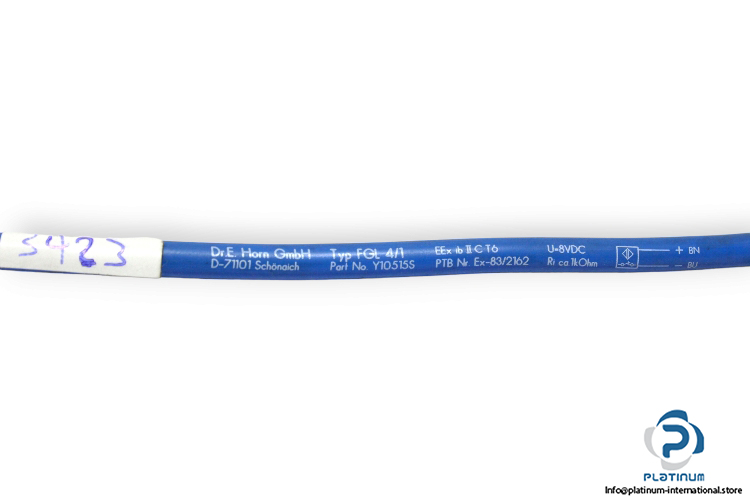

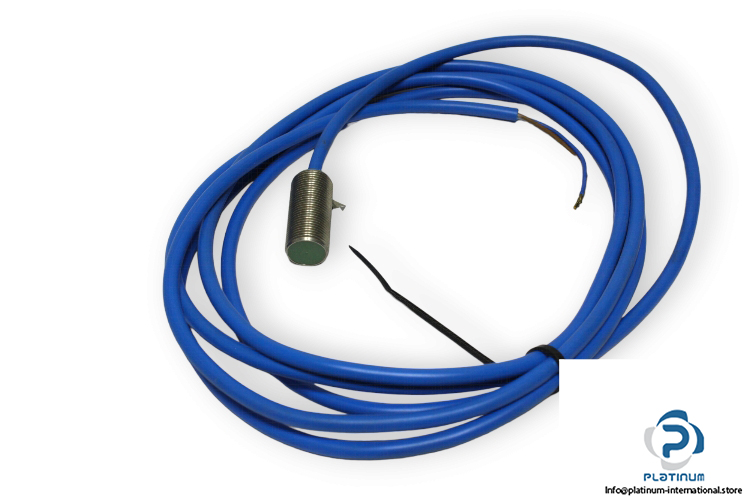

Horn FGL 4/1 Oscillator Pulse Sensor

Manufacturer: HORN
Type: Oscillator Pulse Sensor
Model: FGL 4/1
MRN: Y10515S

Operating Voltage: 8,2 V DC
Signal voltage: > 1,2 Vss
Nominal Value: Ri= 1 kΩ ± 50Ω
Frequency Range: 0…1 kHz
Sampling Distance: approx. 1,4 mm
Operating Temperature: -25 … 100°C
