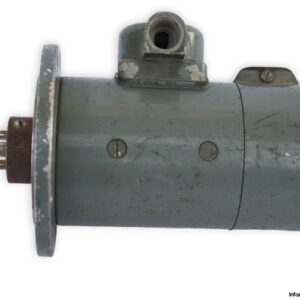

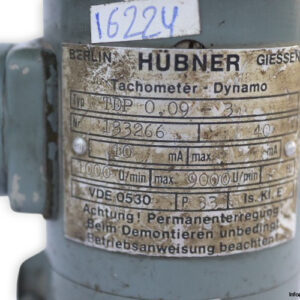

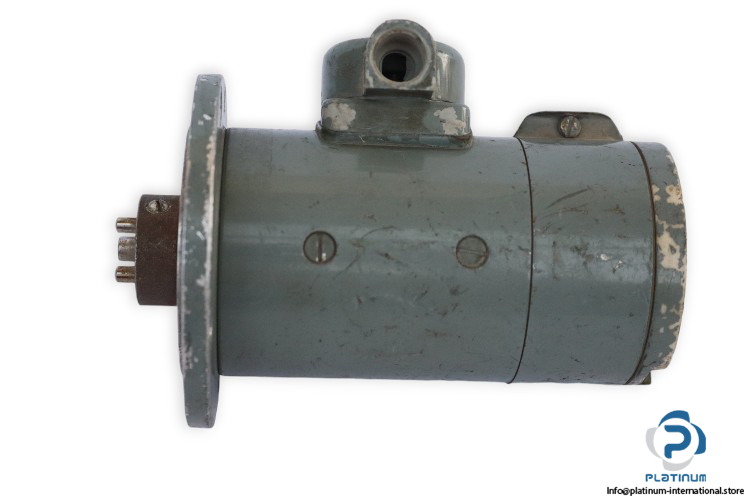

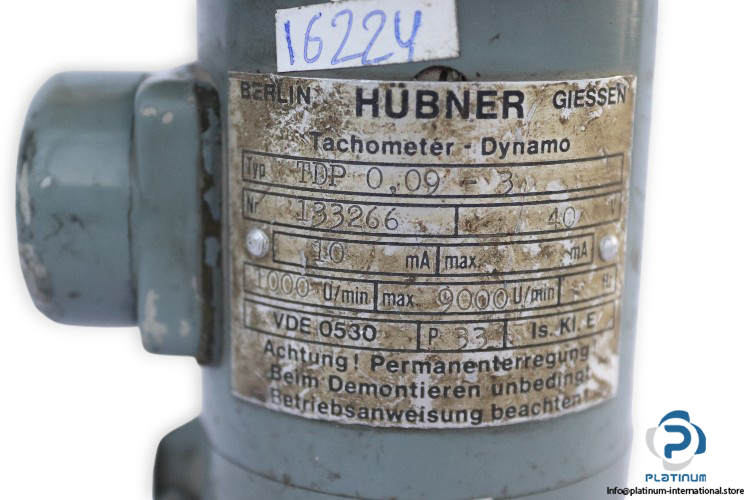

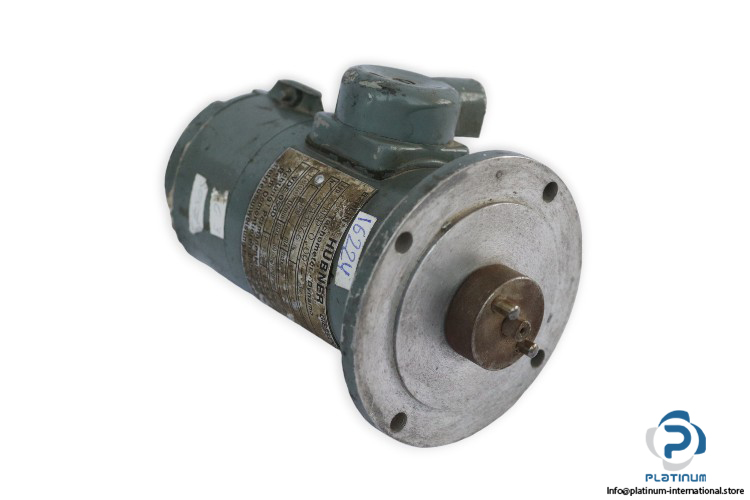

Hubner Berlin TDP 0,09 -3 Tachogenerator

Manufacturer: HUBNER BERLIN
Type: TACHO GENERATOR
Model: TDP0,09 -3
Part No.: 133266

Shaft Design: Solid shaft
Size (flange): ø85 mm
Shaft diameter: 6 mm
Open circuit voltage: 10…60 mV per rpm
Performance: 1.2 W
Max speed: 9000 min^-1
Electrical Connection: Terminal box
Protection Class: IP33
Isolation class: B
Rotor moment of inertia: 0.25 kgcm²
Operating temperature: -30…+130 °C
Material
Housing: stainless steel / plastic
Shaft: stainless steel
