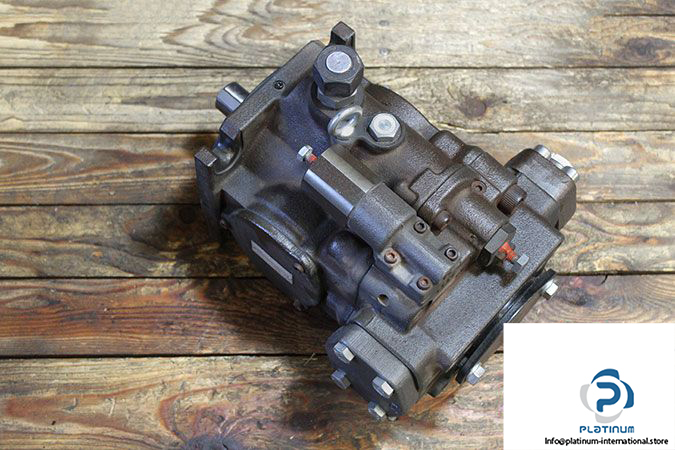

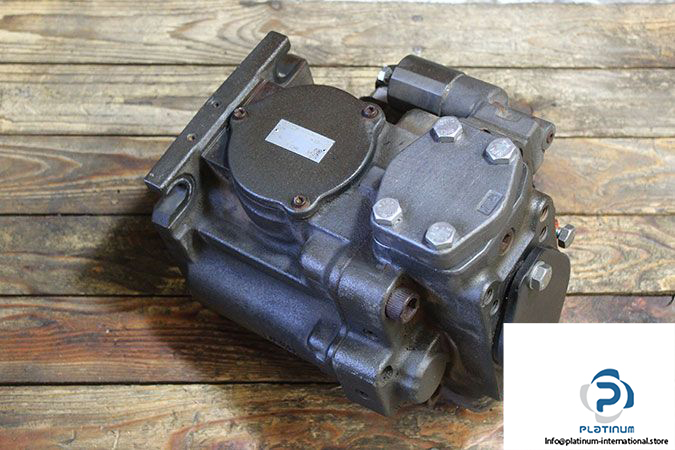

Hydac PPV100S71-FR01KK1E2D-10-4205 Axial Piston Pump

Manufacturer: Hydac

Type: Axial Piston Pump

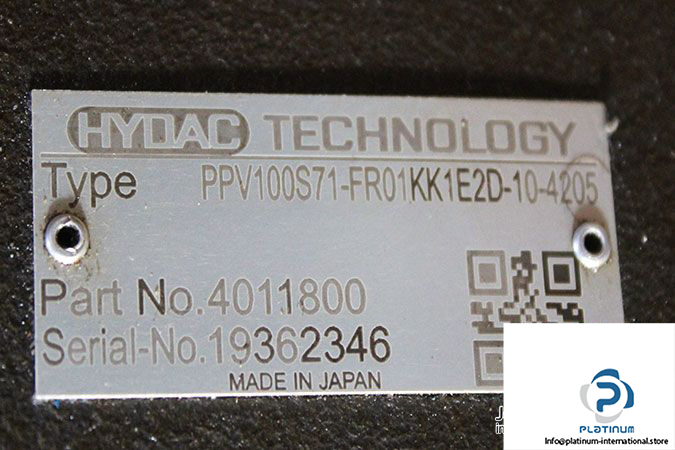

Model: PPV100S71-FR01KK1E2D-10-4205

Part No.: 4011800



Size: 100

Displacement: 105.5 cm³

Direction of Rotation: Clockwise

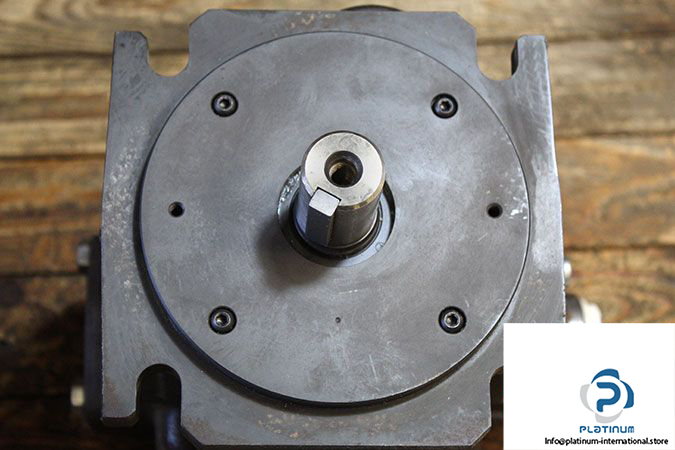

Shaft Diameter: 32 mm

Max Pressure: 350 bar

Speed Range: 1200 …. 2100 rpm

Flow Rate at 1450 rpm: 145.3 l/m

Power (1500 rpm / 315 bar): 85 Kw

Viscosity Range: 22 ….  200 mm²/s

Weight: 47.5 Kg
