I.V.B. APS 1-B-00/S53 Stepping Motor Controller
Schrittmotortreiber IVB APS1-B-00/S53 Schrittmotortreibercontroller aus der Star 2000 Serie mit 40“80 VDC Versorgung, 20 kHz Chopperfrequenz, einstellbarer Stromreduzierung und mehreren Schrittauflösungen bis zu 3200 Schritten.

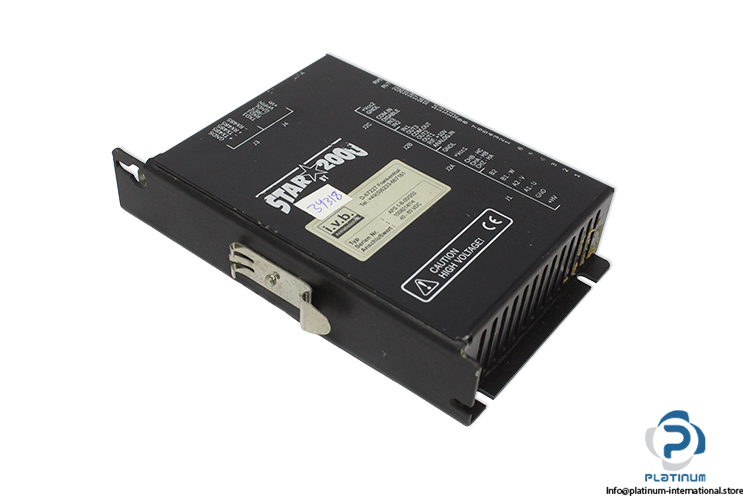

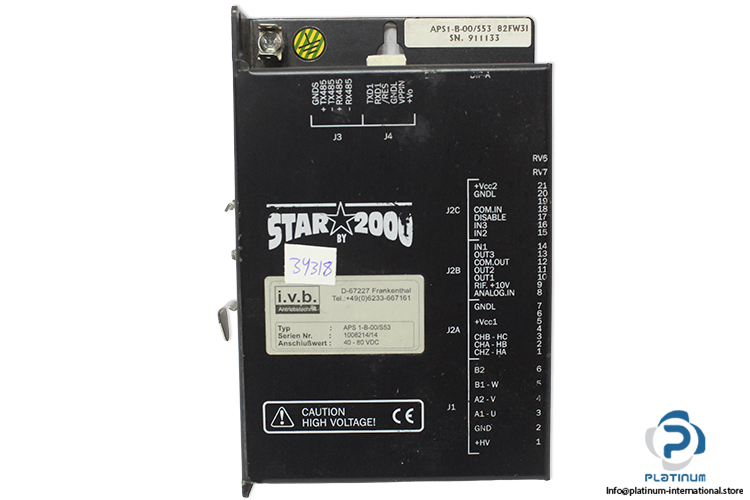

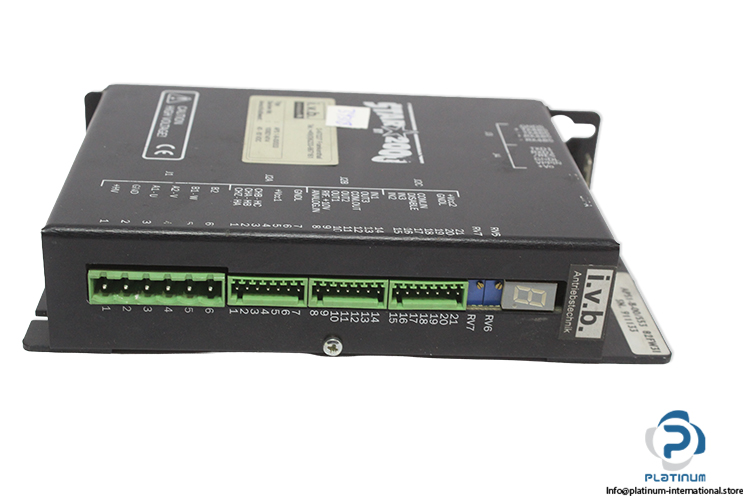

IVB APS1-B-00/S53 Stepping Motor Driver Controller “ Star 2000 Series
The IVB APS1-B-00/S53 stepping motor driver controller from the Star 2000 Series is designed for precise motion control applications. It features advanced current regulation, multiple step resolutions, and integrated protection functions to ensure reliable and stable operation in industrial automation systems.
Manufacturer: IVB
Type: Stepping Motor Driver / Controller
Model: APS1-B-00/S53
Series: Star 2000 Series

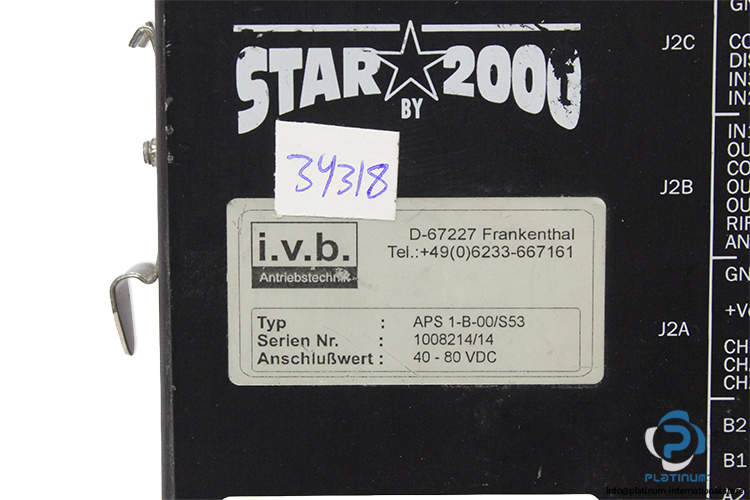

Serial Number: 1008214/14 / 911133

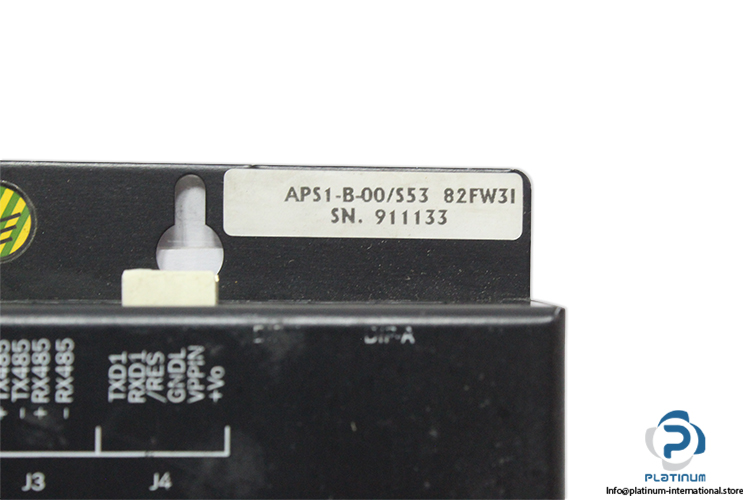

Code: APS1-B-00/S53 82FW31
| Supply Voltage | 40 “ 80 VDC |
| Chopper Frequency | 20 kHz |
| Power Stage | Protection against Phase/Phase and Phase/GND |
| Current Control | Automatic current reduction between standstill (adjustable) |
| Processor | Quick 16-Bit Processor with 128 K Byte Flash EEPROM |
| Outputs | PNP Opto-Isolated, Maximum Current 10 mA |
| Step Resolutions | 200 / 400 / 800 / 1600 / 3200 |
| Protection Class | IP 20 |
| Humidity Range | 10 to 90% Relative “ Non-Condensing |
| Ambient Temperature | 0 to 55°C |
