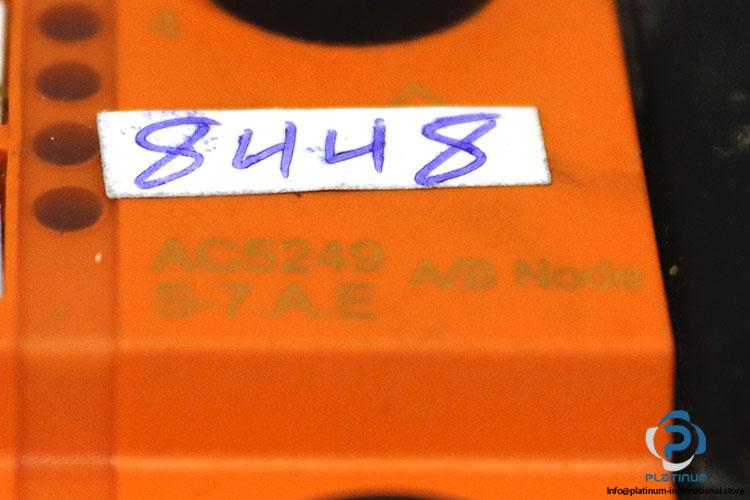

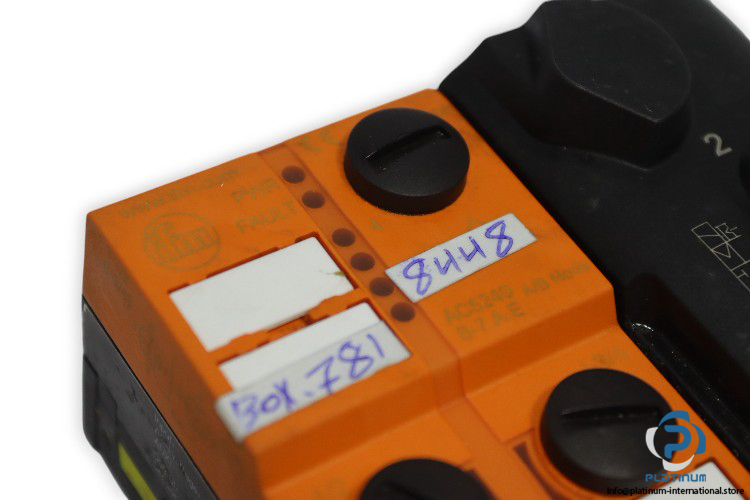

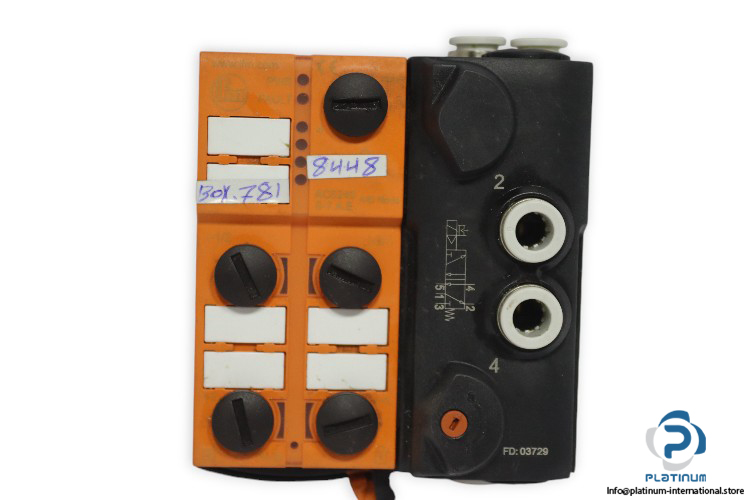

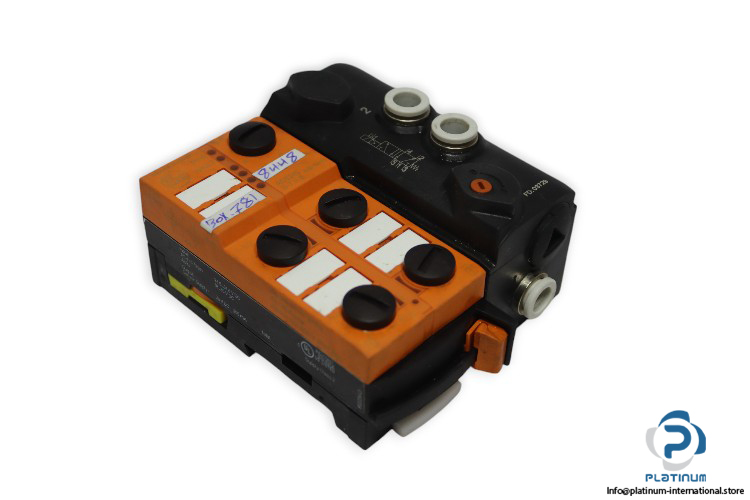

IFM AC5249 AS-Interface Airbox

Manufacturer: IFM Electronic
Type: AS-Interface Airbox
Model: AC5249
MRN: AirBox 5/2 4DI-Y IP67 AUX

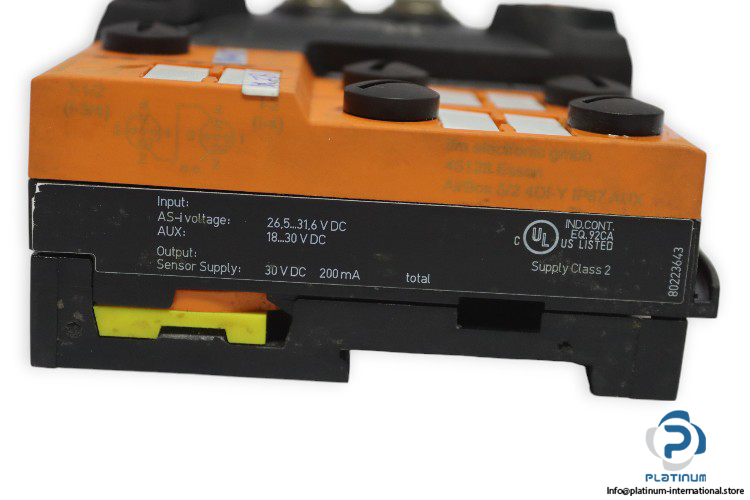

Operating voltage: 26.5…31.6 V DC
Max. current consumption from AS-i: 300 mA
Additional voltage supply: 18…30 VDC
Max. current consumption from additional supply: 10 mA
Number of digital inputs: 4
Number of pneumatic outputs: 1
Input circuit of digital inputs: PNP
Power supply: 20…30 V
Max. total current rating of inputs: 200 A
Input current High: 6…10 mA
Input current Low: 0…2 mA
Tube fittings: 8 mm
Connector: M12
